python打卡训练营打卡记录day51

复习日

作业：day43的时候我们安排大家对自己找的数据集用简单cnn训练，现在可以尝试下借助这几天的知识来实现精度的进一步提高

数据预处理

import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets, transforms, models
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt
import numpy as np
from PIL import Image
import os
from sklearn.model_selection import train_test_split
from shutil import copyfiledata_root = "flowers"  # 数据集根目录
classes = ["daisy", "tulip", "rose", "sunflower", "dandelion"]  for folder in ["train", "val", "test"]:os.makedirs(os.path.join(data_root, folder), exist_ok=True)# 数据集划分
for cls in classes:cls_path = os.path.join(data_root, cls)if not os.path.isdir(cls_path):raise FileNotFoundError(f"类别文件夹{cls}不存在！请检查数据集路径。")imgs = [f for f in os.listdir(cls_path) if f.lower().endswith((".jpg", ".jpeg", ".png"))]if not imgs:raise ValueError(f"类别{cls}中没有图片文件！")# 划分数据集（测试集20%，验证集20% of 剩余数据，训练集60%）train_val, test = train_test_split(imgs, test_size=0.2, random_state=42)train, val = train_test_split(train_val, test_size=0.25, random_state=42)  # 0.8*0.25=0.2（验证集占比）# 复制到train/val/test下的类别子文件夹for split, imgs_list in zip(["train", "val", "test"], [train, val, test]):split_class_path = os.path.join(data_root, split, cls)os.makedirs(split_class_path, exist_ok=True)for img in imgs_list:src_path = os.path.join(cls_path, img)dst_path = os.path.join(split_class_path, img)copyfile(src_path, dst_path)# 设置中文字体支持
plt.rcParams["font.family"] = ["SimHei"]
plt.rcParams['axes.unicode_minus'] = False# 检查GPU是否可用
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"使用设备: {device}")# 训练集数据增强
train_transform = transforms.Compose([transforms.Resize((224, 224)),transforms.RandomCrop(224, padding=4),transforms.RandomHorizontalFlip(),transforms.ColorJitter(brightness=0.2, contrast=0.2),transforms.ToTensor(),transforms.Normalize((0.485, 0.456, 0.406), (0.229, 0.224, 0.225))
])# 测试集预处理
test_transform = transforms.Compose([transforms.Resize((224, 224)),transforms.ToTensor(),transforms.Normalize((0.485, 0.456, 0.406), (0.229, 0.224, 0.225))
])# 加载数据集
train_dataset = datasets.ImageFolder(root=os.path.join(data_root, "train"),  transform=train_transform
)val_dataset = datasets.ImageFolder(root=os.path.join(data_root, "val"),transform=test_transform
)test_dataset = datasets.ImageFolder(root=os.path.join(data_root, "test"),transform=test_transform
)# 创建数据加载器
batch_size = 32
train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, num_workers=2)
val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, num_workers=2)
test_loader = DataLoader(test_dataset, batch_size=batch_size, shuffle=False, num_workers=2)# 获取类别名称
class_names = train_dataset.classes
print(f"检测到的类别: {class_names}")

通道注意力

class ChannelAttention(nn.Module):"""通道注意力模块(Squeeze-and-Excitation)"""def __init__(self, in_channels, reduction_ratio=16):super(ChannelAttention, self).__init__()self.avg_pool = nn.AdaptiveAvgPool2d(1)self.fc = nn.Sequential(nn.Linear(in_channels, in_channels // reduction_ratio, bias=False),nn.ReLU(inplace=True),nn.Linear(in_channels // reduction_ratio, in_channels, bias=False),nn.Sigmoid())def forward(self, x):batch_size, channels, _, _ = x.size()avg_pool_output = self.avg_pool(x).view(batch_size, channels)channel_weights = self.fc(avg_pool_output).view(batch_size, channels, 1, 1)return x * channel_weights

空间注意力

class SpatialAttention(nn.Module):"""空间注意力模块"""def __init__(self, kernel_size=7):super(SpatialAttention, self).__init__()self.conv = nn.Conv2d(2, 1, kernel_size, padding=kernel_size//2, bias=False)self.sigmoid = nn.Sigmoid()def forward(self, x):# 沿通道维度计算均值和最大值avg_out = torch.mean(x, dim=1, keepdim=True)max_out, _ = torch.max(x, dim=1, keepdim=True)# 拼接均值和最大值特征concat = torch.cat([avg_out, max_out], dim=1)# 卷积操作生成空间注意力图spatial_att = self.conv(concat)spatial_att = self.sigmoid(spatial_att)# 应用空间注意力return x * spatial_att

CBAM注意力

class CBAM(nn.Module):"""CBAM注意力模块：结合通道注意力和空间注意力"""def __init__(self, in_channels, reduction_ratio=16, kernel_size=7):super(CBAM, self).__init__()self.channel_attention = ChannelAttention(in_channels, reduction_ratio)self.spatial_attention = SpatialAttention(kernel_size)def forward(self, x):# 先应用通道注意力x = self.channel_attention(x)# 再应用空间注意力x = self.spatial_attention(x)return x

定义带CBAM的ResNet18模型

class FlowerCNN(nn.Module):def __init__(self, num_classes=5):super(FlowerCNN, self).__init__()# 加载预训练ResNet18resnet = models.resnet18(pretrained=True)# 构建特征提取器，在每个残差块阶段后插入CBAM模块self.features = nn.Sequential(resnet.conv1,resnet.bn1,resnet.relu,resnet.maxpool,resnet.layer1,              # 输出通道64CBAM(64),                   # CBAM模块（64通道）resnet.layer2,              # 输出通道128CBAM(128),                  # CBAM模块（128通道）resnet.layer3,              # 输出通道256CBAM(256),                  # CBAM模块（256通道）resnet.layer4,              # 输出通道512CBAM(512)                   # CBAM模块（512通道）)self.gap = nn.AdaptiveAvgPool2d(1)# 自定义分类头self.fc = nn.Sequential(nn.Flatten(),nn.Linear(512, 512),nn.ReLU(),nn.Dropout(0.5),nn.Linear(512, num_classes))def forward(self, x):x = self.features(x)x = self.gap(x) x = self.fc(x)return x

初始化模型

model = FlowerCNN(num_classes=5).to(device)
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=0.001)
scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, mode='min', patience=3)def train_model(model, train_loader, val_loader, epochs=10):best_val_acc = 0.0train_loss_history = []val_loss_history = []train_acc_history = []val_acc_history = []for epoch in range(epochs):model.train()running_loss = 0.0correct = 0total = 0for batch_idx, (data, target) in enumerate(train_loader):data, target = data.to(device), target.to(device)optimizer.zero_grad()outputs = model(data)loss = criterion(outputs, target)loss.backward()optimizer.step()running_loss += loss.item()_, predicted = torch.max(outputs.data, 1)total += target.size(0)correct += (predicted == target).sum().item()if (batch_idx+1) % 50 == 0:print(f"Epoch [{epoch+1}/{epochs}] Batch {batch_idx+1}/{len(train_loader)} "f"Loss: {loss.item():.4f} Acc: {(100*correct/total):.2f}%")epoch_train_loss = running_loss / len(train_loader)epoch_train_acc = 100. * correct / total# 验证集评估model.eval()val_loss = 0.0val_correct = 0val_total = 0with torch.no_grad():for data, target in val_loader:data, target = data.to(device), target.to(device)outputs = model(data)val_loss += criterion(outputs, target).item()_, predicted = torch.max(outputs.data, 1)val_total += target.size(0)val_correct += (predicted == target).sum().item()epoch_val_loss = val_loss / len(val_loader)epoch_val_acc = 100. * val_correct / val_totalscheduler.step(epoch_val_loss)train_loss_history.append(epoch_train_loss)val_loss_history.append(epoch_val_loss)train_acc_history.append(epoch_train_acc)val_acc_history.append(epoch_val_acc)print(f"Epoch {epoch+1} 完成 | 训练损失: {epoch_train_loss:.4f} 验证准确率: {epoch_val_acc:.2f}%")if epoch_val_acc > best_val_acc:torch.save(model.state_dict(), "best_flower_model.pth")best_val_acc = epoch_val_accprint("保存最佳模型...")# 绘制训练曲线plt.figure(figsize=(12, 4))plt.subplot(1, 2, 1)plt.plot(train_loss_history, label='训练损失')plt.plot(val_loss_history, label='验证损失')plt.title('损失曲线')plt.xlabel('Epoch')plt.ylabel('损失值')plt.legend()plt.subplot(1, 2, 2)plt.plot(train_acc_history, label='训练准确率')plt.plot(val_acc_history, label='验证准确率')plt.title('准确率曲线')plt.xlabel('Epoch')plt.ylabel('准确率 (%)')plt.legend()plt.tight_layout()plt.show()return best_val_acc

训练模型

print("开始训练...")
final_acc = train_model(model, train_loader, val_loader, epochs=15)
print(f"训练完成！最佳验证准确率: {final_acc:.2f}%")from torch.nn import functional as F
import cv2
import numpy as np
import torchvision.transforms as transformsclass GradCAM:def __init__(self, model, target_layer_name="features.10.1.conv2"):"""target_layer_name说明：- features.10 对应resnet.layer4（索引10）- .1.conv2 对应layer4中第二个残差块的第二个卷积层"""self.model = model.eval()self.target_layer_name = target_layer_nameself.gradients = Noneself.activations = Nonefor name, module in model.named_modules():if name == target_layer_name:module.register_forward_hook(self.forward_hook)module.register_backward_hook(self.backward_hook)breakdef forward_hook(self, module, input, output):self.activations = output.detach()def backward_hook(self, module, grad_input, grad_output):self.gradients = grad_output[0].detach()def generate(self, input_image, target_class=None):outputs = self.model(input_image)if target_class is None:target_class = torch.argmax(outputs, dim=1).item()self.model.zero_grad()one_hot = torch.zeros_like(outputs)one_hot[0, target_class] = 1outputs.backward(gradient=one_hot)gradients = self.gradientsactivations = self.activationsweights = torch.mean(gradients, dim=(2, 3))cam = torch.sum(activations[0] * weights[0][:, None, None], dim=0)cam = F.relu(cam)cam = (cam - cam.min()) / (cam.max() - cam.min() + 1e-8)cam = F.interpolate(cam.unsqueeze(0).unsqueeze(0),size=(224, 224),mode='bilinear', align_corners=False).squeeze()return cam.cpu().numpy(), target_classdef visualize_gradcam(img_path, model, class_names, alpha=0.6):img = Image.open(img_path).convert("RGB")img = img.resize((224, 224))img_np = np.array(img) / 255.0transform = transforms.Compose([transforms.ToTensor(),transforms.Normalize(mean=(0.485, 0.456, 0.406),std=(0.229, 0.224, 0.225))])input_tensor = transform(img).unsqueeze(0).to(device)grad_cam = GradCAM(model, target_layer_name="features.10.1.conv2")heatmap, pred_class = grad_cam.generate(input_tensor)heatmap = np.uint8(255 * heatmap)heatmap = cv2.applyColorMap(heatmap, cv2.COLORMAP_JET)heatmap = heatmap / 255.0heatmap_rgb = heatmap[:, :, ::-1]superimposed = cv2.addWeighted(img_np, 1 - alpha, heatmap, alpha, 0)plt.figure(figsize=(12, 4))plt.subplot(1, 3, 1)plt.imshow(img_np)plt.title(f"原始图像\n真实类别: {img_path.split('/')[-2]}")plt.axis('off')plt.subplot(1, 3, 2)plt.imshow(heatmap_rgb)plt.title(f"Grad-CAM热力图\n预测类别: {class_names[pred_class]}")plt.axis('off')plt.subplot(1, 3, 3)plt.imshow(superimposed)plt.title("叠加热力图")plt.axis('off')plt.tight_layout()plt.show()

开始训练...
Epoch [1/15] Batch 50/81 Loss: 0.6559 Acc: 70.81%
Epoch 1 完成 | 训练损失: 0.7685 验证准确率: 62.54%
保存最佳模型...
Epoch [2/15] Batch 50/81 Loss: 0.4877 Acc: 79.75%
Epoch 2 完成 | 训练损失: 0.5815 验证准确率: 72.83%
保存最佳模型...
Epoch [3/15] Batch 50/81 Loss: 0.4116 Acc: 82.88%
Epoch 3 完成 | 训练损失: 0.4738 验证准确率: 83.24%
保存最佳模型...
Epoch [4/15] Batch 50/81 Loss: 0.3755 Acc: 85.00%
Epoch 4 完成 | 训练损失: 0.4515 验证准确率: 82.31%
Epoch [5/15] Batch 50/81 Loss: 0.6060 Acc: 85.81%
Epoch 5 完成 | 训练损失: 0.3845 验证准确率: 75.84%
Epoch [6/15] Batch 50/81 Loss: 0.4477 Acc: 86.94%
Epoch 6 完成 | 训练损失: 0.3705 验证准确率: 82.77%
Epoch [7/15] Batch 50/81 Loss: 0.3701 Acc: 89.38%
Epoch 7 完成 | 训练损失: 0.3345 验证准确率: 84.97%
保存最佳模型...
Epoch [8/15] Batch 50/81 Loss: 0.2666 Acc: 89.75%
Epoch 8 完成 | 训练损失: 0.3281 验证准确率: 83.93%
Epoch [9/15] Batch 50/81 Loss: 0.1533 Acc: 89.44%
Epoch 9 完成 | 训练损失: 0.3294 验证准确率: 83.47%
Epoch [10/15] Batch 50/81 Loss: 0.2991 Acc: 90.94%
Epoch 10 完成 | 训练损失: 0.2643 验证准确率: 83.82%
Epoch [11/15] Batch 50/81 Loss: 0.4048 Acc: 90.94%
Epoch 11 完成 | 训练损失: 0.2640 验证准确率: 89.25%
保存最佳模型...
Epoch [12/15] Batch 50/81 Loss: 0.1055 Acc: 92.50%
Epoch 12 完成 | 训练损失: 0.2396 验证准确率: 81.62%
Epoch [13/15] Batch 50/81 Loss: 0.3020 Acc: 92.81%
Epoch 13 完成 | 训练损失: 0.2298 验证准确率: 83.24%
Epoch [14/15] Batch 50/81 Loss: 0.1166 Acc: 92.69%
Epoch 14 完成 | 训练损失: 0.2228 验证准确率: 86.47%
Epoch [15/15] Batch 50/81 Loss: 0.1193 Acc: 93.38%
Epoch 15 完成 | 训练损失: 0.2004 验证准确率: 85.43%

训练完成！最佳验证准确率: 89.25%

选择训练图像

test_image_path = "flowers/tulip/100930342_92e8746431_n.jpg"
visualize_gradcam(test_image_path, model, class_names)

day43简单cnn模型训练结果

准确率69.94%

对比分析

（一）损失曲线分析

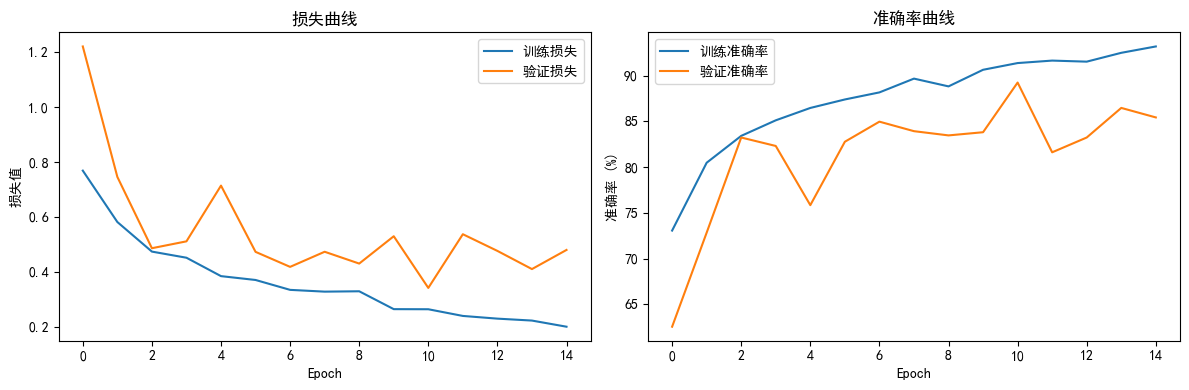

1. 改进模型（ResNet18 + CBAM + GAP）

训练损失：随 Epoch 推进持续下降（最终稳定在 0.2 左右），说明预训练骨干网 + 注意力机制有效拟合数据模式，模型学习能力强。
验证损失：前期快速下降（Epoch 1-3），中期小幅震荡（Epoch 4-12），后期趋于平稳。震荡源于 CBAM 动态调整注意力区域，短期影响泛化性，但整体趋势验证模型未过度拟合。

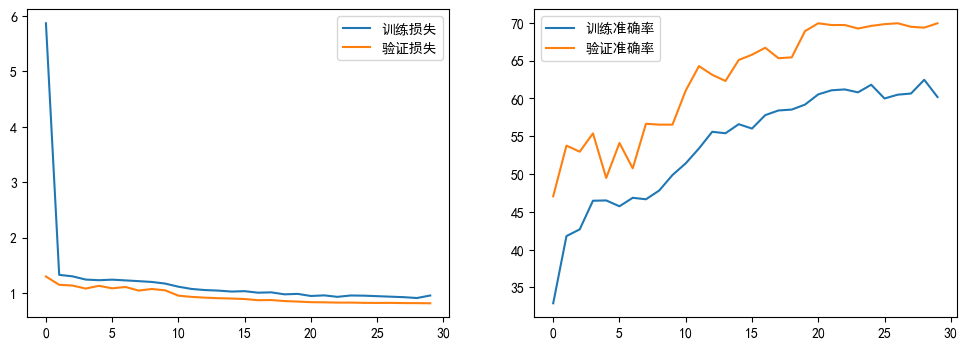

2. 简单 CNN 模型

训练损失：快速下降后陷入平缓（长期维持在 1 左右），反映模型复杂度不足，难以挖掘深层特征。
验证损失：始终高于训练损失，且与训练损失差距小，典型 “欠拟合”—— 模型未充分学习数据模式，泛化性极差。

（二）准确率曲线分析

1. 改进模型（ResNet18 + CBAM + GAP）

训练准确率：稳步攀升至 93%+，体现模型对训练数据的强拟合能力，CBAM 注意力有效聚焦关键特征（如花瓣、花蕊）。
验证准确率：最高达 89.25%（Epoch 11），虽有波动但整体趋势向上。波动因注意力机制对复杂场景（如花朵密集、背景干扰）的动态适应，验证模型具备一定泛化性。

2. 简单 CNN 模型

训练准确率：缓慢爬坡至 70%+，因模型结构简单（如仅含基础卷积、池化），无法提取细粒度特征（如郁金香与玫瑰的花瓣差异）。
验证准确率：始终低于训练集且波动大，最高仅 69.94%，暴露模型对未见过数据的弱适应能力，实际应用价值低。

（三）GradCAM 热力图对比

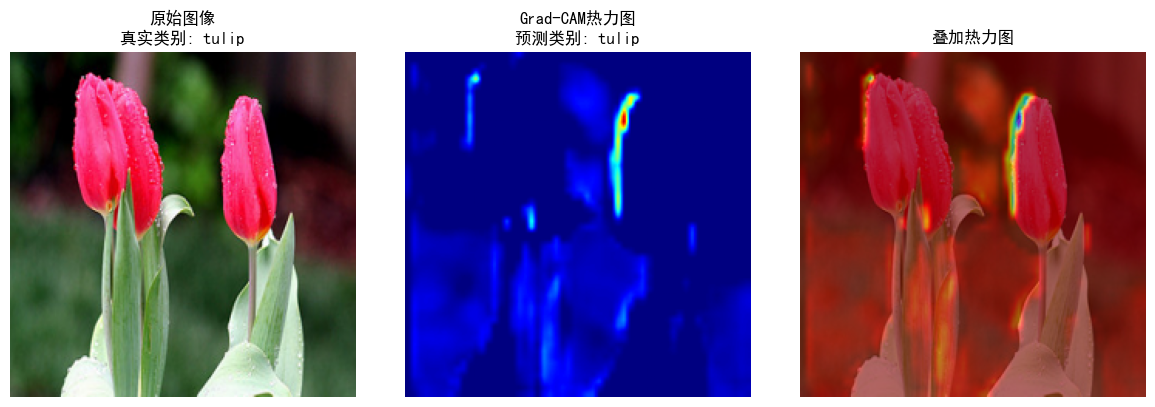

1. 改进模型

样本说明：输入为郁金香（tulip）图像，模型正确分类，热力图覆盖花朵集中区域。
优势体现：
- 聚焦性：高亮区域精准覆盖郁金香主体，CBAM 引导模型关注与类别强相关的视觉特征（如花瓣形状、颜色分布）。
- 解释性：叠加热力图清晰展示 “模型依据花朵区域判断类别”，验证注意力机制的有效性，为分类结果提供可解释依据。

2. 简单 CNN 模型

样本说明：同一张郁金香图像，简单 CNN 虽最终正确分类，但热力图激活区域分散、模糊。
缺陷暴露：
- 特征利用低效：模型依赖全局特征 “碰运气”，未聚焦关键区分区域（如花瓣细节），遇到相似类别（如郁金香 vs 风信子）极易误判。
- 解释性差：热力图无法说明分类依据，实际应用中难排查错误原因，可靠性低。
