H3CNE综合实验之五角星

H3CNE综合实验之五角星

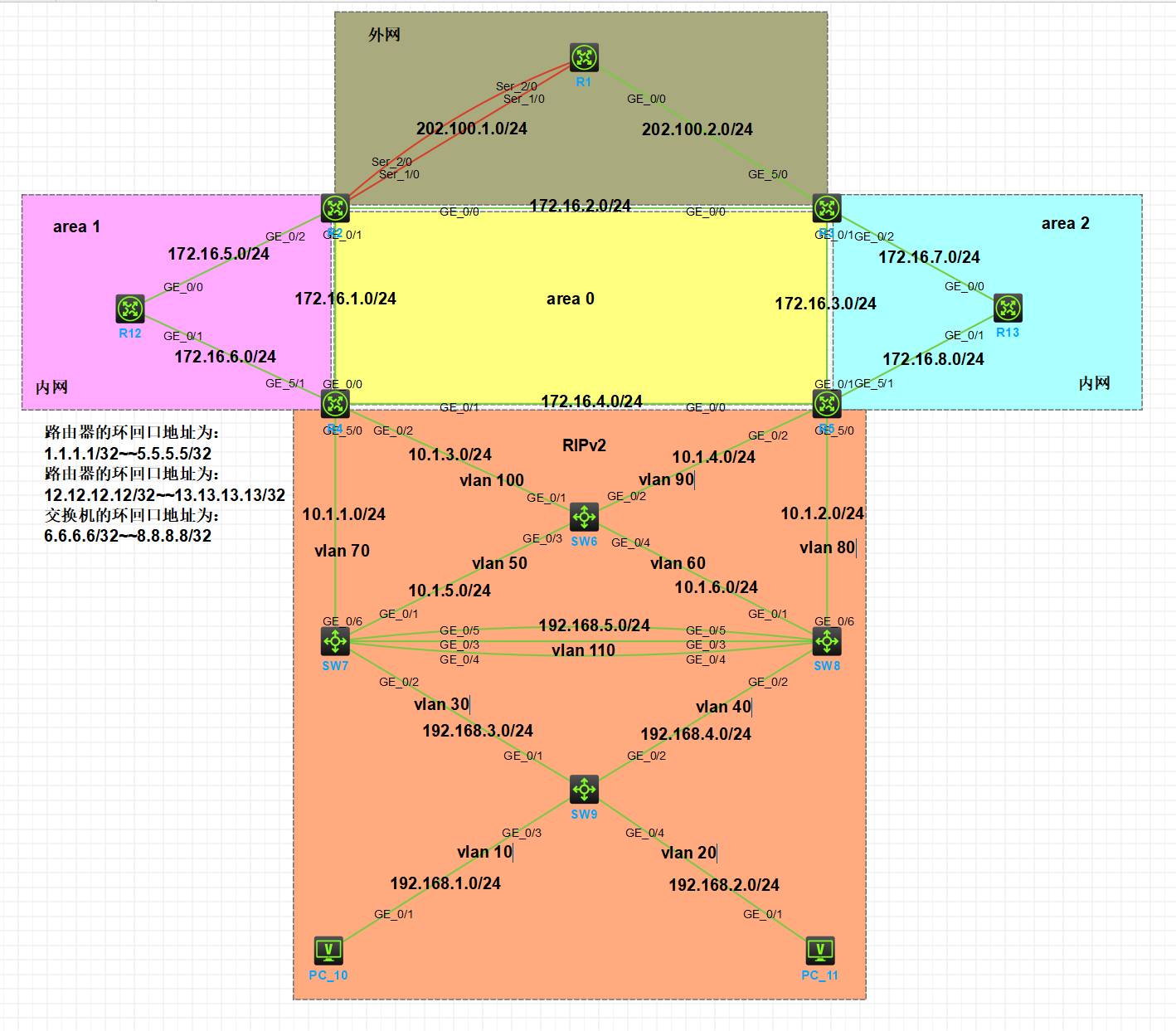

实验拓扑图

在这里插入图片描述

交换机地址规划表：
SW6G1/0/1Vlan100:10.1.3.2/24
G1/0/2Vlan90:10.1.4.2/24
G1/0/3Vlan50:10.1.5.1/24
G1/0/4Vlan60：10.1.6.1/24
SW7G1/0/1Vlan50:10.1.5.2/24
G1/0/2Vlan30:192.168.3.1/24
G1/0/6Vlan70:10.1.1.2/24
G1/0/3-5做聚合组为1Vlan110:192.168.5.1/24
SW8G1/0/1Vlan60:10.1.6.2/24
G1/0/2Vlan40:192.168.4.1/24
G1/0/6Vlan80:10.1.2.2/24
G1/0/3-5做聚合组为1Vlan110:192.168.5.2/24
SW9G1/0/1Vlan30:192.168.3.2/24
G1/0/2Vlan40:192.168.4.2/24
G1/0/3Vlan10:192.168.1.254/24
G1/0/4Vlan20:192.168.2.254/24
PC10G0/1192.168.1.1/24 网关：192.168.1.254
PC11G0/1192.168.2.1/24 网关：192.168.2.254

实验需求

  1. 按照图示配置IP地址。

  2. Sw7和sw8之间的直连链路配置链路聚合。

  3. 公司内部业务网段为vlan10和vlan20，vlan10是市场部，vlan20是技术部，要求对vlan进行命名以便区分识别；pc10属于vlan10，pc11属于vlan20，其中vlan30，vlan40，vlan50，vlan60，vlan70，vlan80，vlan90，vlan100，vlan110，vlan120，vlan130，vlan140，vlan150用于交换机之间建立rip动态路由协议及互联vlan。

  4. 所有交换机相连的端口配置为trunk，允许相关流量通过。

  5. 交换机连接pc的端口配置为边缘端口。

  6. 将sw9选举为生成树的根网桥。

  7. 在sw9上配置dhcp服务，为vlan10和20的pc动态分配IP地址、网关和dns地址，要求vlan10的网关是192.168.1.254，vlan20的网关是192.168.2.254。

  8. 按照图示区域将sw7-9之间用静态路由打通。

  9. 按照图示分区域配置ospf协议，环回口宣告进对应区域中。

  10. 按照图示区域配置rip协议，环回口宣告进对应区域中，业务网段不允许出现协议报文。

  11. 要求实现内网全网互通。

  12. R1和R2之间通过双线连接到互联网配置ppp-mp，并配置双向chap验证。

  13. 配置easy ip只有业务网段192.168.1.0/24和192.168.2.0/24的数据流可以通过R2和R3访问互联网。

1.按照图示配置IP地址（部分略）
[R1]int MP-group 1
[R1-MP-group1]ip ad 202.100.1.1 24
[R1-MP-group1]int s1/0
[R1-Serial1/0]ppp mp MP-group 1[R1-Serial1/0]int s2/0
[R1-Serial2/0]ppp mp MP-group 1
[R1-LoopBack0]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface           Physical Protocol IP address/Mask    VPN instance Description
GE0/0               up       up       202.100.2.1/24     --           --
GE0/1               down     down     --                 --           --
GE0/2               down     down     --                 --           --
GE5/0               down     down     --                 --           --
GE5/1               down     down     --                 --           --
GE6/0               down     down     --                 --           --
GE6/1               down     down     --                 --           --
Loop0               up       up(s)    1.1.1.1/32         --           --
MP1                 down     down     202.100.1.1/24     --           --
Ser1/0              up       up       --                 --           --
Ser2/0              up       up       --                 --           --
Ser3/0              down     down     --                 --           --
Ser4/0              down     down     --                 --           --

[R2]int MP-group 1
[R2-MP-group1]ip ad 202.100.1.2 24
[R2-MP-group1]int s1/0
[R2-Serial1/0]ppp mp MP-group 1
[R2-Serial1/0]int s2/0
[R2-Serial2/0]ppp mp MP-group 1
[R2-LoopBack0]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface           Physical Protocol IP address/Mask    VPN instance Description
GE0/0               up       up       172.16.2.2/24      --           --
GE0/1               up       up       172.16.1.2/24      --           --
GE0/2               up       up       172.16.5.2/24      --           --
GE5/0               down     down     --                 --           --
GE5/1               down     down     --                 --           --
GE6/0               down     down     --                 --           --
GE6/1               down     down     --                 --           --
Loop0               up       up(s)    2.2.2.2/32         --           --
MP1                 up       up       202.100.1.2/24     --           --
Ser1/0              up       up       --                 --           --
Ser2/0              up       up       --                 --           --
Ser3/0              down     down     --                 --           --
Ser4/0              down     down     --                 --           --

[R3-LoopBack0]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface           Physical Protocol IP address/Mask    VPN instance Description
GE0/0               up       up       172.16.2.3/24      --           --
GE0/1               up       up       172.16.3.3/24      --           --
GE0/2               up       up       172.16.7.3/24      --           --
GE5/0               up       up       --                 --           --
GE5/1               down     down     --                 --           --
GE6/0               down     down     --                 --           --
GE6/1               down     down     --                 --           --
Loop0               up       up(s)    3.3.3.3/24         --           --
Ser1/0              down     down     --                 --           --
Ser2/0              down     down     --                 --           --
Ser3/0              down     down     --                 --           --
Ser4/0              down     down     --                 --           --

[R4]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface           Physical Protocol IP address/Mask    VPN instance Description
GE0/0               up       up       172.16.1.4/24      --           --
GE0/1               up       up       172.16.4.4/24      --           --
GE0/2               up       up       10.1.3.4/24        --           --
GE5/0               up       up       10.1.1.4/24        --           --
GE5/1               up       up       172.16.6.4/24      --           --
GE6/0               down     down     --                 --           --
GE6/1               down     down     --                 --           --
Loop0               up       up(s)    4.4.4.4/32         --           --
Ser1/0              down     down     --                 --           --
Ser2/0              down     down     --                 --           --
Ser3/0              down     down     --                 --           --
Ser4/0              down     down     --                 --           --

[R5-LoopBack0]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface           Physical Protocol IP address/Mask    VPN instance Description
GE0/0               up       up       172.16.4.5/24      --           --
GE0/1               up       up       172.16.3.5/24      --           --
GE0/2               up       up       10.1.4.5/24        --           --
GE5/0               up       up       10.1.2.5/24        --           --
GE5/1               up       up       172.16.8.5/24      --           --
GE6/0               down     down     --                 --           --
GE6/1               down     down     --                 --           --
Loop0               up       up(s)    5.5.5.5/32         --           --
Ser1/0              down     down     --                 --           --
Ser2/0              down     down     --                 --           --
Ser3/0              down     down     --                 --           --
Ser4/0              down     down     --                 --           --

[SW6]vlan 100
[SW6-vlan100]int vlan 100
[SW6-Vlan-interface100]ip ad 10.1.3.2 24
[SW6-Vlan-interface100]vlan 90
[SW6-vlan90]int vlan 90
[SW6-Vlan-interface90]ip address 10.1.4.2 24
[SW6-Vlan-interface90]vlan 50
[SW6-vlan50]int vlan 50
[SW6-Vlan-interface50]ip ad 10.1.5.1 24
[SW6-Vlan-interface50]
[SW6-Vlan-interface50]vlan 60
[SW6-vlan60]int vlan 60
[SW6-Vlan-interface60]ip ad 10.1.6.1 24
[SW6-Vlan-interface60]quit
[SW6]int lo0
[SW6-LoopBack0]ip ad 6.6.6.6 32
[SW6-LoopBack0]quit
[SW6]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface                Physical Protocol IP Address      Description
Loop0                    up       up(s)    6.6.6.6         --
MGE0/0/0                 down     down     --              --
Vlan50                   down     down     10.1.5.1        --
Vlan60                   down     down     10.1.6.1        --
Vlan90                   down     down     10.1.4.2        --
Vlan100                  down     down     10.1.3.2        --

[SW7]vlan 50
[SW7-vlan50]int vlan 50
[SW7-Vlan-interface50]ip ad 10.1.5.2 24
[SW7-Vlan-interface50]vlan 30
[SW7-vlan30]int vlan 30
[SW7-Vlan-interface30]ip ad 192.168.3.1 24
[SW7-Vlan-interface30]vlan 70
[SW7-vlan70]int vlan 70
[SW7-Vlan-interface70]ip ad 10.1.1.2 24
[SW7-Vlan-interface70]vlan 110
[SW7-vlan110]int vlan 110
[SW7-Vlan-interface110]ip ad 192.168.5.1 24
[SW7-Vlan-interface110]quit
[SW7]int lo0
[SW7-LoopBack0]ip ad 7.7.7.7 32
[SW7-LoopBack0]
[SW7-LoopBack0]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface                Physical Protocol IP Address      Description
Loop0                    up       up(s)    7.7.7.7         --
MGE0/0/0                 down     down     --              --
Vlan30                   down     down     192.168.3.1     --
Vlan50                   down     down     10.1.5.2        --
Vlan70                   up       up       10.1.1.2        --
Vlan110                  down     down     192.168.5.1     --

[SW8]vlan 60
[SW8-vlan60]int vlan 60
[SW8-Vlan-interface60]ip ad 10.1.6.2 24
[SW8-Vlan-interface60]vlan 40
[SW8-vlan40]int vlan 40
[SW8-Vlan-interface40]ip ad 192.168.4.1 24
[SW8-Vlan-interface40]vlan 80
[SW8-vlan80]int vlan 80
[SW8-Vlan-interface80]ip ad 10.1.2.2 24
[SW8-Vlan-interface80]quit
[SW8]vlan 110
[SW8-vlan110]int vlan 110
[SW8-Vlan-interface110]ip address 192.168.5.2 24
[SW8]int lo0
[SW8-LoopBack0]ip ad 8.8.8.8 32
[SW8-LoopBack0]quit
[SW8-Vlan-interface110]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface                Physical Protocol IP Address      Description
Loop0                    up       up(s)    8.8.8.8         --
MGE0/0/0                 down     down     --              --
Vlan40                   down     down     192.168.4.1     --
Vlan60                   down     down     10.1.6.2        --
Vlan80                   down     down     10.1.2.2        --
Vlan110                  down     down     192.168.5.2     --

[SW9]int lo0
[SW9-LoopBack0]ip ad 9.9.9.9 32
[SW9-LoopBack0]quit
[SW9]vlan 30
[SW9-vlan30]int vlan 30
[SW9-Vlan-interface30]ip ad 192.168.3.2 24
[SW9-Vlan-interface30]vlan 40
[SW9-vlan40]int vlan 40
[SW9-Vlan-interface40]ip ad 192.168.4.2 24
[SW9-Vlan-interface40]vlan 10
[SW9-vlan10]int vlan 10
[SW9-Vlan-interface10]ip ad 192.168.1.254 24
[SW9-Vlan-interface10]vlan 20
[SW9-vlan20]int vlan 20
[SW9-Vlan-interface20]ip ad 192.168.2.254 24
[SW9-Vlan-interface20]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface                Physical Protocol IP Address      Description
Loop0                    up       up(s)    9.9.9.9         --
MGE0/0/0                 down     down     --              --
Vlan10                   down     down     192.168.1.254   --
Vlan20                   down     down     192.168.2.254   --
Vlan30                   down     down     192.168.3.2     --
Vlan40                   down     down     192.168.4.2     --

[R12-LoopBack0]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface           Physical Protocol IP address/Mask    VPN instance Description
GE0/0               up       up       172.16.5.12/24     --           --
GE0/1               up       up       172.16.6.12/24     --           --
GE0/2               down     down     --                 --           --
GE5/0               down     down     --                 --           --
GE5/1               down     down     --                 --           --
GE6/0               down     down     --                 --           --
GE6/1               down     down     --                 --           --
Loop0               up       up(s)    12.12.12.12/32     --           --
Ser1/0              down     down     --                 --           --
Ser2/0              down     down     --                 --           --
Ser3/0              down     down     --                 --           --
Ser4/0              down     down     --                 --           --

[R13-LoopBack0]dis ip int b
*down: administratively down
(s): spoofing  (l): loopback
Interface           Physical Protocol IP address/Mask    VPN instance Description
GE0/0               up       up       172.16.7.13/24     --           --
GE0/1               up       up       172.16.8.13/24     --           --
GE0/2               down     down     --                 --           --
GE5/0               down     down     --                 --           --
GE5/1               down     down     --                 --           --
GE6/0               down     down     --                 --           --
GE6/1               down     down     --                 --           --
Loop0               up       up(s)    13.13.13.13/32     --           --
Ser1/0              down     down     --                 --           --
Ser2/0              down     down     --                 --           --
Ser3/0              down     down     --                 --           --
Ser4/0              down     down     --                 --           --
2.SW7和SW8之间的直连链路配置链路聚合
[SW7]int Bridge-Aggregation 1
[SW7-Bridge-Aggregation1]int range g1/0/3 to g1/0/5
[SW7-if-range]port link-aggregation group 1

[SW8]int Bridge-Aggregation 1
[SW8-Bridge-Aggregation1]int range g1/0/3 to g1/0/5
[SW8-if-range]port link-aggregation group 1
3.给PC10和PC11划分vlan
[SW9]vlan 10
[SW9-vlan10]port g1/0/3
[SW9-vlan10]name shichangbu
[SW9-vlan10]vlan 20
[SW9-vlan20]port g1/0/4
[SW9-vlan20]name jishubu
4.所有交换机相连的端口配置为trunk，允许相关流量通过
[SW6]int g1/0/1
[SW6-GigabitEthernet1/0/1]port access vlan 100
[SW6-GigabitEthernet1/0/1]int g1/0/2
[SW6-GigabitEthernet1/0/2]port access vlan 90
[SW6-GigabitEthernet1/0/2]int g1/0/3
[SW6-GigabitEthernet1/0/3]port link-type trunk
[SW6-GigabitEthernet1/0/3]port trunk permit vlan all
[SW6-GigabitEthernet1/0/3]port trunk pvid vlan 50
[SW6-GigabitEthernet1/0/3]int g1/0/4
[SW6-GigabitEthernet1/0/4]port link-type trunk
[SW6-GigabitEthernet1/0/4]port trunk permit vlan all
[SW6-GigabitEthernet1/0/4]port trunk pvid vlan 60

[SW7]int g1/0/6
[SW7-GigabitEthernet1/0/6]port access vlan 70
[SW7-GigabitEthernet1/0/6]int g1/0/1
[SW7-GigabitEthernet1/0/1]port link-type trunk
[SW7-GigabitEthernet1/0/1]port trunk permit vlan all
[SW7-GigabitEthernet1/0/1]port trunk pvid vlan 50
[SW7-GigabitEthernet1/0/1]int g1/0/2
[SW7-GigabitEthernet1/0/2]port link-type trunk
[SW7-GigabitEthernet1/0/2]port trunk permit vlan all
[SW7-GigabitEthernet1/0/2]port trunk pvid vlan 30
[SW7]int Bridge-Aggregation 1
[SW7-Bridge-Aggregation1]port link-type trunk
Configuring GigabitEthernet1/0/3 done.
Configuring GigabitEthernet1/0/4 done.
Configuring GigabitEthernet1/0/5 done.
[SW7-Bridge-Aggregation1]port trunk permit vlan all
Configuring GigabitEthernet1/0/3 done.
Configuring GigabitEthernet1/0/4 done.
Configuring GigabitEthernet1/0/5 done.
[SW7-Bridge-Aggregation1]port trunk pvid vlan 110
Configuring GigabitEthernet1/0/3 done.
Configuring GigabitEthernet1/0/4 done.
Configuring GigabitEthernet1/0/5 done.
[SW7-Bridge-Aggregation1]

[SW8]int g1/0/6
[SW8-GigabitEthernet1/0/6]port access vlan 80
[SW8-GigabitEthernet1/0/6]int g1/0/1
[SW8-GigabitEthernet1/0/1]port link-type trunk
[SW8-GigabitEthernet1/0/1]port trunk permit vlan all
[SW8-GigabitEthernet1/0/1]port trunk pvid vlan 60
[SW8-GigabitEthernet1/0/1]int g1/0/2
[SW8-GigabitEthernet1/0/2]port link-type trunk
[SW8-GigabitEthernet1/0/2]port trunk permit vlan all
[SW8-GigabitEthernet1/0/2]port trunk pvid vlan 40
[SW8]int Bridge-Aggregation 1
[SW8-Bridge-Aggregation1]port link-type trunk
Configuring GigabitEthernet1/0/3 done.
Configuring GigabitEthernet1/0/4 done.
Configuring GigabitEthernet1/0/5 done.
[SW8-Bridge-Aggregation1]port trunk permit vlan all
Configuring GigabitEthernet1/0/3 done.
Configuring GigabitEthernet1/0/4 done.
Configuring GigabitEthernet1/0/5 done.
[SW8-Bridge-Aggregation1]port trunk pvid vlan 110
Configuring GigabitEthernet1/0/3 done.
Configuring GigabitEthernet1/0/4 done.
Configuring GigabitEthernet1/0/5 done.
[SW8-Bridge-Aggregation1]

[SW9]int g1/0/1
[SW9-GigabitEthernet1/0/1]port link-type trunk
[SW9-GigabitEthernet1/0/1]port trunk permit vlan all
[SW9-GigabitEthernet1/0/1]port trunk pvid vlan 30
[SW9-GigabitEthernet1/0/1]int g1/0/2
[SW9-GigabitEthernet1/0/2]port link-type trunk
[SW9-GigabitEthernet1/0/2]port trunk permit vlan all
[SW9-GigabitEthernet1/0/2]port trunk pvid vlan 40
5.交换机连接pc的端口配置为边缘端口
[SW9-GigabitEthernet1/0/2]int g1/0/3
[SW9-GigabitEthernet1/0/3]stp edg
[SW9-GigabitEthernet1/0/3]stp edged-port
[SW9-GigabitEthernet1/0/3]int g1/0/4
[SW9-GigabitEthernet1/0/4]stp edged-port
6.将sw9选举为生成树的根网桥
[SW9]stp priority 4096
[SW9]display stp brief MST ID   Port                                Role  STP State   Protection0        GigabitEthernet1/0/1                DESI  FORWARDING  NONE0        GigabitEthernet1/0/2                DESI  FORWARDING  NONE
7.在sw9上配置dhcp服务，为vlan10和20的pc动态分配IP地址、网关和dns地址，要求vlan10的网关是192.168.1.254，vlan20的网关是192.168.2.254
[SW9]dhcp server ip-pool 1
[SW9-dhcp-pool-1]network 192.168.1.0 24
[SW9-dhcp-pool-1]gateway-list 192.168.1.254
[SW9-dhcp-pool-1]dns-list 114.114.114.114
[SW9-dhcp-pool-1]quit
[SW9]dhcp server ip-pool 2
[SW9-dhcp-pool-2]network 192.168.2.0 24
[SW9-dhcp-pool-2]gateway-list 192.168.2.254
[SW9-dhcp-pool-2]dns-list 114.114.114.114
[SW9]display dhcp server ip-in-use
IP address       Client identifier/    Lease expiration      TypeHardware address
192.168.1.1      0035-6338-392e-3834-  Jul 17 18:44:25 2025  Auto(C)            3331-2e30-6130-362d-                                           4745-302f-302f-31
192.168.2.1      0035-6338-392e-3839-  Jul 17 18:44:31 2025  Auto(C)            6664-2e30-6230-362d-                                           4745-302f-302f-31

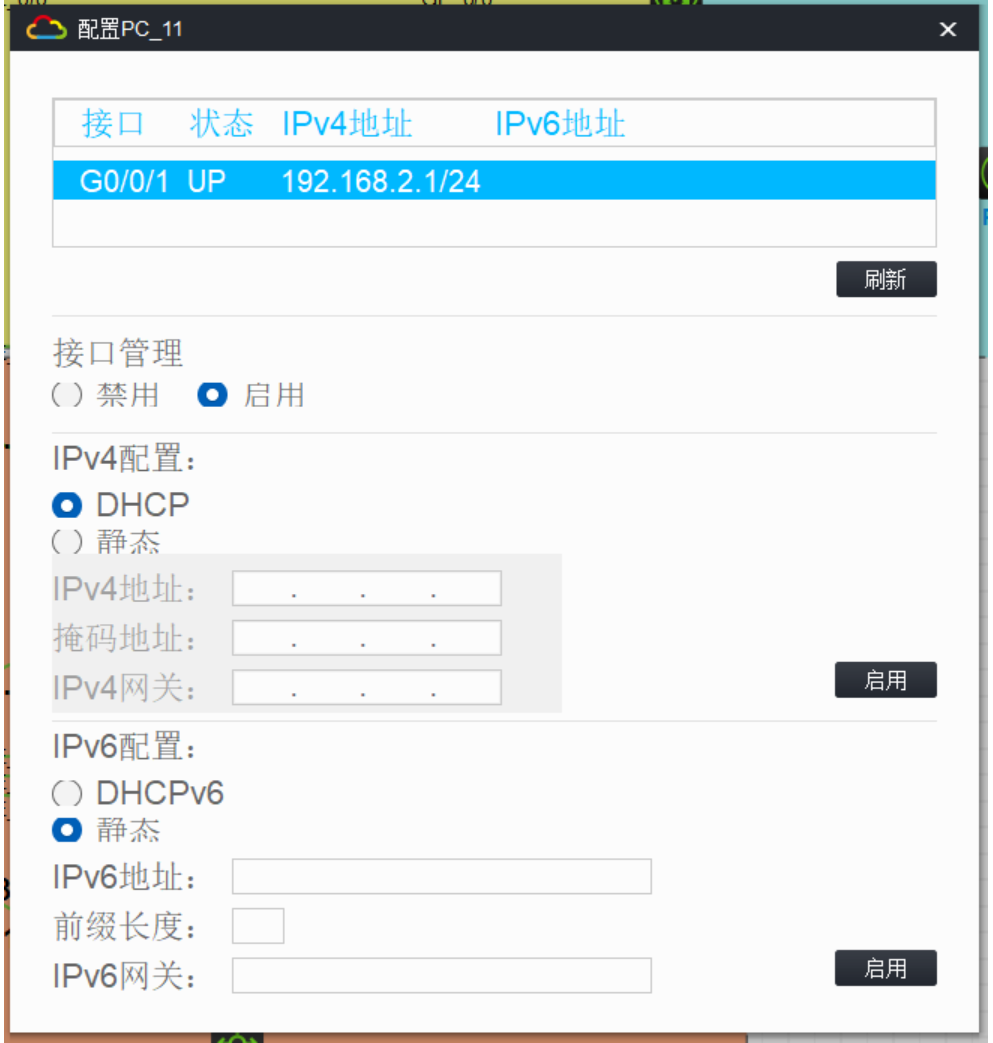

在这里插入图片描述

在这里插入图片描述

9.按照图示分区域配置ospf协议，环回口宣告进对应区域中
10.按照图示区域配置rip协议，环回口宣告进对应区域中
[R2]ospf 1 router-id 2.2.2.2
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 172.16.1.0 0.0.0.255
[R2-ospf-1-area-0.0.0.0]network 172.16.2.0 0.0.0.255
[R2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]area 1
[R2-ospf-1-area-0.0.0.1]network 172.16.5.0 0.0.0.255
[R2-ospf-1-area-0.0.0.1]quit
[R2-ospf-1]dis th
#
ospf 1 router-id 2.2.2.2area 0.0.0.0network 2.2.2.2 0.0.0.0network 172.16.1.0 0.0.0.255network 172.16.2.0 0.0.0.255area 0.0.0.1network 172.16.5.0 0.0.0.255
#
return

[R3]ospf 1 router-id 3.3.3.3
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]network 172.168.2.0 0.0.0.255
[R3-ospf-1-area-0.0.0.0]network 172.168.3.0 0.0.0.255
[R3-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
[R3-ospf-1-area-0.0.0.0]area 2
[R3-ospf-1-area-0.0.0.2]network 172.16.7.0 0.0.0.255
[R3-ospf-1-area-0.0.0.2]quit
[R3-ospf-1]dis th
#
ospf 1 router-id 3.3.3.3area 0.0.0.0network 3.3.3.3 0.0.0.0network 172.168.2.0 0.0.0.255network 172.168.3.0 0.0.0.255area 0.0.0.2network 172.16.7.0 0.0.0.255
#
return

[R4]ospf 1 router-id 4.4.4.4
[R4-ospf-1]area 0
[R4-ospf-1-area-0.0.0.0]network 172.16.1.0 0.0.0.255
[R4-ospf-1-area-0.0.0.0]network 172.16.4.0 0.0.0.255
[R4-ospf-1-area-0.0.0.0]network 4.4.4.4 0.0.0.0
[R4-ospf-1-area-0.0.0.0]area 1
[R4-ospf-1-area-0.0.0.1]network 172.16.6.0 0.0.0.255
[R4-ospf-1-area-0.0.0.1]quit
[R4-ospf-1]dis th
#
ospf 1 router-id 4.4.4.4area 0.0.0.0network 4.4.4.4 0.0.0.0network 172.16.1.0 0.0.0.255network 172.16.4.0 0.0.0.255area 0.0.0.1network 172.16.6.0 0.0.0.255
#
return
[R4-ospf-1]quit
[R4]rip 1
[R4-rip-1]undo summary
[R4-rip-1]version 2
[R4-rip-1]network 10.1.1.0
[R4-rip-1]dis th
#
rip 1undo summaryversion 2network 10.0.0.0
#
return

[R5]ospf 1 router-id 5.5.5.5
[R5-ospf-1]area 0
[R5-ospf-1-area-0.0.0.0]network 172.16.4.0 0.0.0.255
[R5-ospf-1-area-0.0.0.0]network 172.16.3.0 0.0.0.255
[R5-ospf-1-area-0.0.0.0]network 5.5.5.5 0.0.0.0
[R5-ospf-1-area-0.0.0.0]area 2
[R5-ospf-1-area-0.0.0.2]network 172.16.8.0 0.0.0.255
[R5-ospf-1-area-0.0.0.2]quit
[R5-ospf-1]dis th
#
ospf 1 router-id 5.5.5.5area 0.0.0.0network 5.5.5.5 0.0.0.0network 172.16.3.0 0.0.0.255network 172.16.4.0 0.0.0.255area 0.0.0.2network 172.16.8.0 0.0.0.255
#
return
[R5-ospf-1]quit
[R5]rip
[R5-rip-1]
[R5-rip-1]undo summary
[R5-rip-1]version 2
[R5-rip-1]network 10.0.0.0
[R5-rip-1]dis th
#
rip 1undo summaryversion 2network 10.0.0.0
#
return

[SW6]rip 1
[SW6-rip-1]undo summary
[SW6-rip-1]version 2
[SW6-rip-1]network 10.0.0.0
[SW6-rip-1]network 6.6.6.6
[SW6-rip-1]dis th
#
rip 1undo summaryversion 2network 6.0.0.0network 10.0.0.0
#
return

[SW7]rip 1
[SW7-rip-1]undo summary
[SW7-rip-1]version 2
[SW7-rip-1]network 10.0.0.0
[SW7-rip-1]network 192.168.3.0
[SW7-rip-1]network 192.168.5.0
[SW7-rip-1]network 7.7.7.7
[SW7-rip-1]dis th
#
rip 1undo summaryversion 2network 7.0.0.0network 10.0.0.0network 192.168.3.0network 192.168.5.0
#
return

[SW8]rip 1
[SW8-rip-1]undo summary
[SW8-rip-1]version 2
[SW8-rip-1]network 10.0.0.0
[SW8-rip-1]network 192.168.5.0
[SW8-rip-1]network 192.168.6.0
[SW8-rip-1]network 8.8.8.8
[SW8-rip-1]dis th
#
rip 1undo summaryversion 2network 8.0.0.0network 10.0.0.0network 192.168.5.0network 192.168.6.0
#
return

[SW9]rip 1
[SW9-rip-1]undo summary
[SW9-rip-1]version 2
[SW9-rip-1]network 192.168.1.0
[SW9-rip-1]network 192.168.2.0
[SW9-rip-1]network 192.168.3.0
[SW9-rip-1]network 192.168.4.0
[SW9-rip-1]network 9.9.9.9
[SW9-rip-1]dis th
#
rip 1undo summaryversion 2network 9.0.0.0network 192.168.1.0network 192.168.2.0network 192.168.3.0network 192.168.4.0
#
return

[R12]ospf 1 router-id 12.12.12.12
[R12-ospf-1]area 1
[R12-ospf-1-area-0.0.0.1]network 172.16.5.0 0.0.0.255
[R12-ospf-1-area-0.0.0.1]network 172.16.6.0 0.0.0.255
[R12-ospf-1-area-0.0.0.1]network 12.12.12.12 0.0.0.0
[R12-ospf-1-area-0.0.0.1]quit
[R12-ospf-1]dis th
#
ospf 1 router-id 12.12.12.12area 0.0.0.1network 12.12.12.12 0.0.0.0network 172.16.5.0 0.0.0.255network 172.16.6.0 0.0.0.255
#
return

[R13]ospf 1 router-id 13.13.13.13
[R13-ospf-1]
[R13-ospf-1]ae
[R13-ospf-1]ar
[R13-ospf-1]area 2
[R13-ospf-1-area-0.0.0.2]net
[R13-ospf-1-area-0.0.0.2]network 172.16.7.0 0.0.0.255
[R13-ospf-1-area-0.0.0.2]network 172.16.8.0 0.0.0.255
[R13-ospf-1-area-0.0.0.2]network 13.13.13.13 0.0.0.0
[R13-ospf-1-area-0.0.0.2]quit
[R13-ospf-1]dis th
#
ospf 1 router-id 13.13.13.13area 0.0.0.2network 13.13.13.13 0.0.0.0network 172.16.7.0 0.0.0.255network 172.16.8.0 0.0.0.255
#
return
进行路由引入
[R4]ospf
[R4-ospf-1]import-route rip 1
[R4-ospf-1]rip 1
[R4-rip-1]import-route ospf 1

[R5]ospf 1
[R5-ospf-1]import-route rip 1
[R5-ospf-1]rip 1
[R5-rip-1]import-route ospf 1
业务网段不允许出现协议报文
[SW9-rip-1]silent-interface vlan 10
[SW9-rip-1]silent-interface vlan 20
11.要求实现内网全网互通
<R2>ping 192.168.1.1
Ping 192.168.1.1 (192.168.1.1): 56 data bytes, press CTRL+C to break
56 bytes from 192.168.1.1: icmp_seq=0 ttl=250 time=6.581 ms
56 bytes from 192.168.1.1: icmp_seq=1 ttl=250 time=5.797 ms
56 bytes from 192.168.1.1: icmp_seq=2 ttl=250 time=3.946 ms
56 bytes from 192.168.1.1: icmp_seq=3 ttl=250 time=4.257 ms
56 bytes from 192.168.1.1: icmp_seq=4 ttl=250 time=2.901 ms--- Ping statistics for 192.168.1.1 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 2.901/4.696/6.581/1.322 ms
<R2>%Jul 16 19:18:35:004 2025 R2 PING/6/PING_STATISTICS: Ping statistics for 192.168.1.1: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 2.901/4.696/6.581/1.322 ms.<R3>ping 192.168.1.1
Ping 192.168.1.1 (192.168.1.1): 56 data bytes, press CTRL+C to break
56 bytes from 192.168.1.1: icmp_seq=0 ttl=250 time=5.560 ms
56 bytes from 192.168.1.1: icmp_seq=1 ttl=250 time=4.636 ms
56 bytes from 192.168.1.1: icmp_seq=2 ttl=250 time=7.531 ms
56 bytes from 192.168.1.1: icmp_seq=3 ttl=250 time=3.438 ms
56 bytes from 192.168.1.1: icmp_seq=4 ttl=250 time=3.127 ms--- Ping statistics for 192.168.1.1 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 3.127/4.858/7.531/1.594 ms
%Jul 16 19:16:37:797 2025 R3 PING/6/PING_STATISTICS: Ping statistics for 192.168.1.1: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 3.127/4.858/7.531/1.594 ms.<R4>ping 192.168.1.1
Ping 192.168.1.1 (192.168.1.1): 56 data bytes, press CTRL+C to break
56 bytes from 192.168.1.1: icmp_seq=0 ttl=253 time=2.397 ms
56 bytes from 192.168.1.1: icmp_seq=1 ttl=253 time=2.156 ms
56 bytes from 192.168.1.1: icmp_seq=2 ttl=253 time=3.792 ms
56 bytes from 192.168.1.1: icmp_seq=3 ttl=253 time=2.890 ms
56 bytes from 192.168.1.1: icmp_seq=4 ttl=253 time=2.528 ms--- Ping statistics for 192.168.1.1 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 2.156/2.753/3.792/0.571 ms
<R4>%Jul 16 19:24:41:993 2025 R4 PING/6/PING_STATISTICS: Ping statistics for 192.168.1.1: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 2.156/2.753/3.792/0.571 ms.

此时除R1之外都可全网互通

12.R1和R2之间通过双线连接到互联网配置ppp-mp，并配置双向chap验证
[R1]local-user stw class network
New local user added.
[R1-luser-network-stw]password simple 123456
[R1-luser-network-stw]service-type ppp
[R1-luser-network-stw]quit
[R1]int s1/0
[R1-Serial1/0]ppp authentication-mode chap
[R1-Serial1/0]ppp chap user stw
[R1-Serial1/0]int s2/0
[R1-Serial2/0]ppp authentication-mode chap
[R1-Serial2/0]ppp chap user stw

[R2]local-user stw class network
New local user added.
[R2-luser-network-stw]password simple 123456
[R2-luser-network-stw]service-type ppp
[R2-luser-network-stw]quit
[R2]int s1/0
[R2-Serial1/0]ppp authentication-mode chap
[R2-Serial1/0]ppp chap user stw
[R2-Serial1/0]int s2/0
[R2-Serial2/0]ppp authentication-mode chap
[R2-Serial2/0]ppp chap user stw
13.配置easy ip只有业务网段192.168.1.0/24和192.168.2.0/24的数据流可以通过R2和R3访问互联网
[R1]ip route-static 0.0.0.0 0 202.100.1.2
[R1]ip route-static 0.0.0.0 0 202.100.2.3

[R2]ospf 1
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 202.100.1.0 0.0.0.255

[R3]ospf 1
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]network 202.100.2.0 0.0.0.255

[R2]acl basic 2000
[R2-acl-ipv4-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[R2-acl-ipv4-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[R2]int MP-group 1
[R2-MP-group1]nat outbound 2000

[R3]acl basic 2000
[R3-acl-ipv4-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[R3-acl-ipv4-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[R3-acl-ipv4-basic-2000]quit
[R3]int g5/0
[R3-GigabitEthernet5/0]nat outbound 2000
测试效果
<R1>ping 192.168.1.1
Ping 192.168.1.1 (192.168.1.1): 56 data bytes, press CTRL+C to break
56 bytes from 192.168.1.1: icmp_seq=0 ttl=251 time=3.508 ms
56 bytes from 192.168.1.1: icmp_seq=1 ttl=251 time=2.343 ms
56 bytes from 192.168.1.1: icmp_seq=2 ttl=251 time=7.452 ms
56 bytes from 192.168.1.1: icmp_seq=3 ttl=251 time=3.752 ms
56 bytes from 192.168.1.1: icmp_seq=4 ttl=251 time=5.218 ms--- Ping statistics for 192.168.1.1 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 2.343/4.455/7.452/1.756 ms
<R1>%Jul 16 19:46:41:278 2025 R1 PING/6/PING_STATISTICS: Ping statistics for 192.168.1.1: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 2.343/4.455/7.452/1.756 ms.<R1>
<R1>ping 192.168.2.1
Ping 192.168.2.1 (192.168.2.1): 56 data bytes, press CTRL+C to break
56 bytes from 192.168.2.1: icmp_seq=0 ttl=251 time=3.734 ms
56 bytes from 192.168.2.1: icmp_seq=1 ttl=251 time=5.233 ms
56 bytes from 192.168.2.1: icmp_seq=2 ttl=251 time=4.275 ms
56 bytes from 192.168.2.1: icmp_seq=3 ttl=251 time=4.518 ms
56 bytes from 192.168.2.1: icmp_seq=4 ttl=251 time=4.158 ms--- Ping statistics for 192.168.2.1 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 3.734/4.384/5.233/0.495 ms
<R1>%Jul 16 19:46:47:532 2025 R1 PING/6/PING_STATISTICS: Ping statistics for 192.168.2.1: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 3.734/4.384/5.233/0.495 ms.

本文来自互联网用户投稿，该文观点仅代表作者本人，不代表本站立场。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。
如若转载，请注明出处：http://www.pswp.cn/diannao/91407.shtml
繁体地址，请注明出处：http://hk.pswp.cn/diannao/91407.shtml

如若内容造成侵权/违法违规/事实不符，请联系多彩编程网进行投诉反馈email:809451989@qq.com，一经查实，立即删除！

相关文章

Android EventBus使用方法与底层原理详解

Android EventBus使用方法与底层原理详解

EventBus 是什么&#xff1f; EventBus 是一个基于发布/订阅&#xff08;Publish/Subscribe&#xff09; 模式的开源库&#xff08;主要由 greenrobot 开发维护&#xff09;。它的核心目的是简化 Android 应用中不同组件&#xff08;如 Activity, Fragment, Service, Thread 等…
阅读更多...
初等数论简明教程

初等数论简明教程

初等数论简明教程 本文给出初等数论中的一些重要的定理与例题&#xff0c;证明风格采用 整除线法 与 命题节点法。 整除线法 指推理的第 nnn 步左边的字符可由前面左边的字符得到&#xff0c;右边的字符可由前面右边的字符得到&#xff0c;整除线变成了推理线&#xff0c;既少…
阅读更多...
Spring之核心容器(IoC,DI,基本操作)详解

Spring之核心容器(IoC,DI,基本操作)详解

Spring之核心容器IoC/DI/基本操作详解一、核心概念&#xff1a;IoC与DI的本质1.1 IoC&#xff08;Inversion of Control&#xff0c;控制反转&#xff09;传统开发模式&#xff08;无IoC&#xff09;IoC模式&#xff08;Spring容器管理&#xff09;1.2 DI&#xff08;Dependenc…
阅读更多...
【论文阅读】基于注意力机制的冥想脑电分类识别研究（2025）

【论文阅读】基于注意力机制的冥想脑电分类识别研究（2025）

基于注意力机制的冥想脑电分类识别研究&#x1f4a1; Meta DataTitle基于注意力机制的冥想脑电分类识别研究Authors周梓涵Pub. date2025&#x1f4dc; Research Background & Objective背景&#xff1a; 现代生活压力导致心理问题日益突出&#xff0c;冥想作为一种有效的心…
阅读更多...
GitHub 上 Star 数量前 8 的开源 Web 应用项目

GitHub 上 Star 数量前 8 的开源 Web 应用项目

原文链接&#xff1a;https://www.nocobase.com/cn/blog/github-open-source-web-applications。 近期&#xff0c;我们发布了多篇「Top GitHub Star 开源项目推荐」系列文章&#xff0c;受到了大量点赞与收藏&#xff0c;很多开发者留言表示希望能看到更多不同领域的开源工具推…
阅读更多...
FATFS文件系统原理及其移植详解

FATFS文件系统原理及其移植详解

一、FATFS简介 FATFS 是一个完全免费开源的 FAT/exFAT 文件系统模块&#xff0c;专门为小型的嵌入式系统而设计。它完全用标准 C 语言&#xff08;ANSI C C89&#xff09;编写&#xff0c;所以具有良好的硬件平台独立性&#xff0c;只需做简单的修改就可以移植到 8051、PIC、A…
阅读更多...
KubeRay 和 Ray

KubeRay 和 Ray

KubeRay 和 Ray 不是替代关系&#xff0c;而是互补的协作关系。两者在分布式计算生态中扮演不同角色&#xff0c;共同构成完整的云原生 AI 解决方案。以下是具体分析&#xff1a;&#x1f527; 1. 核心定位差异Ray 是分布式计算引擎&#xff0c;提供底层 API&#xff08;如 ray…
阅读更多...
破解轮胎仓储高密度与柔性管理难题

破解轮胎仓储高密度与柔性管理难题

轮胎作为特殊的大件异形工业品&#xff0c;其仓储管理长期面临多重挑战&#xff1a;规格型号繁杂导致SKU数量庞大&#xff0c;重型载重对货架承重提出极高要求&#xff0c;橡胶材质对防压变形、避光防老化等存储环境存在严苛标准。传统平置堆垛或普通货架方案不仅空间利用率不足…
阅读更多...
EVA series系列（上）

EVA series系列（上）

目录 一、EVA 1、概述 2、方法 二、EVA-02 1、概述 2、架构 三、EVA-CLIP 1、概述 2、方法 四、EMU 1、概述 2、架构 3、训练细节 4、评估 一、EVA 1、概述 为探寻大规模表征学习任务的MIM预训练任务在ViT基础上扩展到1B参数量规模&#xff0c;结合10M级别&am…
阅读更多...
ABP VNext + EF Core 二级缓存：提升查询性能

ABP VNext + EF Core 二级缓存：提升查询性能

ABP VNext EF Core 二级缓存&#xff1a;提升查询性能 &#x1f680; &#x1f4da; 目录ABP VNext EF Core 二级缓存&#xff1a;提升查询性能 &#x1f680;引言 &#x1f680;一、环境与依赖 &#x1f6e0;️二、集成步骤 ⚙️2.1 安装 NuGet 包2.2 注册缓存服务与拦截器2…
阅读更多...
3.1k star！推荐一款开源基于AI实现的浏览器自动化插件工具 ！

3.1k star！推荐一款开源基于AI实现的浏览器自动化插件工具 ！

大家好&#xff01;今天&#xff0c;我要给大家介绍一款超实用的开源工具——Chrome MCP Server&#xff01;这款工具不仅能大幅提升我们的工作效率&#xff0c;还能让AI助手&#xff08;如Claude&#xff09;直接操控浏览器&#xff0c;实现自动化操作、内容分析等强大功能。 …
阅读更多...
关于 OpenAI 的反思

关于 OpenAI 的反思

每周跟踪AI热点新闻动向和震撼发展 想要探索生成式人工智能的前沿进展吗&#xff1f;订阅我们的简报&#xff0c;深入解析最新的技术突破、实际应用案例和未来的趋势。与全球数同行一同&#xff0c;从行业内部的深度分析和实用指南中受益。不要错过这个机会&#xff0c;成为AI领…
阅读更多...
Python爬虫库性能与选型对比

Python爬虫库性能与选型对比

Python常用爬虫库的优势对比。这是一个非常实用的问题&#xff0c;很多Python开发者都会面临选择合适爬虫工具的困惑。我根据网络很多搜索结果&#xff0c;整理出这些信息&#xff0c;为用户提供一个全面且清晰的对比分析。以下是Python中常用爬虫库的核心优势对比及选型建议&a…
阅读更多...
NAT作业

NAT作业

拓扑图 实验要求 1.按照图示配置IP地址&#xff0c;公网地址100.1.1.1/24..较网“说过?,使“掩入到互联网&#xff0c;私服究的不到公的&#xff0c;使阳接入无三。.私网A通过NAPT&#xff0c;使R1接入到互联网&#xff0c;私网B通过EASY,IP&#xff0c;使R3接入到互联网实验思…
阅读更多...
JAVA进阶--JVM

JAVA进阶--JVM

一.JVM的概述java语言有跨平台特点, 写一次java程序,可以在不同的平台上运行.(JVM虚拟机的作用)前提条件: 在不同的平台上安装不同的虚拟机(虚拟机就是一个翻译).java--->.class--->不同的虚拟机--->机器码1.jvm作用:负责将字节码翻译为机器码, 管理运行时内存2.jvm的…
阅读更多...
基于Alpine构建MySQL镜像

基于Alpine构建MySQL镜像

文章目录基于Alpine构建MySQL镜像一、基础镜像选择与初始化1. 基础镜像选型2. 系统初始化二、核心配置构建1. 目录与权限配置2. 配置文件优化三、安全增强配置1. 密码策略强化2. 非root运行四、数据持久化与启动配置1. 数据卷声明2. 入口脚本优化五、完整Dockerfile示例六、关键…
阅读更多...
Alamofire 网络请求全流解析，通俗易懂

Alamofire 网络请求全流解析，通俗易懂

Alamofire 网络请求全流程解析&#xff1a;从发起请求到处理响应 一、请求发起阶段&#xff1a;准备你的"快递" 1. 你告诉Alamofire要发什么"快递" // 就像告诉快递员&#xff1a;"我要寄一个包裹给https://api.example.com" AF.request("h…
阅读更多...
链路聚合技术

链路聚合技术

链路聚合技术 链路聚合概述及应用场景 概述 链路聚合是把多条物理链路聚合在一起&#xff0c;形成一条逻辑链路。应用在交换机、路由器、服务器间链路&#xff0c;注意了&#xff0c;主机上面不能用链路聚合技术分为三层链路聚合和二层链路聚合链路聚合的作用 增加链路带宽提供…
阅读更多...
SpringCloud之Zuul

SpringCloud之Zuul

SpringCloud之Zuul 推荐参考&#xff1a;https://www.springcloud.cc/spring-cloud-dalston.html#_router_and_filter_zuul 1. 什么是Zuul Spring Cloud Zuul 是 Netflix 提供的微服务网关核心组件&#xff0c;作为统一的 API 入口&#xff0c;承担请求路由、过滤、安全控制等…
阅读更多...
低精度定时器 (timer_list) 和 高精度定时器 (hrtimer)

低精度定时器 (timer_list) 和 高精度定时器 (hrtimer)

Linux 内核提供了两种主要类型的定时器&#xff0c;以满足不同的时间精度需求&#xff1a;低精度定时器 (timer_list) 和 高精度定时器 (hrtimer)。它们各有特点和适用场景。下面&#xff0c;我将分别提供它们在内核代码中的简化使用示例。1. 低精度定时器 (timer_list) 示例ti…
阅读更多...
最新文章

Copyright @ 2022~2023
