1.ArrayList的缺陷
通过篇章四,我们已经熟悉了ArrayList的使用,并且进行了简单模拟实现。通过源码知道,ArrayList底层使用数组来存储元素。
那这样会出现什么问题呢?
由于其底层是一段连续空间,当在ArrayList任意位置插入或者删除元素时,就需要将后序元素整体往前或者往后搬移,时间复杂度为O(n),效率比较低。因此ArrayList不适合做任意位置插入和删除比较多的场景。因此:java集合中又引入了LinkedList,即链表结构。
2. 链表
2.1 链表的概念及结构

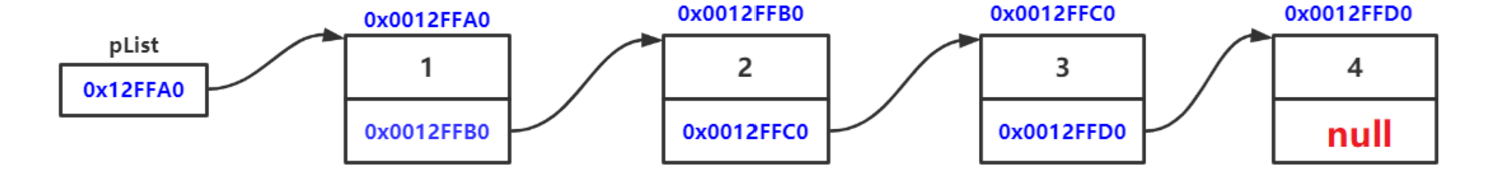

链表是一种 物理存储结构上非连续 存储结构,数据元素的 逻辑顺序 是通过链表中的 引用链接 次序实现的。
注意:
1.从上图可看出,链式结构在逻辑上是连续的,但是在物理上不一定连续
2.现实中的结点一般都是从堆上申请出来的
3.从堆上申请的空间,是按照一定的策略来分配的,两次申请的空间可能连续,也可能不连续
2.2 链表结构
实际中链表的结构非常多样,以下情况组合起来就有8种链表结构:

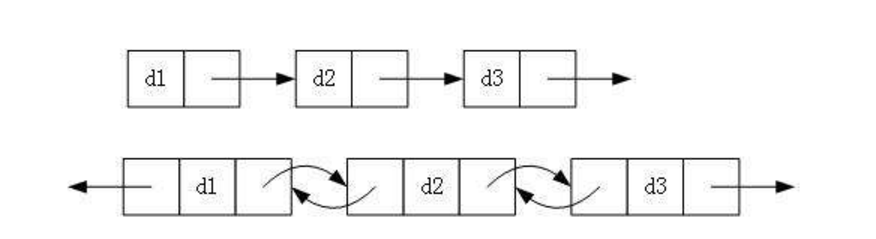

1. 单向或者双向

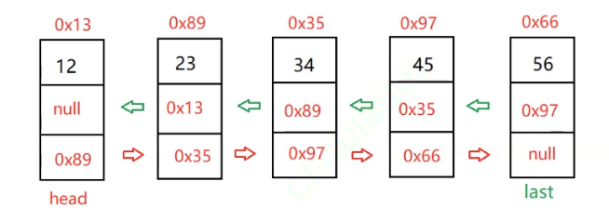

什么是双向?

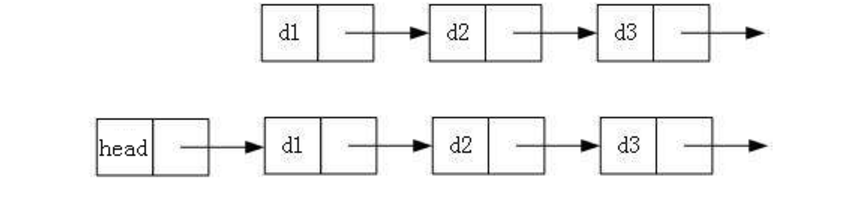

2.带头或者不带头

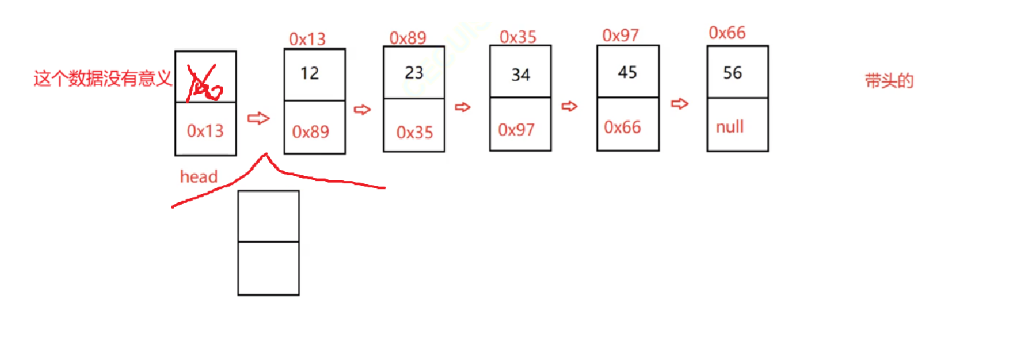

什么是带头?
什么是不带头?
3.循环或者非循环

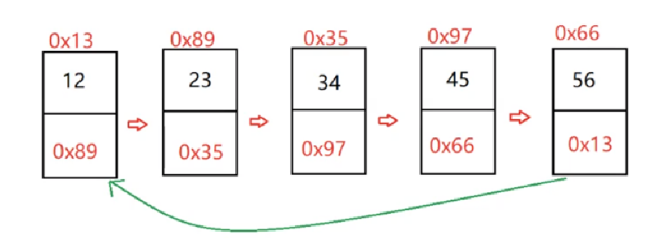

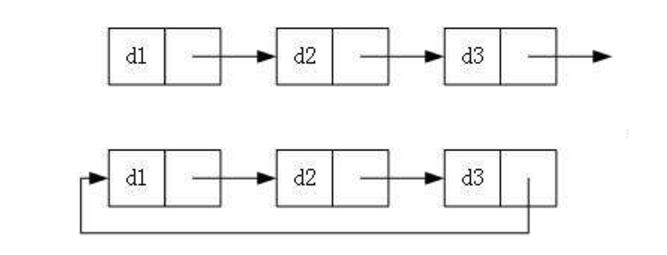

什么是循环?

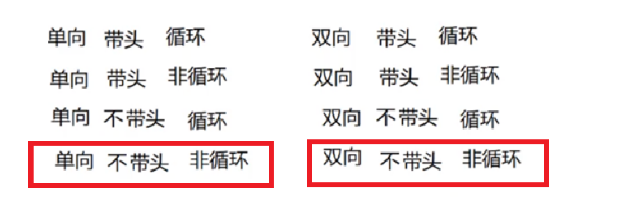

组合成的 8种链表结构:
虽然有这么多的链表的结构,但是我们重点掌握两种:
1. 无头单向非循环链表:结构简单,一般不会单独用来存数据。实际中更多是作为其他数据结构的子结构,如哈希桶、图的邻接表等等。
2. 无头双向非循环链表:在Java的集合框架库中LinkedList底层实现就是无头双向循环链表。
2.3 链表的实现
1.完整代码
/*** Created with IntelliJ IDEA* Description 无头单向非循环链表实现* User: 王杰* Date: 2025-05-26* Time: 20:33*/
public class MySingleList implements IList{static class ListNode {public int val;public ListNode next;public ListNode(int val) {this.val = val;}}public ListNode head;// 创建链表public void createList() {ListNode node1 = new ListNode(12);ListNode node2 = new ListNode(23);ListNode node3 = new ListNode(34);ListNode node4 = new ListNode(45);ListNode node5 = new ListNode(56);node1.next = node2;node2.next = node3;node3.next = node4;node4.next = node5;this.head = node1;}// 显示方法@Overridepublic void display() {ListNode cur = head;while (cur != null) {System.out.print(cur.val + " ");cur = cur.next;}}// 链表大小@Overridepublic int size() {int len = 0;ListNode cur = head;while (cur != null) {len++;cur = cur.next;}return len;}// 链表是否存在 key 值@Overridepublic boolean contains(int key) {ListNode cur = head;while (cur != null) {if (cur.val == key) {return true;}cur = cur.next;}return false;}// 头插法@Overridepublic void addFirst(int data) {ListNode node = new ListNode(data);node.next = head;head = node;}// 尾插法@Overridepublic void addLast(int data) {ListNode node = new ListNode(data);// 一个节点都没有if (head == null) {head = node;return;}// 找尾巴ListNode cur = head;while (cur != null) {if (cur.next == null) {cur.next = node;return;}cur = cur.next;}}//中间插入@Overridepublic void addIndex(int index, int data) {int len = size();if (index < 0 || index > len) {System.out.println("index位置不存在");return;}if (index == 0) {addFirst(data);return;}if (index == len) {addLast(data);return;}// 中间插入ListNode cur = head;if (index - 1 != 0) {cur = cur.next;index--;}ListNode node = new ListNode(data);// 所有的插入 优先 绑定后边node.next = cur.next;cur.next = node;}// 删除 key值 节点@Overridepublic void remove(int key) {if (head == null) {return;}// 删除头节点if (head.val == key) {head = head.next;return;}ListNode cur = findNodeOfKey(key);if (cur == null) {return;}ListNode del = cur.next;cur.next = del.next;}private ListNode findNodeOfKey(int key) {ListNode cur = head;while (cur.next != null) {if (cur.next.val == key) {return cur;}cur = cur.next;}return null;}// 删除 所有key值 节点@Overridepublic void removeAllKey(int key) {if (head == null) {return;}ListNode prev = head;ListNode cur = head.next;while (cur != null) {if (cur.val == key) {prev.next = cur.next;cur = cur.next;}else {prev = cur;cur = cur.next;}}if (head.val == key) {head = head.next;}}@Overridepublic void clear() {ListNode cur = head;while (cur != null) {ListNode curNext = cur.next;cur.next = null;cur = curNext;}head = null;}}

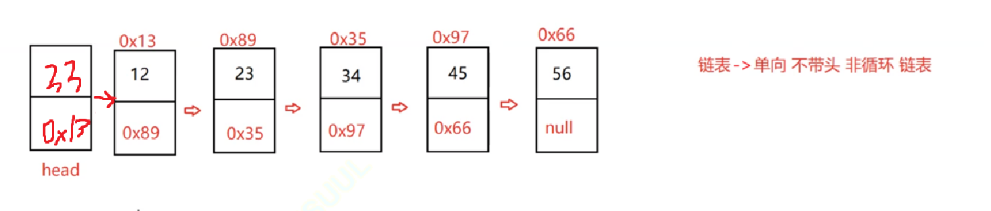

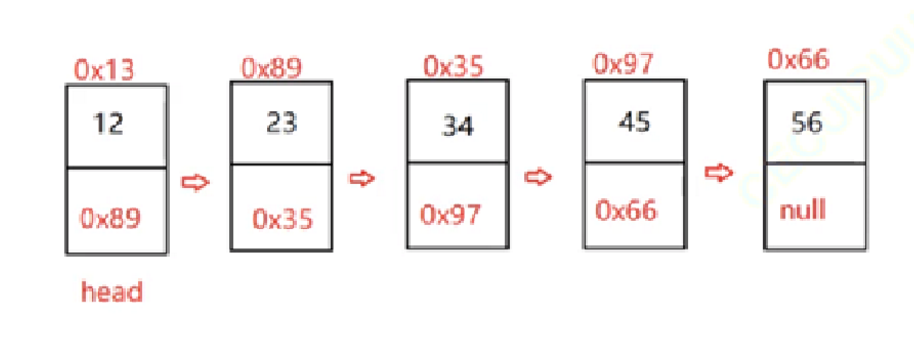

2.图解

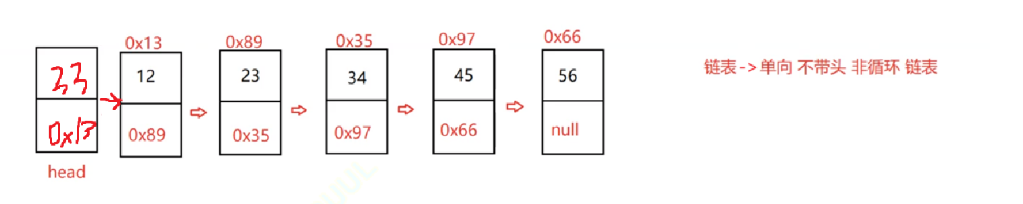

单向不带头非循环链表:

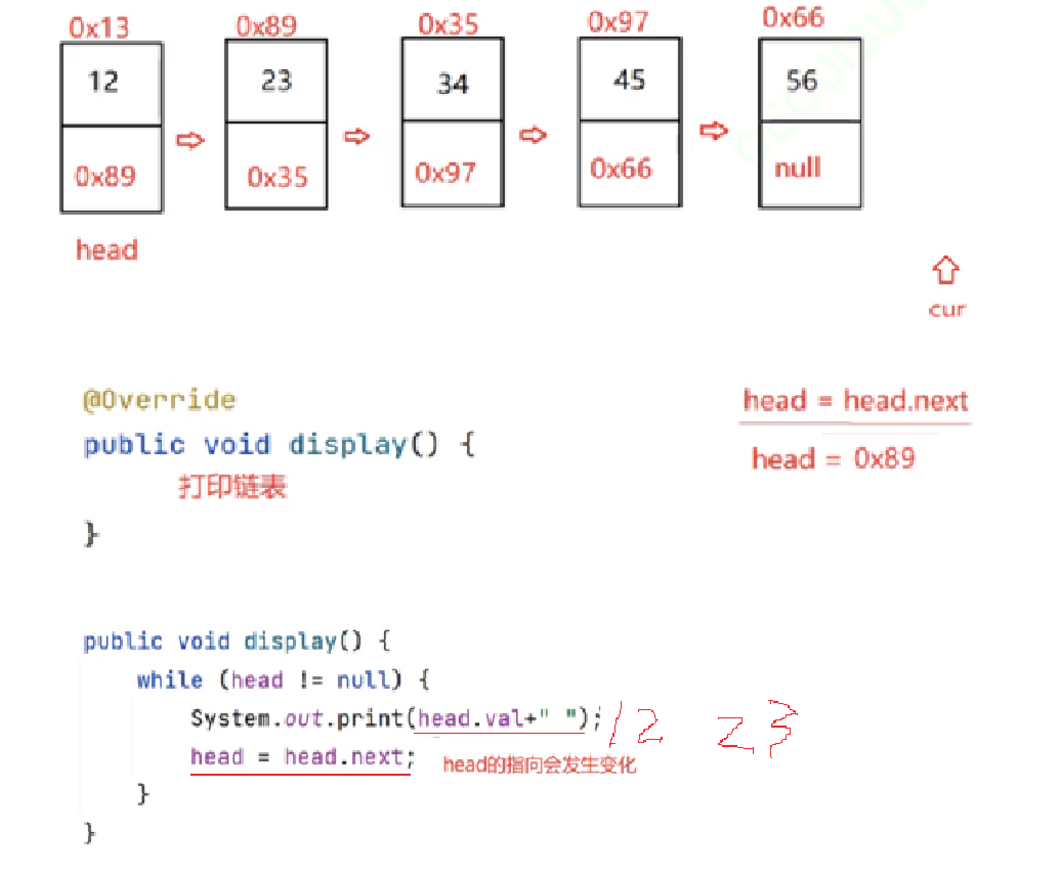

3.显示方法
// 显示方法
@Override
public void display() {ListNode cur = head;while (cur != null) {System.out.print(cur.val + " ");cur = cur.next;}
}
4.链表大小
// 链表大小@Overridepublic int size() {int len = 0;ListNode cur = head;while (cur != null) {len++;cur = cur.next;}return len;}

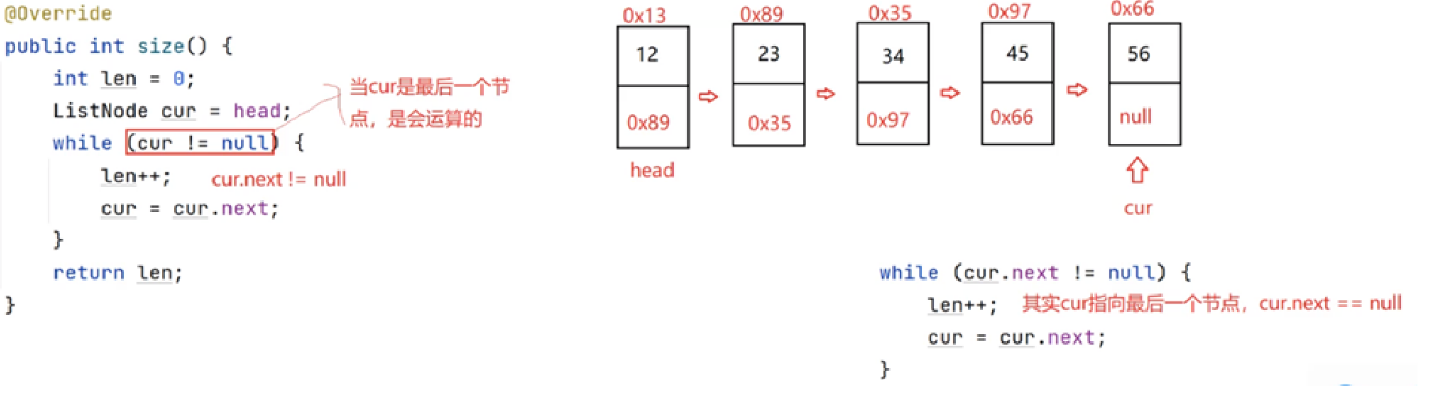

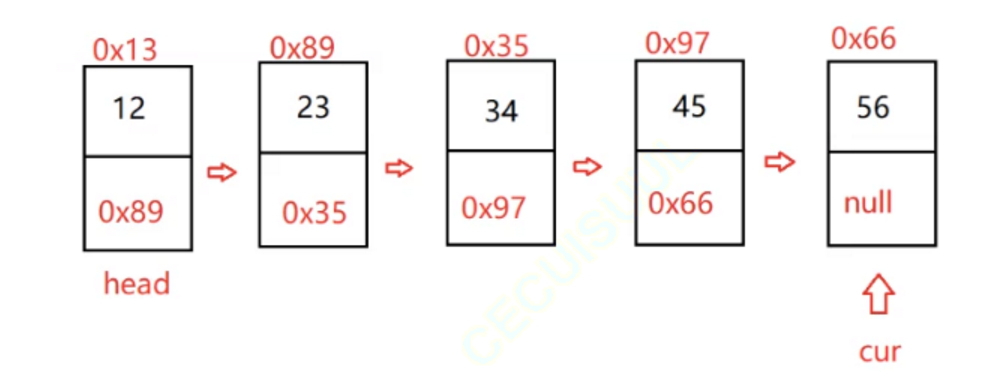

实现到这里,我们需要掌握的是:
1.ListNode cur = head;
此处申请了临时变量,因为数据存储在堆空间,而且 cur 也指向链表,所以改变有效。同时 此处也是为了不改变 head 的位置,因为后续要用head找到该链表,如果head位置变动了,就找不到该链表了。
2.cur != null;
此处最后一个节点,是会运算的。最后,cur指向的是最后一个节点的下一个节点,也就是 null;
3.cur.next != null;
此处最后一个节点,是不会运算的。最后,cur指向的是最后一个节点。
5. 链表是否存在 key 值
// 链表是否存在 key 值@Overridepublic boolean contains(int key) {ListNode cur = head;while (cur != null) {if (cur.val == key) {return true;}cur = cur.next;}return false;}

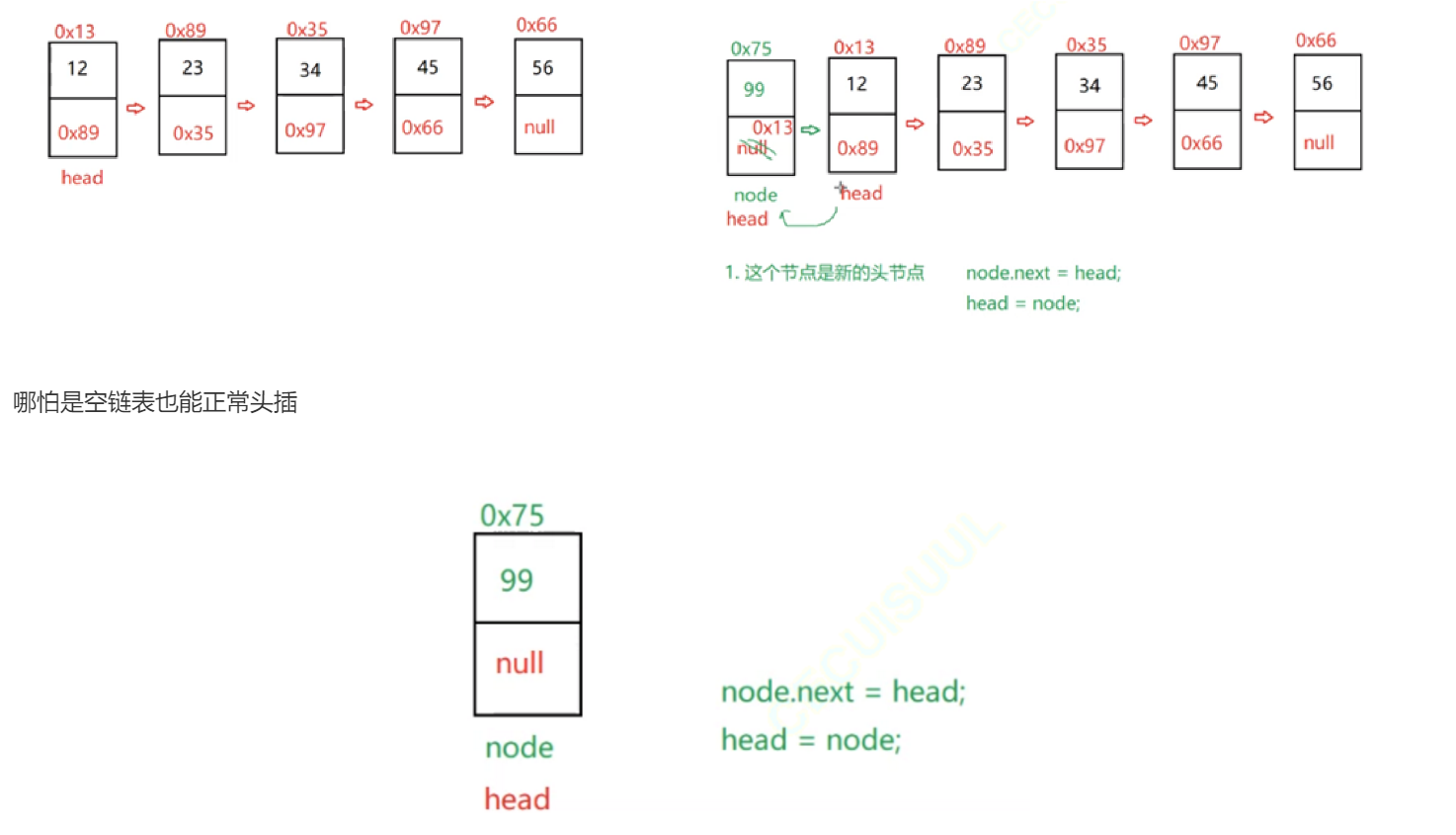

6.头插法
// 头插法@Overridepublic void addFirst(int data) {ListNode node = new ListNode(data);node.next = head;head = node;}

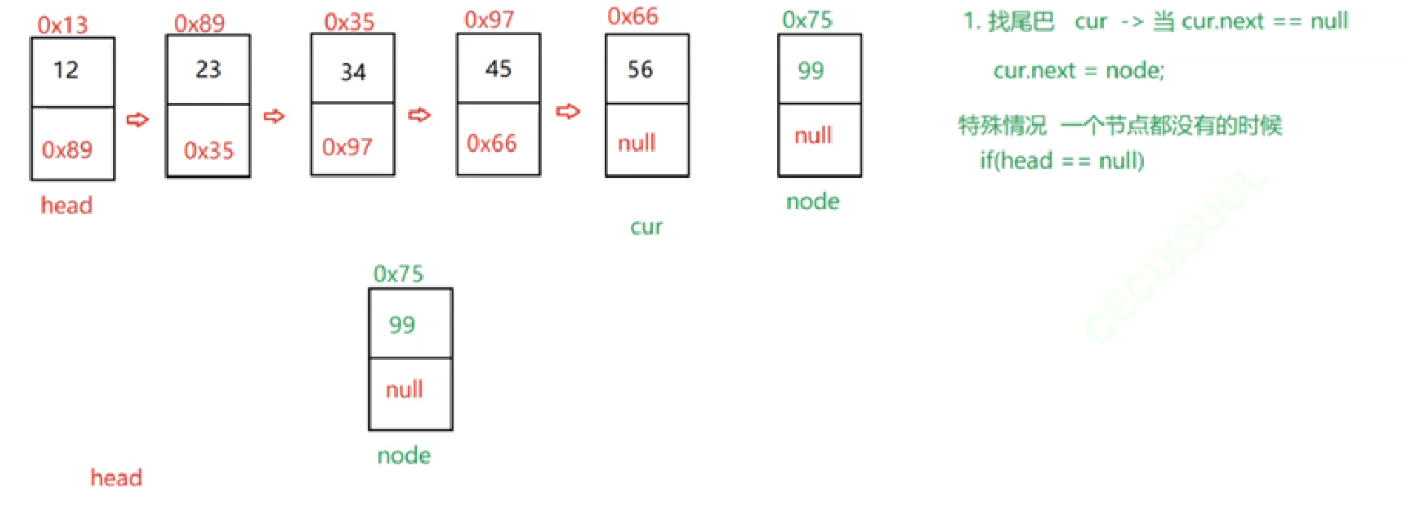

7.尾插法
// 尾插法@Overridepublic void addLast(int data) {ListNode node = new ListNode(data);// 一个节点都没有if (head == null) {head = node;return;}// 找尾巴ListNode cur = head;while (cur != null) {if (cur.next == null) {cur.next = node;return;}cur = cur.next;}}

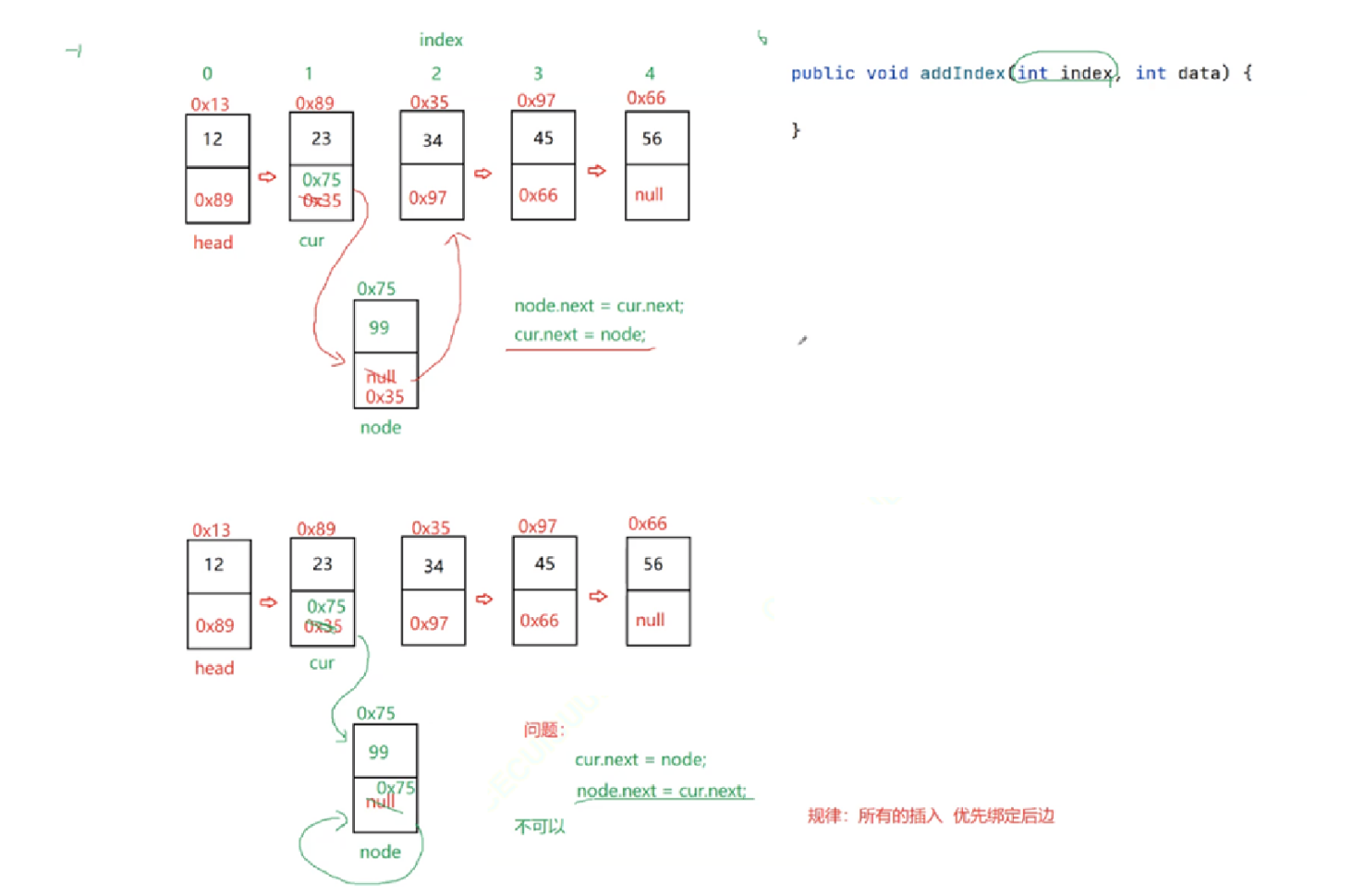

8.中间插入
//中间插入@Overridepublic void addIndex(int index, int data) {int len = size();if (index < 0 || index > len) {System.out.println("index位置不存在");return;}if (index == 0) {addFirst(data);return;}if (index == len) {addLast(data);}// 中间插入ListNode cur = head;if (index - 1 != 0) {cur = cur.next;index--;}ListNode node = new ListNode(data);// 所有的插入 优先 绑定后边node.next = cur.next;cur.next = node;}
注意:
1.此处中间插入,关键是找到 要 插入的位置 的 前一个位置。
2.要牢记 所有的插入 优先 绑定后边

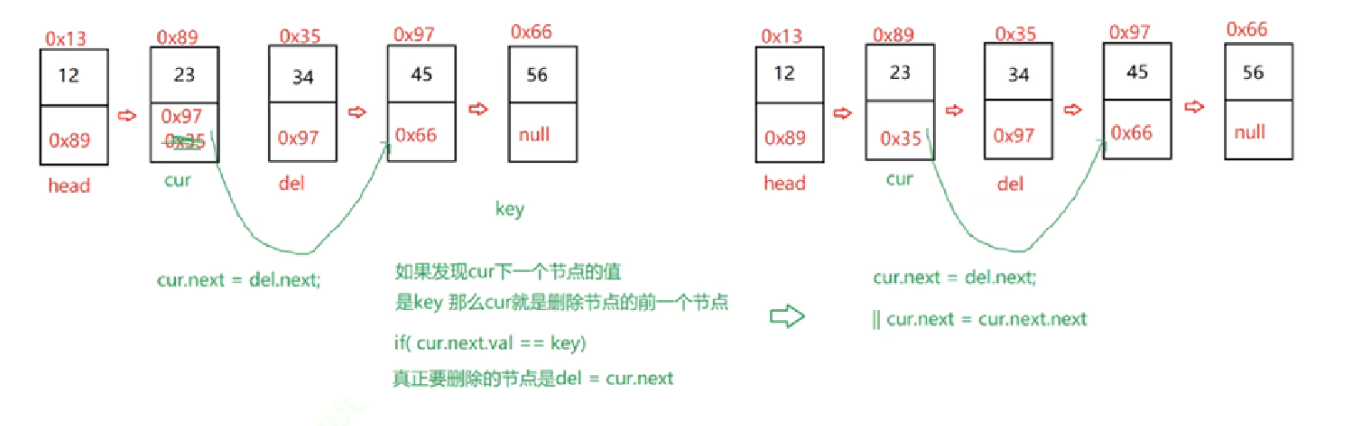

9.删除key值节点
// 删除 key值 节点@Overridepublic void remove(int key) {if (head == null) {return;}// 删除头节点if (head.val == key) {head = head.next;return;}ListNode cur = findNodeOfKey(key);if (cur == null) {return;}ListNode del = cur.next;cur.next = del.next;}private ListNode findNodeOfKey(int key) {ListNode cur = head;while (cur.next != null) {if (cur.next.val == key) {return cur;}cur = cur.next;}return null;}
注意:
找到 要删除的节点 的前一个节点
这一思路在单链表中很关键

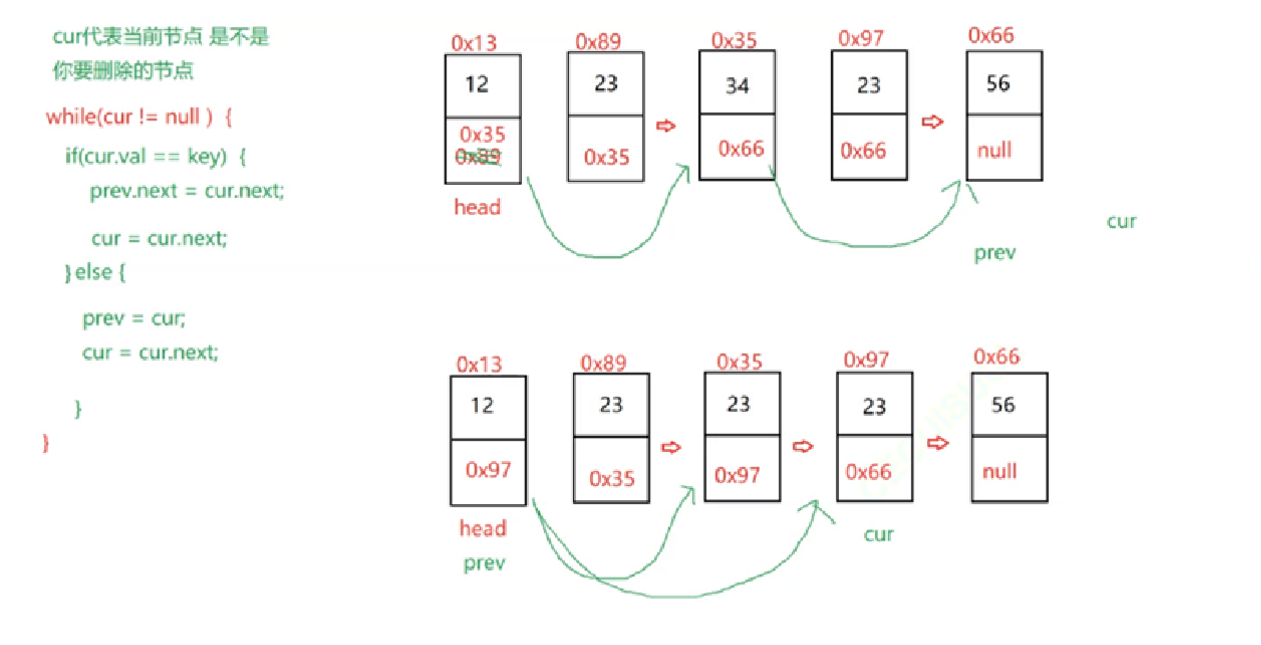

10.删除所有key值节点
// 删除 所有key值 节点@Overridepublic void removeAllKey(int key) {if (head == null) {return;}ListNode prev = head;ListNode cur = head.next;while (cur != null) {if (cur.val == key) {prev.next = cur.next;cur = cur.next;}else {prev = cur;cur = cur.next;}}if (head.val == key) {head = head.next;}}

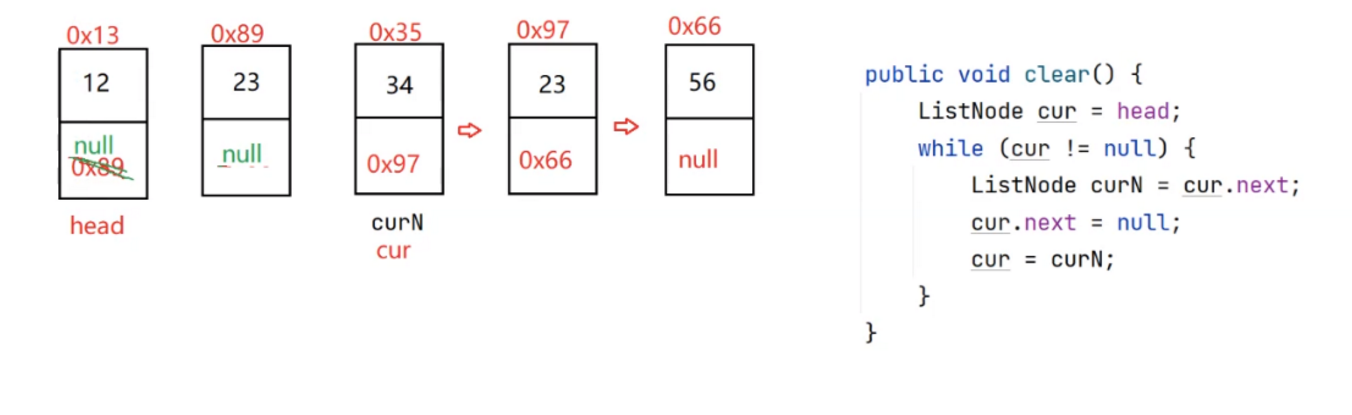

11.clear
@Overridepublic void clear() {ListNode cur = head;while (cur != null) {ListNode curNext = cur.next;cur.next = null;cur = curNext;}head = null;}
注意:
此处最后 head 也要置空
3.练习
3.1 删除链表中等于给定值 val 的所有节点
203. 移除链表元素 - 力扣(LeetCode)
/*** Definition for singly-linked list.* public class ListNode {* int val;* ListNode next;* ListNode() {}* ListNode(int val) { this.val = val; }* ListNode(int val, ListNode next) { this.val = val; this.next = next; }* }*/
class Solution {public ListNode removeElements(ListNode head, int val) {if (head == null) {return head;}ListNode prev = head;ListNode cur = head.next;while (cur != null) {if (cur.val == val) {prev.next = cur.next;cur = cur.next;}else {prev = cur;cur = cur.next;}}if (head.val == val) {head = head.next;}return head;}
}
203. 移除链表元素 - 力扣(LeetCode) 此处和 2.3 中的 10.删除所有key节点 一样

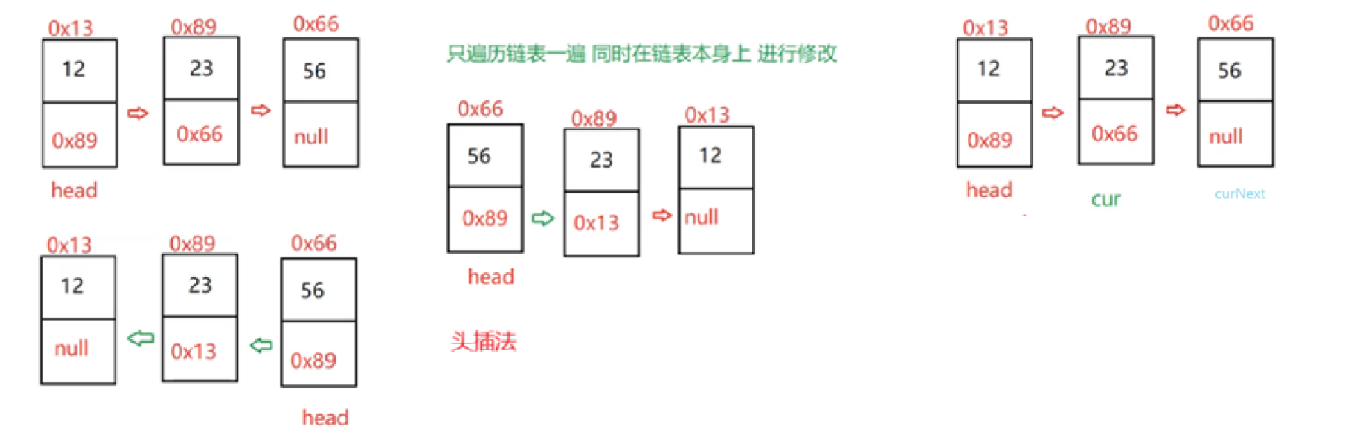

3.2 反转一个单链表
OJ链接
/*** Definition for singly-linked list.* public class ListNode {* int val;* ListNode next;* ListNode() {}* ListNode(int val) { this.val = val; }* ListNode(int val, ListNode next) { this.val = val; this.next = next; }* }*/
class Solution {public ListNode reverseList(ListNode head) {if(head == null) {return head;}ListNode cur = head.next;head.next = null;while(cur != null) {ListNode curNext = cur.next;cur.next = head;head = cur;cur = curNext;}return head;}
}

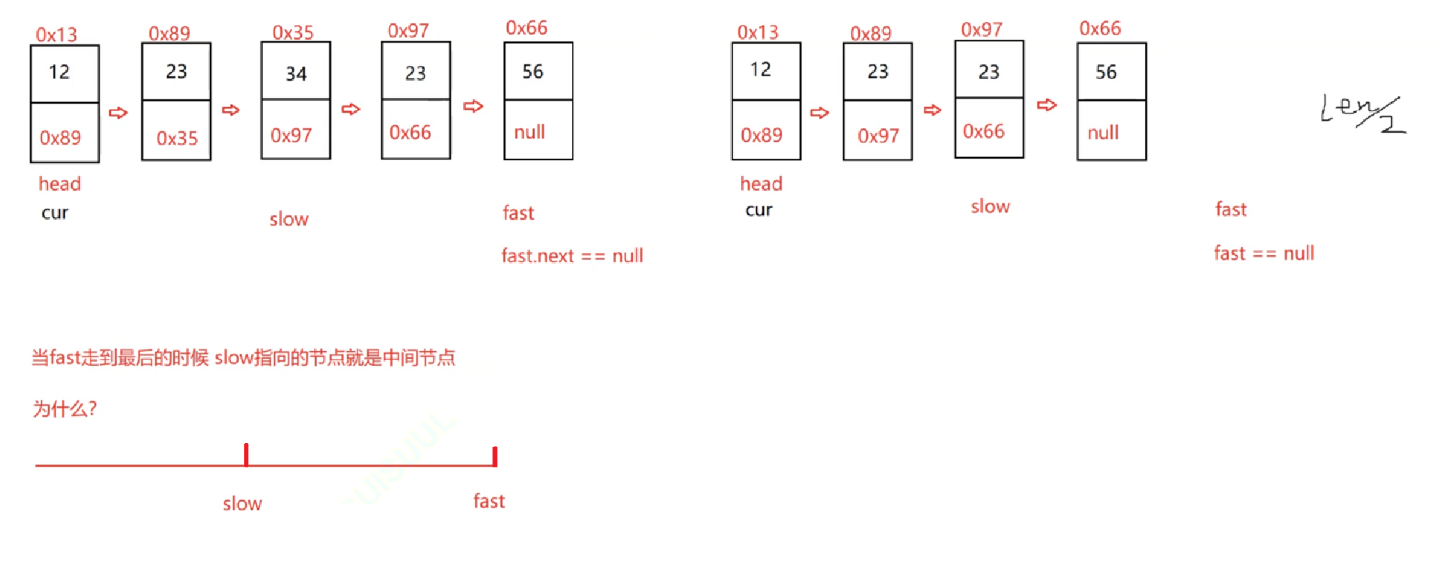

3.3 给定一个带有头结点 head 的非空单链表,返回链表的中间结点。如果有两个中间结点,则返回第二个中间结点
OJ链接
/*** Definition for singly-linked list.* public class ListNode {* int val;* ListNode next;* ListNode() {}* ListNode(int val) { this.val = val; }* ListNode(int val, ListNode next) { this.val = val; this.next = next; }* }*/class Solution {public ListNode middleNode(ListNode head) {if(head == null) {return null;}ListNode fast = head;ListNode slow = head;while(fast != null && fast.next != null) {slow = slow.next;fast = fast.next.next;} return slow; }}
注意:
做这些练习的时候,要考虑 空链表 的情况,也就是 head == null

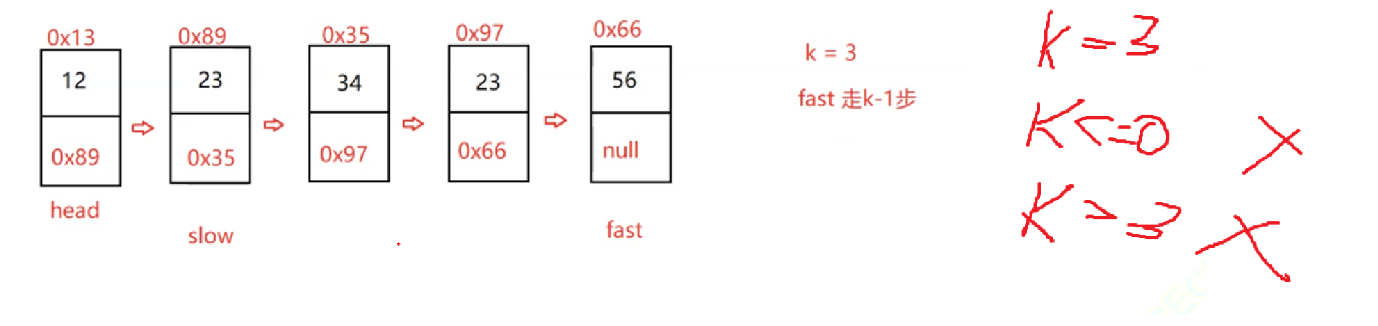

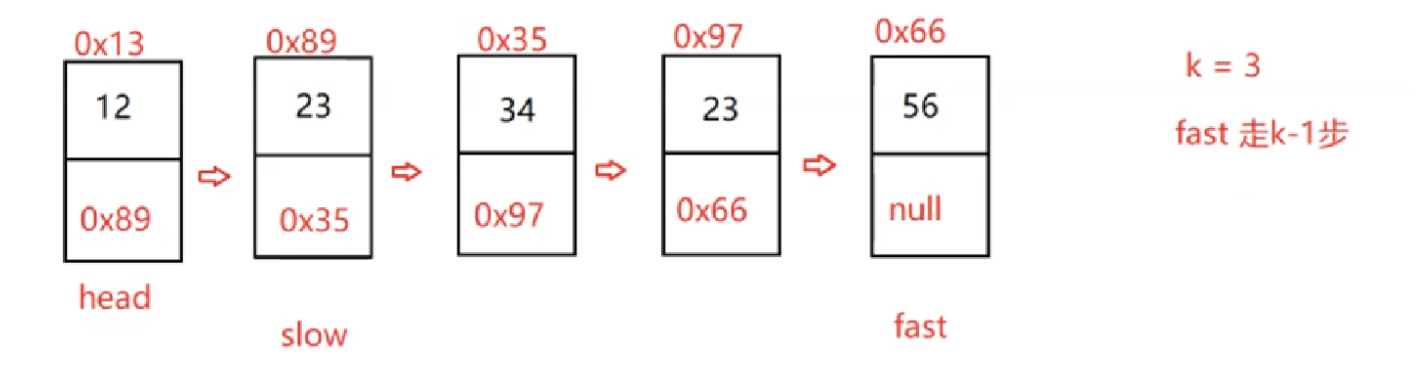

3.4 输入一个链表,输出该链表中倒数第k个结点
OJ链接
/*** Definition for singly-linked list.* public class ListNode {* int val;* ListNode next;* ListNode() {}* ListNode(int val) { this.val = val; }* ListNode(int val, ListNode next) { this.val = val; this.next = next; }* }*/
class Solution {public int kthToLast(ListNode head, int k) {if(head == null) {return -1;}ListNode fast = head;ListNode slow = head;// fast 走 k - 1 步int count = 0; while(count != k - 1) {fast = fast.next;count++;}while(fast.next != null) {slow = slow.next;fast = fast.next;}return slow.val;}
}
注意:
1. fast.next != null;
此处 fast 走到最后一个节点即可,不必走到 null
2.此处 k 值,不确定是否合法,一般题目中会设置范围,但是没设置的话就需要补充上k值合法性的校验
补充:验证 k 的合法性
/*** Definition for singly-linked list.* public class ListNode {* int val;* ListNode next;* ListNode() {}* ListNode(int val) { this.val = val; }* ListNode(int val, ListNode next) { this.val = val; this.next = next; }* }*/
class Solution {public int kthToLast(ListNode head, int k) {if(head == null) {return -1;}if(k <= 0) {return -1;}ListNode fast = head;ListNode slow = head;// fast 走 k - 1 步int count = 0; while(count != k - 1) {fast = fast.next;if(fast == null) {return -1;}count++;}while(fast.next != null) {slow = slow.next;fast = fast.next;}return slow.val;}
}

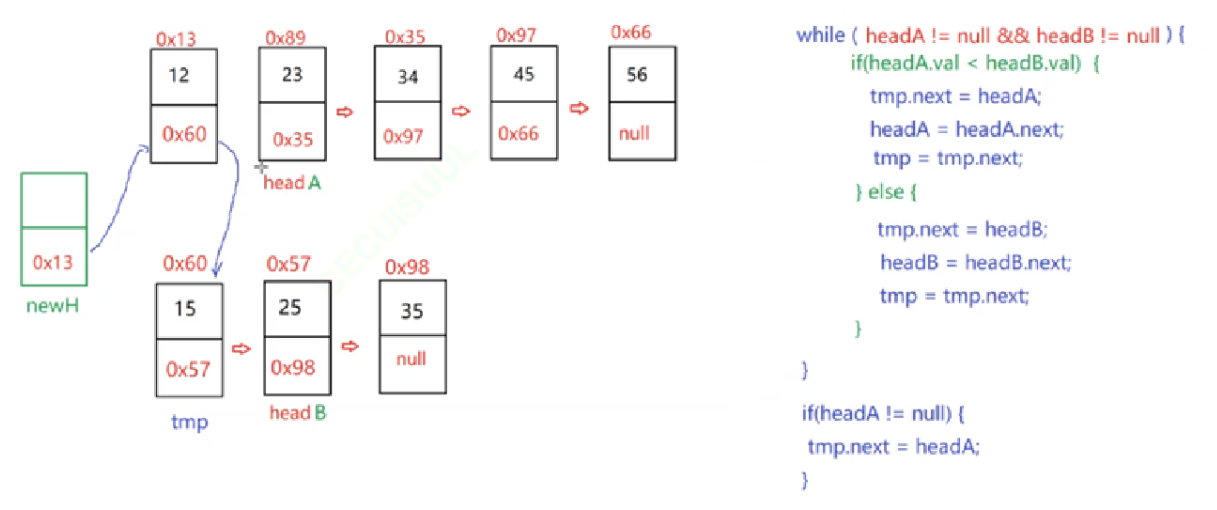

3.5 将两个有序链表合并为一个新的有序链表并返回。新链表是通过拼接给定的两个链表的所有节点组成的
OJ链接
/*** Definition for singly-linked list.* public class ListNode {* int val;* ListNode next;* ListNode() {}* ListNode(int val) { this.val = val; }* ListNode(int val, ListNode next) { this.val = val; this.next = next; }* }*/class Solution {public ListNode mergeTwoLists(ListNode list1, ListNode list2) {ListNode newHead = new ListNode();ListNode cur = newHead;while(list1 != null && list2 != null) {if(list1.val > list2.val) {cur.next = list2;list2 = list2.next;cur = cur.next;}else {cur.next = list1;list1 = list1.next;cur = cur.next;}}if(list1 != null) {cur.next = list1;}if(list2 != null) {cur.next = list2;}return newHead.next;}}

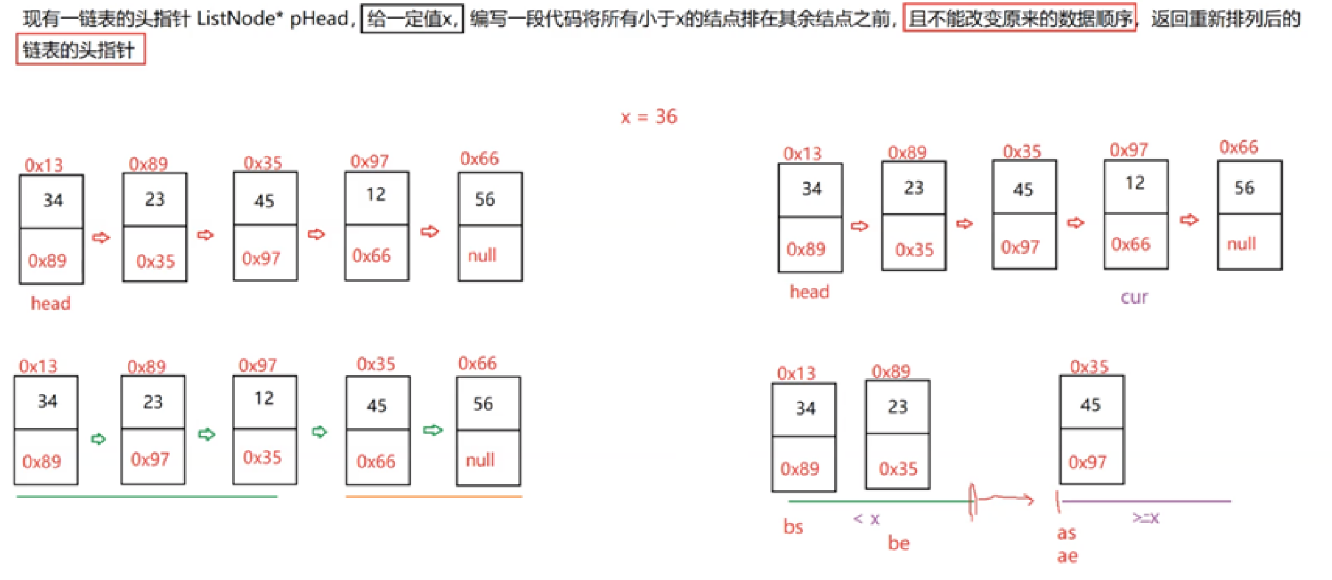

3.6 编写代码,以给定值x为基准将链表分割成两部分,所有小于x的结点排在大于或等于x的结点之前
OJ链接
import java.util.*;/*
public class ListNode {int val;ListNode next = null;ListNode(int val) {this.val = val;}
}*/
public class Partition {public ListNode partition(ListNode pHead, int x) {ListNode cur = pHead;ListNode beforStart = null;ListNode beforEnd = null;ListNode afterStart = null;ListNode afterEnd = null;while(cur != null) {if(cur.val < x) {if(beforStart == null) {beforStart = cur;beforEnd = cur;}else {beforEnd.next = cur;beforEnd = beforEnd.next;}cur = cur.next;}else {if(afterStart == null) {afterStart = cur;afterEnd = cur;}else {afterEnd.next = cur;afterEnd = afterEnd.next;}cur = cur.next;} }if(beforStart == null) {return afterStart;}// 置空 afterEnd.nextif(afterStart != null) {afterEnd.next = null;}beforEnd.next = afterStart;return beforStart;}
}
注意:
此处思路:是把 大于x 和 小于x 的值分为两个链表。
但是:注意特殊情况,比如大于x的链表为空 和 小于x的链表为空。
而且:要注意,在 小于x的链表不为空时, 置空 afterEnd.next

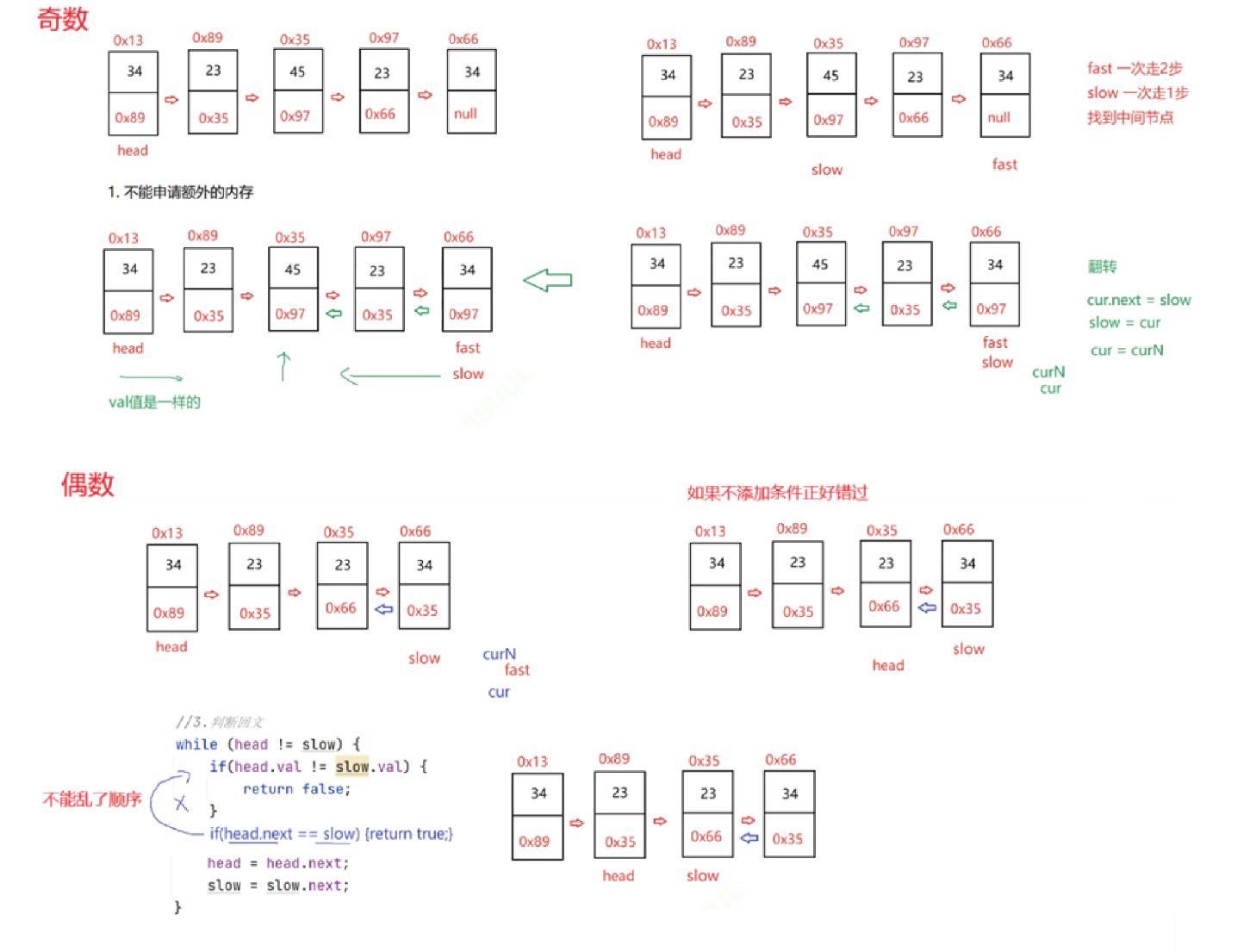

3.7 链表的回文结构
OJ链接
import java.util.*;/*
public class ListNode {int val;ListNode next = null;ListNode(int val) {this.val = val;}
}*/
public class PalindromeList {public boolean chkPalindrome(ListNode A) {if(A == null) {return true;}ListNode fast = A;ListNode slow = A;while(fast != null && fast.next != null) {fast = fast.next.next;slow = slow.next;}ListNode cur = slow.next;while(cur != null) {ListNode curNext = cur.next;cur.next = slow;slow = cur;cur =curNext;} while(A != slow) {if(A.val != slow.val) {return false;}// 偶数情况if(A.next == slow) {return true;}A = A.next;slow = slow.next;}return true;}
}
注意:
1. 三步走:找中间节点,反转中间节点后的链表,比较前半部分和后半部分链表的val值
2. 偶数情况:
if(A.next == slow) {
return true;
}

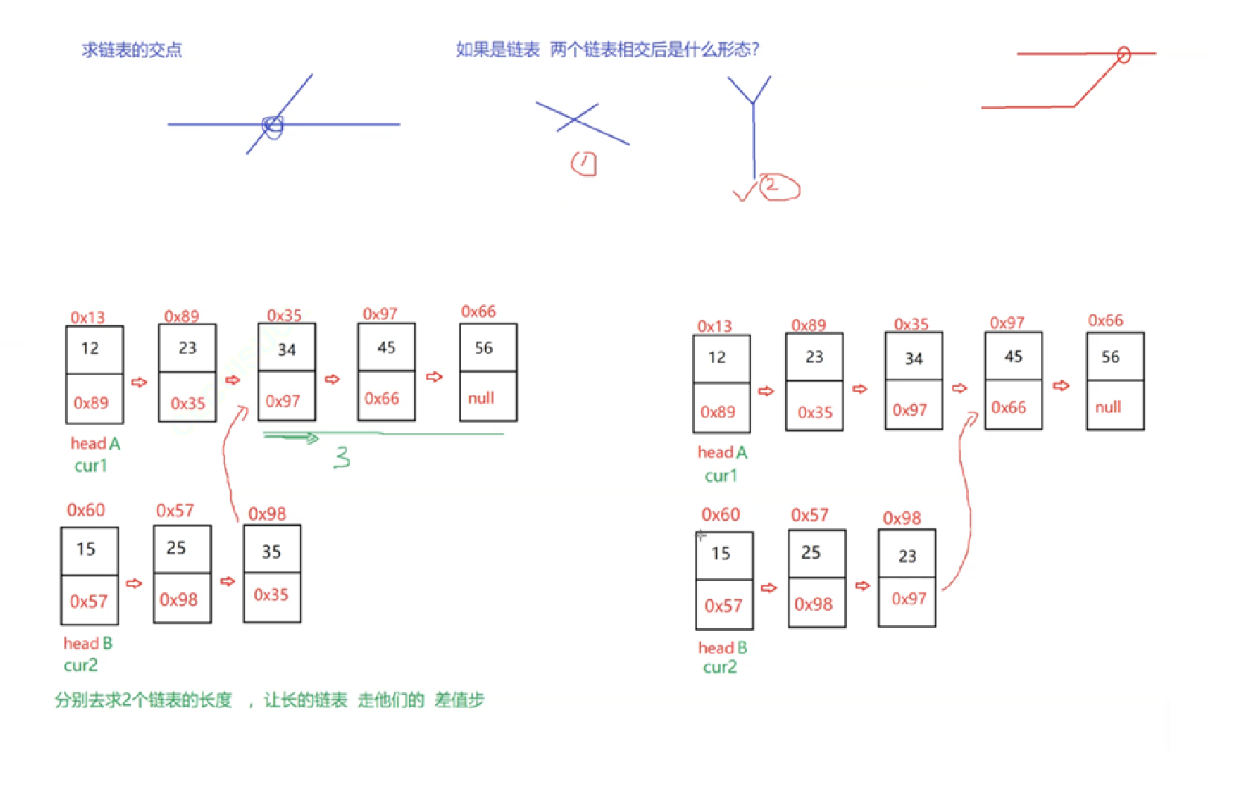

3.8 输入两个链表,找出它们的第一个公共结点
OJ链接
/*** Definition for singly-linked list.* public class ListNode {* int val;* ListNode next;* ListNode(int x) {* val = x;* next = null;* }* }*/
public class Solution {public ListNode getIntersectionNode(ListNode headA, ListNode headB) {ListNode pLong = headA;ListNode pShort = headB;// 先求两个链表的长度int lenA = 0;int lenB = 0;while(pLong != null) {lenA++;pLong = pLong.next;}while(pShort != null) {lenB++;pShort = pShort.next;}pLong = headApShort = headB// 求差值int len = lenA - lenB;if(len < 0) {pLong = lenB;pShort = lenA;len = lenB - lenA;}// 走完上述两步 pLong 一定指向最长的链表 pShort 一定指向最短的链表// 接下来的操作 只需要操作 pLong 和 pShort 就行了// 让最长的链表走 len 步while(len != 0) {pLong = pLong.next;len--;}// 两个引用同时走 直到他们相遇while(pLong != pShort) {pLong = pLong.next;pShort = pShort.next;}if(pLong == null) {return null; // 不相交}return pLong;}
}
注意:
1.主要思路就是:走两个链表长度的差值步
2. 此处注意还原 pLong 和 pShort ,因为算长度,他们的位置发生了改变,要还原,否则影响下面代码
pLong = headA
pShort = headB3.注意不相交的情况:
if(pLong == null) {
return null; // 不相交
}
3.9 给定一个链表,判断链表中是否有环
OJ链接
/*** Definition for singly-linked list.* class ListNode {* int val;* ListNode next;* ListNode(int x) {* val = x;* next = null;* }* }*/
public class Solution {public boolean hasCycle(ListNode head) {if(head == null) {return false;}if(head.next == null) {return false;}ListNode fast = head;ListNode slow = head;while(fast != null && fast.next != null) {fast = fast.next.next;slow = slow.next;if(fast == slow) {return true;}}return false;}
}
【思路】
快慢指针,即慢指针一次走一步,快指针一次走两步,两个指针从链表起始位置开始运行,如果链表带环则一定会在环中相遇,否则快指针率先走到链表的末尾。比如:陪女朋友到操作跑步减肥。
【扩展问题】
-
为什么快指针每次走两步,慢指针走一步可以?
假设链表带环,两个指针最后都会进入环,快指针先进环,慢指针后进环。当慢指针刚进环时,可能就和快
指针相遇了,最差情况下两个指针之间的距离刚好就是环的长度。此时,两个指针每移动一次,之间的距离就缩小一步,不会出现每次刚好是套圈的情况,因此:在慢指针走到一圈之前,快指针肯定是可以追上慢指针的,即相遇。
-

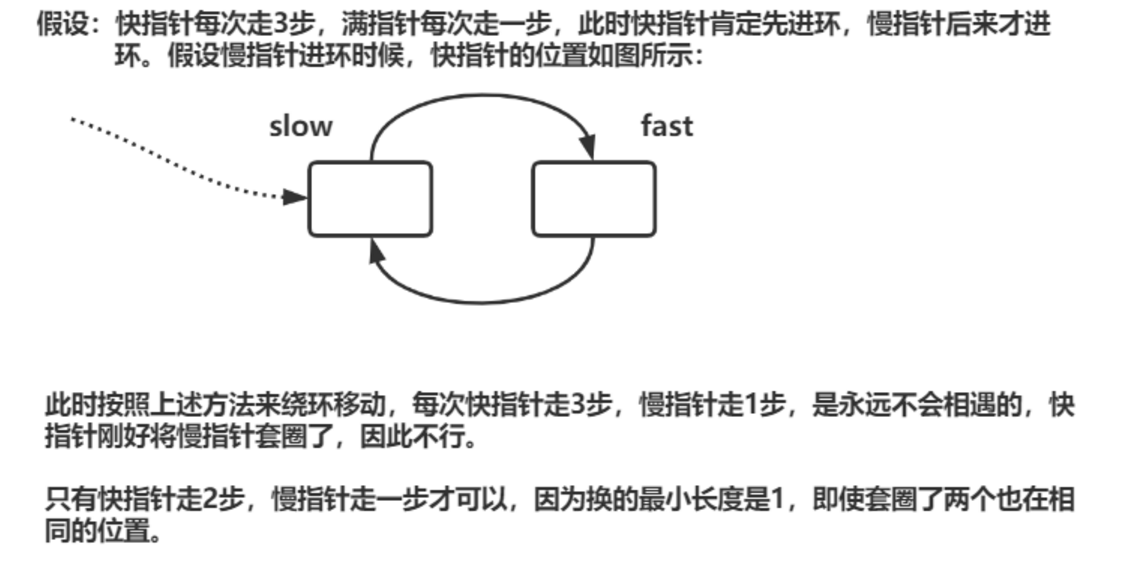

快指针一次走3步,走4步,...n步行吗?
注意:
1.链表为空,和只有一个节点的情况是不存在环的
if(head == null) {
return false;
}if(head.next == null) {
return false;
}2.快慢指针的步数问题:
快 2 慢 2:会相遇
快3 慢 1 :永不相遇
可见:并不是快指针比慢指针快就行,还得注意步数问题。
3.10 给定一个链表,返回链表开始入环的第一个节点。 如果链表无环,则返回 NULL
OJ链接
/*** Definition for singly-linked list.* class ListNode {* int val;* ListNode next;* ListNode(int x) {* val = x;* next = null;* }* }*/
public class Solution {public ListNode detectCycle(ListNode head) {ListNode fast = head;ListNode slow = head;if(head == null) {return null;}if(head.next == null) {return null;}while(fast != null && fast.next != null) {fast = fast.next.next;slow = slow.next;if(fast == slow) {break;}}if(fast == null || fast.next == null) {return null; // 没有环}slow = head;while(slow != fast) {fast = fast.next;slow = slow.next;}return slow;}
}
【结论】
让一个指针从链表起始位置开始遍历链表,同时让一个指针从判环时相遇点的位置开始绕环运行,两个指针都是每次均走一步,最终肯定会在入口点的位置相遇。

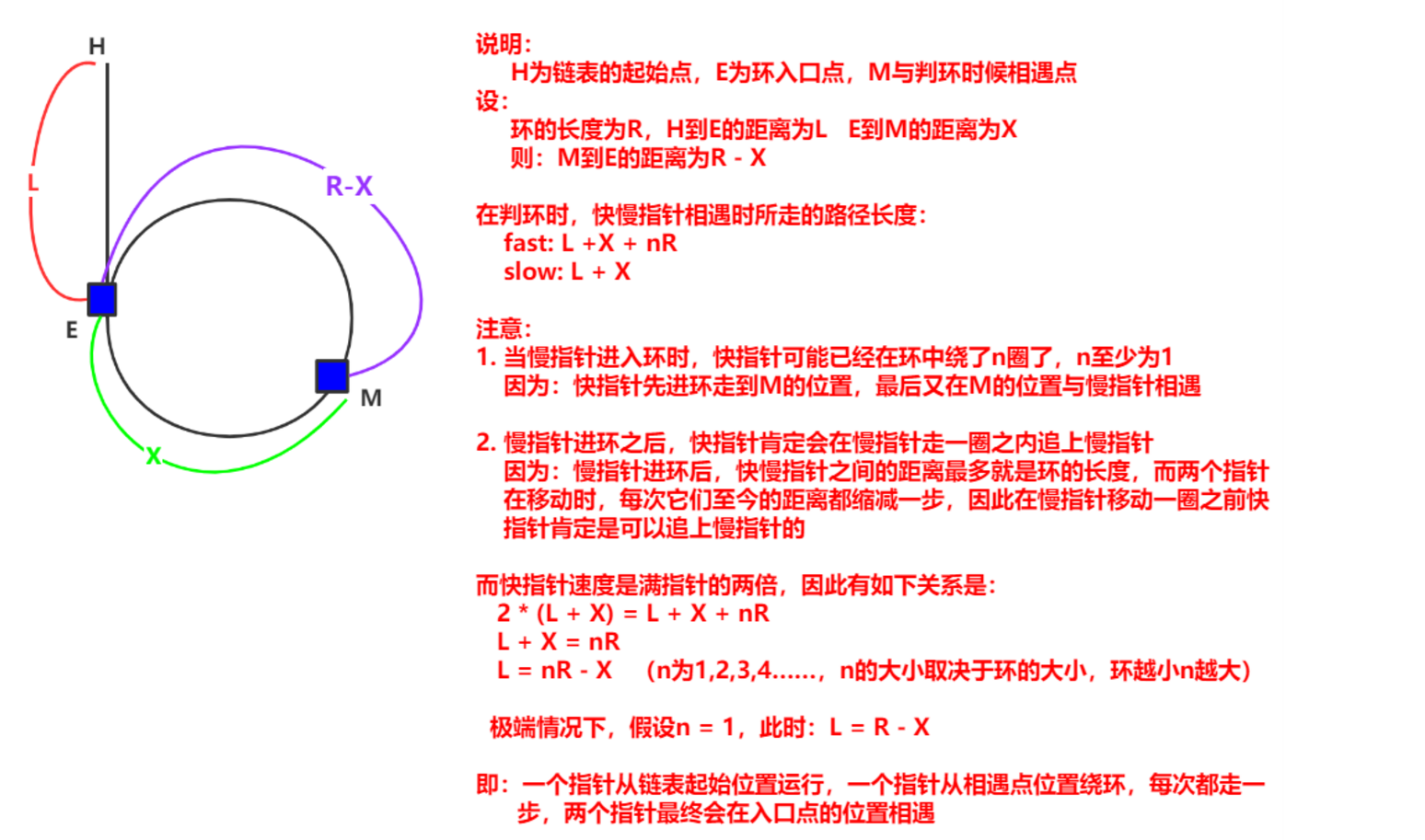

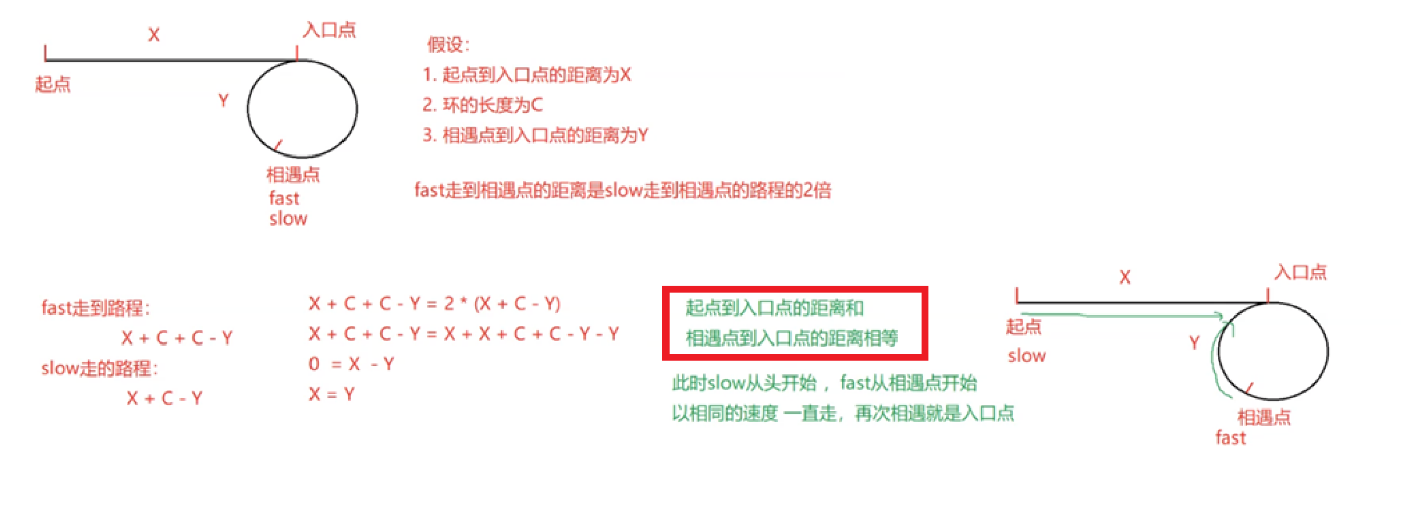

【证明】
注意:
1.链表为空,和只有一个节点的情况是不存在环的
if(head == null) {
return false;
}if(head.next == null) {
return false;
}2.相遇时出循环:
while(fast != null && fast.next != null) {
fast = fast.next.next;
slow = slow.next;
if(fast == slow) {
break;
}
}3.去除没有环的情况:
if(fast == null || fast.next == null) {
return null; // 没有环
}4.关键:让慢指针回到链表开头,然后慢指针与快指针以相同的速度走
slow = head;
while(slow != fast) {
fast = fast.next;
slow = slow.next;
}5.证明:此处最关键的是,fast的路程是slow路程的二倍,建立等式,计算,取极端情况 得出关系,写代码。
