使用OpenCV做个图片校正工具

昨天有位兄台给我发了个文件，是下面这个样子的：

那一双小脚既没有裹成三寸金莲，又没有黑丝，这图片肯定不符合我的要求。我要的是这个样子的好不好：

让他拿扫描仪重新给我规规矩矩扫一个发过来？他要能用扫描仪还用手机拍个这个东西给我？好在我有巨蟒与AI，对AI说：给我生成一个Python程序，可以打开一张图片并显示在图片容器中，在图片上点击四个角点，对四个角点先按x位置升序排序，取前两个点为右侧点，后两个点为左侧点，再将左右侧两组点分别按y位置升序排序，前面的为上部点，后面的为下部点，将这四个点按【左上，右上，右下，左下】的秩序构造一个列表。求出这四个点的minX，maxX，minY，maxY，按照[[min_x,min_y],[max_x,min_y],[max_x,max_y],[min_x,max_y]]构造一个列表，将图片中【左上，右上，右下，左下】四个点构成的四边形范围内的图像进行透视变换，变换为由[[min_x,min_y],[max_x,min_y],[max_x,max_y],[min_x,max_y]]这四个点构成的矩形图象。

几乎任意一个AI都能够给出一个基本能够实现功能的代码，然后可以继续对AI增加要求，例如组装出GUI界面、要求使用自己熟悉的工具库、对图片进行缩放显示之类，试着运行一下，自己或者让AI更正一下错误，还不到一小时就可以弄出下面的程序：（0728修改：增加微调角点位置功能）

# pip install pillow opencv-python numpy
import tkinter as tk
from tkinter import filedialog, messagebox
from tkinter import ttkfrom PIL import Image, ImageTk
import cv2
import numpy as npclass ImageCorrectorApp:def __init__(self, root):self.root = rootself.root.title("图片校正工具")self.img_canvas_size = 800  # 图片显示容器尺寸self.max_show_size = 800    # 校正后图片最大显示尺寸# 设置ttk主题和样式style = ttk.Style()# 若系统支持clam/alt/vista/xpnative等主题可选themes = style.theme_names()if 'clam' in themes:style.theme_use('clam')style.configure('TFrame', background='#f8f9fa')style.configure('TLabel', background='#f8f9fa', font=('微软雅黑', 11))style.configure('TButton', font=('微软雅黑', 11, 'bold'), padding=6)style.configure('Warn.TLabel', foreground='#d9534f', font=('微软雅黑', 10, 'bold'), background='#f8f9fa')# 图片相关变量self.original_img = None      # 原始PIL图片self.display_img = None       # 当前显示的PIL图片self.tk_img = None            # Tkinter显示用图片self.scale = 1.0              # 当前缩放比例（放大/缩小按钮用）self.display_scale = 1.0      # 打开图片时的等比例缩放因子self.points = []              # 用户点击的点（用于校正）self.active_idx = None       # 当前激活点下标self.corrected_img = None     # 校正后的PIL图片# 主framemain_frame = ttk.Frame(root, padding=10)main_frame.pack(padx=10, pady=10)# 图片显示区及滚动条img_frame = ttk.Frame(main_frame)img_frame.grid(row=0, column=0)self.canvas = tk.Canvas(img_frame, width=self.img_canvas_size, height=self.img_canvas_size, bg='#e9ecef', highlightthickness=2, highlightbackground='#adb5bd')self.canvas.grid(row=0, column=0, sticky='nsew')# 水平和垂直滚动条self.hbar = ttk.Scrollbar(img_frame, orient=tk.HORIZONTAL, command=self.canvas.xview)self.hbar.grid(row=1, column=0, sticky='ew')self.vbar = ttk.Scrollbar(img_frame, orient=tk.VERTICAL, command=self.canvas.yview)self.vbar.grid(row=0, column=1, sticky='ns')self.canvas.config(xscrollcommand=self.hbar.set, yscrollcommand=self.vbar.set)self.canvas.bind("<Button-1>", self.on_canvas_click)  # 绑定鼠标点击事件self.root.bind("<Up>", self.on_key_press)self.root.bind("<Down>", self.on_key_press)self.root.bind("<Left>", self.on_key_press)self.root.bind("<Right>", self.on_key_press)# 右侧按钮区right_frame = ttk.Frame(main_frame)right_frame.grid(row=0, column=1, sticky='nw', padx=10, rowspan=2)# 用Canvas模拟绿色圆角矩形边框的Labellabel_canvas = tk.Canvas(right_frame, width=110, height=190, bg='#f8f9fa', highlightthickness=0)label_canvas.pack(pady=8)        # 画绿色圆角矩形def draw_round_rect(canvas, x1, y1, x2, y2, radius=12, **kwargs):points = [x1+radius, y1,x2-radius, y1,x2, y1,x2, y1+radius,x2, y2-radius,x2, y2,x2-radius, y2,x1+radius, y2,x1, y2,x1, y2-radius,x1, y1+radius,x1, y1]return canvas.create_polygon(points, smooth=True, **kwargs)draw_round_rect(label_canvas, 2, 2, 108, 188, radius=14, outline='#28a745', width=2, fill='#f8f9fa')# 绘制文字label_canvas.create_text(10, 10, anchor='nw', text="打开图片后点击图片选择四个角点进行校正。 \可以使用上下左右箭头对角点位置进行微调。", fill='#f00', font=('微软雅黑', 12), width=90)ttk.Button(right_frame, text="撤销最后选点", width=10, command=self.reset_point, style='TButton').pack(pady=8)ttk.Button(right_frame, text="放大图片", width=10, command=self.zoom_in, style='TButton').pack(pady=8)ttk.Button(right_frame, text="缩小图片", width=10, command=self.zoom_out, style='TButton').pack(pady=8)# 下方按钮区bottom_frame = ttk.Frame(main_frame)bottom_frame.grid(row=1, column=0, sticky='sew', padx=10, pady=10)ttk.Button(bottom_frame, text="打开图片", width=12, command=self.open_image, style='TButton').pack(side='left', expand=True, padx=8)ttk.Button(bottom_frame, text="校正图片", width=12, command=self.correct_image, style='TButton').pack(side='left', expand=True, padx=8)ttk.Button(bottom_frame, text="保存图片", width=12, command=self.save_image, style='TButton').pack(side='left', expand=True, padx=8)def open_image(self):# 打开图片文件，按容器等比例缩放显示file_path = filedialog.askopenfilename(filetypes=[("Image files", "*.jpg *.png *.jpeg")])if not file_path:returnself.original_img = Image.open(file_path).convert("RGB")w, h = self.original_img.sizescale = min(self.img_canvas_size / w, self.img_canvas_size / h, 1.0)self.display_scale = scaleif scale < 1.0:self.display_img = self.original_img.resize((int(w * scale), int(h * scale)), Image.LANCZOS)else:self.display_img = self.original_img.copy()self.scale = 1.0self.points.clear()self.corrected_img = Noneself.show_image()def reset_point(self):if self.original_img is None:returnif len(self.points) > 0:# 清除保存的最后一个角点self.points.pop()self.show_image()def show_image(self):# 在canvas上显示图片，并绘制用户点击的点和线if self.display_img is None:returnw, h = self.display_img.sizeself.tk_img = ImageTk.PhotoImage(self.display_img)self.canvas.config(scrollregion=(0, 0, w, h))self.canvas.delete("all")self.canvas.create_image(0, 0, anchor='nw', image=self.tk_img)# 自动检测角点并用黄色圆圈标记。经试验，这个功能作用不大，取消# img_np = np.array(self.display_img)# if img_np.ndim == 3 and img_np.shape[2] == 3:#     gray = cv2.cvtColor(img_np, cv2.COLOR_RGB2GRAY)# else:#     gray = img_np# corners = cv2.goodFeaturesToTrack(gray, maxCorners=100, qualityLevel=0.01, minDistance=10)# if corners is not None:#     for pt in corners:#         x, y = pt.ravel()#         self.canvas.create_oval(x-4, y-4, x+4, y+4, outline='yellow', width=2)# 绘制点和线for i, (x, y) in enumerate(self.points):if self.active_idx is not None and i == self.active_idx:# 激活点用蓝色边框高亮self.canvas.create_oval(x-7, y-7, x+7, y+7, outline='blue', width=3)# 绘制角点self.canvas.create_oval(x-5, y-5, x+5, y+5, fill='red', outline='red')if i > 0:x0, y0 = self.points[i-1]# 绘制新选择的角点与前一个角点之间的连线self.canvas.create_line(x0, y0, x, y, fill='red', width=2)if len(self.points) == 4:# 绘制最后一个角点与第一个角点之间的连线x0, y0 = self.points[0]x3, y3 = self.points[3]self.canvas.create_line(x3, y3, x0, y0, fill='red', width=2)def zoom_in(self):# 放大图片，每次放大10%if self.display_img is None:returnself.scale *= 1.1w, h = self.original_img.sizescale = self.display_scale * self.scaleself.display_img = self.original_img.resize((int(w * scale), int(h * scale)), Image.LANCZOS)# 点坐标同步放大self.points = [(int(x*1.1), int(y*1.1)) for (x, y) in self.points]self.show_image()def zoom_out(self):# 缩小图片，每次缩小10%if self.display_img is None:returnself.scale /= 1.1w, h = self.original_img.sizescale = self.display_scale * self.scaleself.display_img = self.original_img.resize((int(w * scale), int(h * scale)), Image.LANCZOS)# 点坐标同步缩小self.points = [(int(x/1.1), int(y/1.1)) for (x, y) in self.points]self.show_image()def on_key_press(self, event):# 方向键移动激活点if self.active_idx is None or not self.points:returnx, y = self.points[self.active_idx]if event.keysym == 'Up':y = max(0, y - 1)elif event.keysym == 'Down':y = y + 1elif event.keysym == 'Left':x = max(0, x - 1)elif event.keysym == 'Right':x = x + 1self.points[self.active_idx] = (x, y)self.show_image()def on_canvas_click(self, event):# 支持激活点和点选逻辑if self.display_img is None:returnx = self.canvas.canvasx(event.x)y = self.canvas.canvasy(event.y)click = (int(x), int(y))# 判断是否点击到已有点idx_near = Nonefor idx, (px, py) in enumerate(self.points):            # 计算点击位置与已有角点之间的距离dist = ((px - click[0]) ** 2 + (py - click[1]) ** 2) ** 0.5if dist < 8:  # 距离在8像素内算点击到角点idx_near = idx# 点中了已有角点if idx_near is not None:self.active_idx = idx_nearself.show_image()return# 未点中已有角点，若点数<4，新增点并激活if len(self.points) < 4:self.points.append(click)self.active_idx = len(self.points) - 1self.show_image()return# 点数已满4，且未点中已有点，不做操作def correct_image(self):# 校正图片，将四边形区域映射为矩形if self.original_img is None or len(self.points) != 4:messagebox.showwarning("提示", "请先选择图片并点击4个点")return# 将显示坐标还原为原图坐标pts = np.array(self.points, dtype=np.float32) / (self.display_scale * self.scale)# 1. 按x排序，分左右两组idx = np.argsort(pts[:, 0])left_pts = pts[idx[:2]]right_pts = pts[idx[2:]]# 2. 左右组分别按y排序left_pts = left_pts[np.argsort(left_pts[:, 1])]right_pts = right_pts[np.argsort(right_pts[:, 1])]# 3. 按左上、右上、右下、左下排列原始点位ordered_src = np.array([left_pts[0],   # 左上right_pts[0],  # 右上right_pts[1],  # 右下left_pts[1],   # 左下], dtype=np.float32)# 4. 目标点直接用x/y的min/max，按左上、右上、右下、左下排列min_x = np.min(pts[:, 0])max_x = np.max(pts[:, 0])min_y = np.min(pts[:, 1])max_y = np.max(pts[:, 1])ordered_dst = np.array([[min_x, min_y],  # 左上[max_x, min_y],  # 右上[max_x, max_y],  # 右下[min_x, max_y],  # 左下], dtype=np.float32)# 透视变换img_cv = cv2.cvtColor(np.array(self.original_img), cv2.COLOR_RGB2BGR)# 计算透视变换矩阵M = cv2.getPerspectiveTransform(ordered_src, ordered_dst)# 应用透视变换warped = cv2.warpPerspective(img_cv, M, (self.original_img.width, self.original_img.height))# 裁剪到目标矩形区域cropped = warped[int(min_y):int(max_y), int(min_x):int(max_x)]warped_pil = Image.fromarray(cv2.cvtColor(cropped, cv2.COLOR_BGR2RGB))self.corrected_img = warped_pil# 校正结果缩放显示show_w, show_h = warped_pil.sizescale = min(self.max_show_size / show_w, self.max_show_size / show_h, 1.0)if scale < 1.0:warped_pil = warped_pil.resize((int(show_w * scale), int(show_h * scale)), Image.LANCZOS)# 弹窗显示校正后图片win = tk.Toplevel(self.root)win.title("校正后图片")tk_img = ImageTk.PhotoImage(warped_pil)label = tk.Label(win, image=tk_img)label.image = tk_imglabel.pack()def save_image(self):# 保存校正后的图片if self.corrected_img is None:messagebox.showwarning("提示", "没有可保存的校正图片")returnfile_path = filedialog.asksaveasfilename(defaultextension=".png", filetypes=[("PNG文件", "*.png")])if file_path:self.corrected_img.save(file_path, "PNG")messagebox.showinfo("保存成功", f"图片已保存到\n{file_path}")if __name__ == "__main__":root = tk.Tk()# 设置窗体初始位置居中，距上100pxscreen_w = root.winfo_screenwidth()screen_h = root.winfo_screenheight()win_w = 980win_h = 900x = (screen_w - win_w) // 2y = 50root.geometry(f"{win_w}x{win_h}+{x}+{y}")app = ImageCorrectorApp(root)root.mainloop()

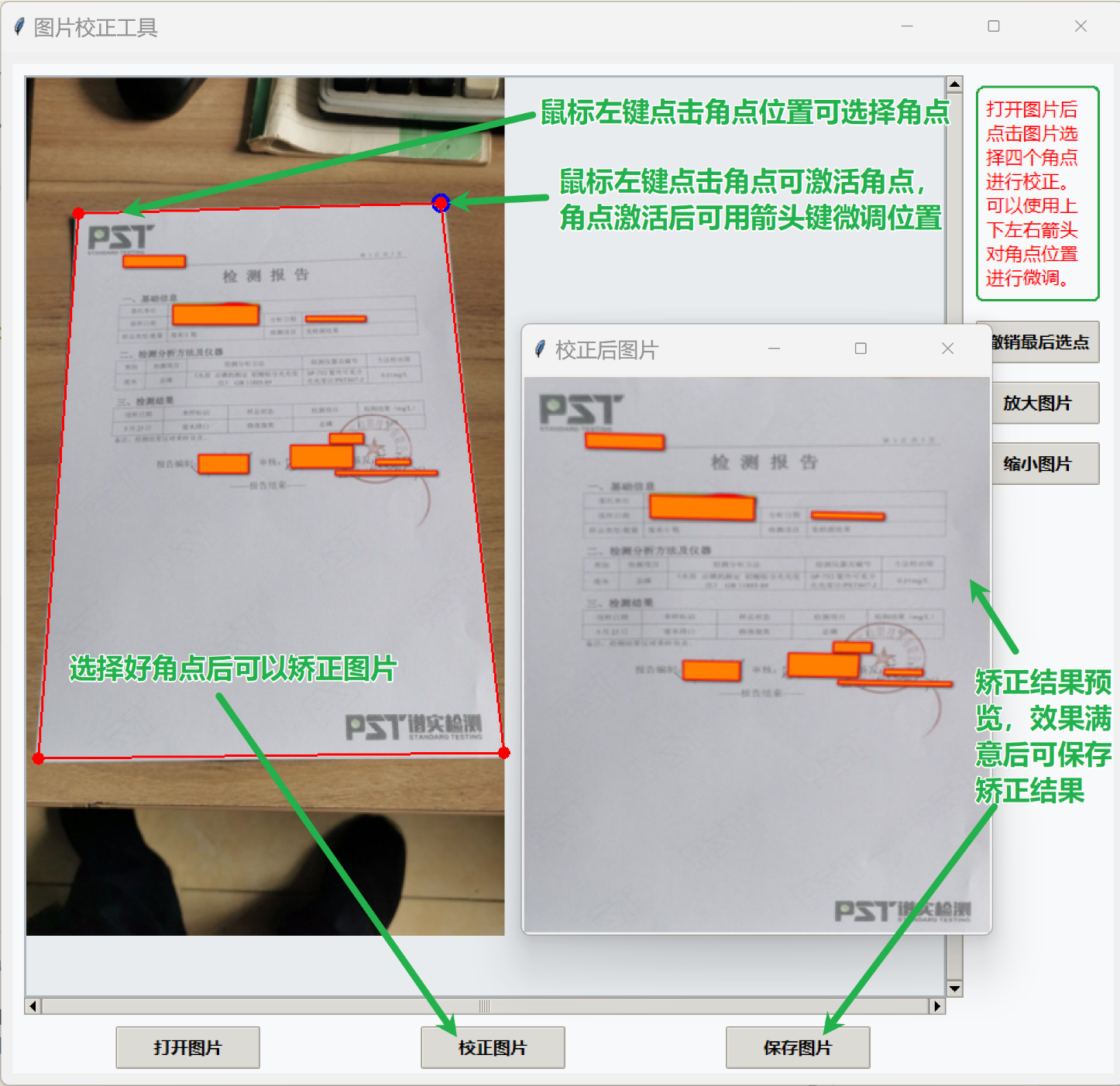

AI为代码生成了注释，其实最关键的就是提示词里提到的构造出原始四边形与目标图像矩形的角点一一映射的思路，至于透视变换的矩阵运算，可以直接调用OpenCV的API接口。程序运行界面如下：
