补充

任务通知

任务通知（Task Notifications）是一种轻量级的、快速的机制，用于在任务之间或中断与任务之间传递简单的信号或少量数据。相比传统的队列、信号量等同步机制，任务通知具有更低的资源消耗和更高的效率。
还记得吗，每个任务控制块都有这么两个字段

//状态
#define taskNOT_WAITING_NOTIFICATION              ( ( uint8_t ) 0 ) /* Must be zero as it is the initialised value. */
#define taskWAITING_NOTIFICATION                  ( ( uint8_t ) 1 )
#define taskNOTIFICATION_RECEIVED                 ( ( uint8_t ) 2 )//字段
#if ( configUSE_TASK_NOTIFICATIONS == 1 )volatile uint32_t ulNotifiedValue[ configTASK_NOTIFICATION_ARRAY_ENTRIES ];	//通知值volatile uint8_t ucNotifyState[ configTASK_NOTIFICATION_ARRAY_ENTRIES ];	//通知状态
#endif

通过这些，可以实现多种同步模式：

• 简单通知：仅设置通知状态。
• 带值的通知：除了设置状态外，还可以传递一个32位的数值。
• 带掩码的通知：使用特定的位掩码来更新通知值。

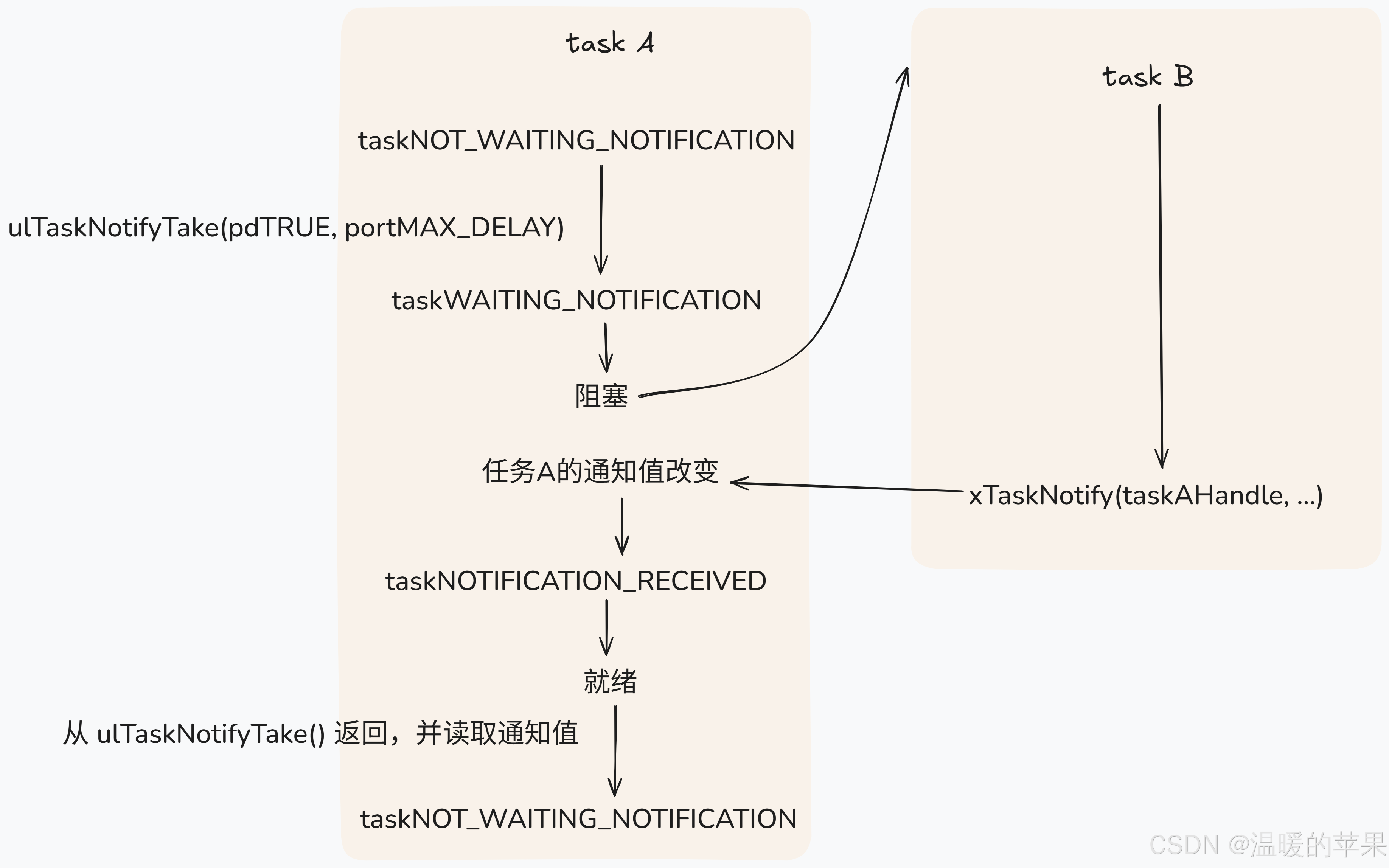

大体流程如下

发送

xTaskGenericNotify是所有任务通知 API（如 xTaskNotify, xTaskNotifyIndexed, xTaskNotifyAndQuery, xTaskNotifyAndQueryIndexed 等）的底层通用函数，用于向一个任务发送通知，并根据不同的操作类型更新该任务的通知值。

BaseType_t xTaskGenericNotify( TaskHandle_t xTaskToNotify,//要通知的任务句柄UBaseType_t uxIndexToNotify,//通知索引号，表示使用哪个通知槽位uint32_t ulValue,//要传递给接收任务的通知值eNotifyAction eAction,//通知操作方式（设置、增加、覆盖写等）uint32_t * pulPreviousNotificationValue )//可选输出参数，返回该任务在此索引上的旧通知值
{TCB_t * pxTCB;BaseType_t xReturn = pdPASS;uint8_t ucOriginalNotifyState;configASSERT( uxIndexToNotify < configTASK_NOTIFICATION_ARRAY_ENTRIES );configASSERT( xTaskToNotify );pxTCB = xTaskToNotify;taskENTER_CRITICAL();{if( pulPreviousNotificationValue != NULL ){	//保存旧的通知值（如果需要）*pulPreviousNotificationValue = pxTCB->ulNotifiedValue[ uxIndexToNotify ];}ucOriginalNotifyState = pxTCB->ucNotifyState[ uxIndexToNotify ];//记录原始通知状态并标记为“已收到”pxTCB->ucNotifyState[ uxIndexToNotify ] = taskNOTIFICATION_RECEIVED;switch( eAction )//根据通知操作类型处理通知值{case eSetBits://将通知值与 ulValue 做按位或操作（常用于标志位）pxTCB->ulNotifiedValue[ uxIndexToNotify ] |= ulValue;break;case eIncrement://通知值自增 1( pxTCB->ulNotifiedValue[ uxIndexToNotify ] )++;break;case eSetValueWithOverwrite://直接设置通知值，不管之前有没有被读取过pxTCB->ulNotifiedValue[ uxIndexToNotify ] = ulValue;break;case eSetValueWithoutOverwrite://如果上次通知还没被读取，则不更新值，返回 pdFAILif( ucOriginalNotifyState != taskNOTIFICATION_RECEIVED ){	//目标任务在此次通知发送之前 没有处于“已收到通知”状态（即上次的通知已经被读取或清除）pxTCB->ulNotifiedValue[ uxIndexToNotify ] = ulValue;}else{xReturn = pdFAIL;}break;case eNoAction://不改变通知值break;default:configASSERT( xTickCount == ( TickType_t ) 0 );break;}if( ucOriginalNotifyState == taskWAITING_NOTIFICATION )//如果目标任务正在等待通知，将其唤醒{listREMOVE_ITEM( &( pxTCB->xStateListItem ) );prvAddTaskToReadyList( pxTCB );configASSERT( listLIST_ITEM_CONTAINER( &( pxTCB->xEventListItem ) ) == NULL );#if ( configUSE_TICKLESS_IDLE != 0 ){prvResetNextTaskUnblockTime();}#endiftaskYIELD_ANY_CORE_IF_USING_PREEMPTION( pxTCB );}}taskEXIT_CRITICAL();return xReturn;
}

vTaskGenericNotifyGiveFromISR() 和 xTaskGenericNotifyFromISR() 都是用于从ISR 中向任务发送通知的函数，vTaskGenericNotifyGiveFromISR() 专门用于递增通知值并可能唤醒任务，而 xTaskGenericNotifyFromISR() 则提供了更多种操作类型来更新通知值，适合需要传递更多控制信息或执行复杂同步逻辑的应用场景。

处理

ulTaskGenericNotifyTake

处理任务通知的通用函数之一，它允许一个任务等待直到其接收到的通知计数值不为零

uint32_t ulTaskGenericNotifyTake( UBaseType_t uxIndexToWaitOn,BaseType_t xClearCountOnExit,//如果设置为非零(pdTRUE)，当函数返回时将清除通知计数；如果设置为零(pdFALSE)，则将通知计数减一TickType_t xTicksToWait )
{uint32_t ulReturn;BaseType_t xAlreadyYielded, xShouldBlock = pdFALSE;configASSERT( uxIndexToWaitOn < configTASK_NOTIFICATION_ARRAY_ENTRIES );vTaskSuspendAll();//挂起调度器{taskENTER_CRITICAL();{if( pxCurrentTCB->ulNotifiedValue[ uxIndexToWaitOn ] == 0U ){	//当前任务的通知计数若为零，则将任务的状态设为taskWAITING_NOTIFICATION并根据超时时间决定是否需要阻塞(xShouldBlock)。pxCurrentTCB->ucNotifyState[ uxIndexToWaitOn ] = taskWAITING_NOTIFICATION;if( xTicksToWait > ( TickType_t ) 0 ){xShouldBlock = pdTRUE;}}}taskEXIT_CRITICAL();if( xShouldBlock == pdTRUE ){	//如果需要阻塞，则将当前任务添加到延迟列表中等待超时或被通知唤醒。prvAddCurrentTaskToDelayedList( xTicksToWait, pdTRUE );}}xAlreadyYielded = xTaskResumeAll();//尝试恢复调度器，并判断是否发生了上下文切换(xAlreadyYielded)if( ( xShouldBlock == pdTRUE ) && ( xAlreadyYielded == pdFALSE ) ){	//如果需要阻塞且没有发生上下文切换，则触发一次任务切换taskYIELD_WITHIN_API();}taskENTER_CRITICAL();{	//获取当前通知值，并根据xClearCountOnExit决定如何更新通知计数ulReturn = pxCurrentTCB->ulNotifiedValue[ uxIndexToWaitOn ];if( ulReturn != 0U ){if( xClearCountOnExit != pdFALSE ){pxCurrentTCB->ulNotifiedValue[ uxIndexToWaitOn ] = ( uint32_t ) 0U;}else{pxCurrentTCB->ulNotifiedValue[ uxIndexToWaitOn ] = ulReturn - ( uint32_t ) 1;}}//将任务状态重置为taskNOT_WAITING_NOTIFICATIONpxCurrentTCB->ucNotifyState[ uxIndexToWaitOn ] = taskNOT_WAITING_NOTIFICATION;}taskEXIT_CRITICAL();return ulReturn;
}

xTaskGenericNotifyWait

等待某个任务的通知被触发（即收到通知），并且支持在进入和退出时对通知值进行位清除操作

BaseType_t xTaskGenericNotifyWait( UBaseType_t uxIndexToWaitOn,uint32_t ulBitsToClearOnEntry,uint32_t ulBitsToClearOnExit,uint32_t * pulNotificationValue,TickType_t xTicksToWait )
{BaseType_t xReturn, xAlreadyYielded, xShouldBlock = pdFALSE;configASSERT( uxIndexToWaitOn < configTASK_NOTIFICATION_ARRAY_ENTRIES );vTaskSuspendAll();{taskENTER_CRITICAL();{	//检查是否已有通知到达if( pxCurrentTCB->ucNotifyState[ uxIndexToWaitOn ] != taskNOTIFICATION_RECEIVED ){	//如果目标任务 尚未收到通知（状态不是 taskNOTIFICATION_RECEIVED）pxCurrentTCB->ulNotifiedValue[ uxIndexToWaitOn ] &= ~ulBitsToClearOnEntry;//清除一些标志位（按位与非）pxCurrentTCB->ucNotifyState[ uxIndexToWaitOn ] = taskWAITING_NOTIFICATION;//设置状态为 taskWAITING_NOTIFICATION，表示开始等待if( xTicksToWait > ( TickType_t ) 0 ){	//如果设置了超时时间，则标记需要阻塞xShouldBlock = pdTRUE;}}}taskEXIT_CRITICAL();if( xShouldBlock == pdTRUE ){	//如果需要阻塞，将任务加入延迟队列prvAddCurrentTaskToDelayedList( xTicksToWait, pdTRUE );}}xAlreadyYielded = xTaskResumeAll();//恢复调度器并判断是否需要调度if( ( xShouldBlock == pdTRUE ) && ( xAlreadyYielded == pdFALSE ) ){	//如果任务被阻塞且没有发生调度，则手动触发一次调度taskYIELD_WITHIN_API();}taskENTER_CRITICAL();{	//再次进入临界区处理通知结果if( pulNotificationValue != NULL ){*pulNotificationValue = pxCurrentTCB->ulNotifiedValue[ uxIndexToWaitOn ];}if( pxCurrentTCB->ucNotifyState[ uxIndexToWaitOn ] != taskNOTIFICATION_RECEIVED ){	//如果仍然没有收到通知, 返回 pdFALSExReturn = pdFALSE;}else{	//如果收到了通知, 根据 ulBitsToClearOnExit 清除指定的标志位pxCurrentTCB->ulNotifiedValue[ uxIndexToWaitOn ] &= ~ulBitsToClearOnExit;xReturn = pdTRUE;}//将通知状态重置为 taskNOT_WAITING_NOTIFICATIONpxCurrentTCB->ucNotifyState[ uxIndexToWaitOn ] = taskNOT_WAITING_NOTIFICATION;}taskEXIT_CRITICAL();return xReturn;
}

清除

xTaskGenericNotifyStateClear

//xTask若是RECEIVED状态， 改为 WAITING 状态
BaseType_t xTaskGenericNotifyStateClear( TaskHandle_t xTask,UBaseType_t uxIndexToClear )
{TCB_t * pxTCB;BaseType_t xReturn;configASSERT( uxIndexToClear < configTASK_NOTIFICATION_ARRAY_ENTRIES );pxTCB = prvGetTCBFromHandle( xTask );taskENTER_CRITICAL();{if( pxTCB->ucNotifyState[ uxIndexToClear ] == taskNOTIFICATION_RECEIVED ){pxTCB->ucNotifyState[ uxIndexToClear ] = taskNOT_WAITING_NOTIFICATION;xReturn = pdPASS;}else{xReturn = pdFAIL;}}taskEXIT_CRITICAL();return xReturn;
}

ulTaskGenericNotifyValueClear

//清除xTask的uxIndexToClear的通知值的ulBitsToClear位(掩码)
uint32_t ulTaskGenericNotifyValueClear( TaskHandle_t xTask,UBaseType_t uxIndexToClear,uint32_t ulBitsToClear );

结构体

StreamBufferHandle_t

typedef struct StreamBufferDef_t * StreamBufferHandle_t;typedef struct StreamBufferDef_t
{volatile size_t xTail;//指向缓冲区中下一个要读取的位置volatile size_t xHead;//指向缓冲区中下一个可以写入的位置size_t xLength;//缓冲区的总大小size_t xTriggerLevelBytes;//触发接收任务唤醒的最小数据量volatile TaskHandle_t xTaskWaitingToReceive;//正在等待接收数据的任务句柄volatile TaskHandle_t xTaskWaitingToSend;//当前正在等待发送数据的任务句柄uint8_t * pucBuffer; //指向实际用于存储数据的缓冲区内存uint8_t ucFlags;//用于标识 Stream Buffer 的状态, 缓冲区类型,分配方式等#if ( configUSE_TRACE_FACILITY == 1 )UBaseType_t uxStreamBufferNumber;//调试用编号，用于跟踪每个 Stream Buffer#endif#if ( configUSE_SB_COMPLETED_CALLBACK == 1 )//发送/接收完成后的回调函数指针StreamBufferCallbackFunction_t pxSendCompletedCallback;StreamBufferCallbackFunction_t pxReceiveCompletedCallback;#endifUBaseType_t uxNotificationIndex;//用于内部通知机制的索引
} StreamBuffer_t;

StreamBufferCallbackFunction_t

typedef void (* StreamBufferCallbackFunction_t)( StreamBufferHandle_t xStreamBuffer,BaseType_t xIsInsideISR,BaseType_t * const pxHigherPriorityTaskWoken );

创建

xStreamBufferGenericCreate

初始化一个StreamBufferHandle_t并返回，设置字段，分配结构体和缓冲区的内存，具体代码就细说了。

StreamBufferHandle_t xStreamBufferGenericCreate( size_t xBufferSizeBytes,size_t xTriggerLevelBytes,BaseType_t xStreamBufferType,//缓冲区类型：普通流缓冲区、消息缓冲区等StreamBufferCallbackFunction_t pxSendCompletedCallback,StreamBufferCallbackFunction_t pxReceiveCompletedCallback );

stream buffer的类型

#define sbTYPE_STREAM_BUFFER             ( ( BaseType_t ) 0 )
#define sbTYPE_MESSAGE_BUFFER            ( ( BaseType_t ) 1 )
#define sbTYPE_STREAM_BATCHING_BUFFER    ( ( BaseType_t ) 2 )

其他创建相关的宏或函数都是调用xStreamBufferGenericCreate，区别在于stream buffer的类型以及带不带回调函数。3种类型×2种带不带回调函数，一共是六个宏（动态，如果加上静态分配的就是12个），关于message_buffer的单独在message_buffer.h里。

删除

vStreamBufferDelete

释放内存
动态创建的就调用vPortFree，因为动态创建的时候结构体和数据区的内存是一起申请的，所以会一起释放。
静态创建的只会清除结构体，但数据区没释放。

void vStreamBufferDelete( StreamBufferHandle_t xStreamBuffer )

发送

size_t xStreamBufferSend( StreamBufferHandle_t xStreamBuffer,const void * pvTxData,size_t xDataLengthBytes,TickType_t xTicksToWait )
{StreamBuffer_t * const pxStreamBuffer = xStreamBuffer;size_t xReturn, xSpace = 0;size_t xRequiredSpace = xDataLengthBytes;TimeOut_t xTimeOut;size_t xMaxReportedSpace = 0;configASSERT( pvTxData );configASSERT( pxStreamBuffer );//计算所需空间，如果是MESSAGE_BUFFER还有加上消息长度占用的空间xMaxReportedSpace = pxStreamBuffer->xLength - ( size_t ) 1;if( ( pxStreamBuffer->ucFlags & sbFLAGS_IS_MESSAGE_BUFFER ) != ( uint8_t ) 0 ){xRequiredSpace += sbBYTES_TO_STORE_MESSAGE_LENGTH;configASSERT( xRequiredSpace > xDataLengthBytes );if( xRequiredSpace > xMaxReportedSpace ){	//直接设置不等待xTicksToWait = ( TickType_t ) 0;}}else{if( xRequiredSpace > xMaxReportedSpace ){	//限制请求的空间不超过最大值xRequiredSpace = xMaxReportedSpace;}}if( xTicksToWait != ( TickType_t ) 0 ){vTaskSetTimeOutState( &xTimeOut );//计时do{	//等待空间可用taskENTER_CRITICAL();{xSpace = xStreamBufferSpacesAvailable( pxStreamBuffer );//当前可用空间 xSpaceif( xSpace < xRequiredSpace ){	//清除旧通知( void ) xTaskNotifyStateClearIndexed( NULL, pxStreamBuffer->uxNotificationIndex );configASSERT( pxStreamBuffer->xTaskWaitingToSend == NULL );pxStreamBuffer->xTaskWaitingToSend = xTaskGetCurrentTaskHandle();}else{taskEXIT_CRITICAL();break;}}taskEXIT_CRITICAL();//等待通知( void ) xTaskNotifyWaitIndexed( pxStreamBuffer->uxNotificationIndex, ( uint32_t ) 0, ( uint32_t ) 0, NULL, xTicksToWait );pxStreamBuffer->xTaskWaitingToSend = NULL;} while( xTaskCheckForTimeOut( &xTimeOut, &xTicksToWait ) == pdFALSE );}if( xSpace == ( size_t ) 0 ){	//重新检查空间（以防在等待期间有其他任务释放了空间）xSpace = xStreamBufferSpacesAvailable( pxStreamBuffer );}xReturn = prvWriteMessageToBuffer( pxStreamBuffer, pvTxData, xDataLengthBytes, xSpace, xRequiredSpace );if( xReturn > ( size_t ) 0 ){	//如果成功写入数据，并且缓冲区中的数据量达到了触发级别，则调用 prvSEND_COMPLETED() 通知等待接收的任务。if( prvBytesInBuffer( pxStreamBuffer ) >= pxStreamBuffer->xTriggerLevelBytes ){prvSEND_COMPLETED( pxStreamBuffer );}}return xReturn;
}

prvWriteBytesToBuffer

向StreamBuffer_t 的缓冲区（环形）写入数据，返回新的 head 位置。

static size_t prvWriteBytesToBuffer( StreamBuffer_t * const pxStreamBuffer,const uint8_t * pucData,size_t xCount,size_t xHead )
{size_t xFirstLength;configASSERT( xCount > ( size_t ) 0 );xFirstLength = configMIN( pxStreamBuffer->xLength - xHead, xCount );//确定从当前位置 xHead 到缓冲区末尾还有多少空间configASSERT( ( xHead + xFirstLength ) <= pxStreamBuffer->xLength );//把数据从 pucData 拷贝xFirstLength长度到 pxStreamBuffer->pucBuffer[xHead] 开始的位置( void ) memcpy( ( void * ) ( &( pxStreamBuffer->pucBuffer[ xHead ] ) ), ( const void * ) pucData, xFirstLength );if( xCount > xFirstLength )//判断是否还有剩余数据需要写入{configASSERT( ( xCount - xFirstLength ) <= pxStreamBuffer->xLength );//如果一次没写完（比如缓冲区末尾空间不足），则从缓冲区起始位置开始写剩下的部分。可以看出在维护一个环形缓冲区( void ) memcpy( ( void * ) pxStreamBuffer->pucBuffer, ( const void * ) &( pucData[ xFirstLength ] ), xCount - xFirstLength );}xHead += xCount;	//更新并返回新的 head 位置if( xHead >= pxStreamBuffer->xLength ){	//如果超出缓冲区总长度，则用减法回绕xHead -= pxStreamBuffer->xLength;}return xHead;
}

prvWriteMessageToBuffer

将一条完整消息写入 Stream Buffer

static size_t prvWriteMessageToBuffer( StreamBuffer_t * const pxStreamBuffer,const void * pvTxData,//数据源地址size_t xDataLengthBytes,//数据长度size_t xSpace,//当前缓冲区可用空间大小size_t xRequiredSpace )//写入该消息所需的最小空间（包括消息头）
{size_t xNextHead = pxStreamBuffer->xHead;configMESSAGE_BUFFER_LENGTH_TYPE xMessageLength;if( ( pxStreamBuffer->ucFlags & sbFLAGS_IS_MESSAGE_BUFFER ) != ( uint8_t ) 0 )//判断是否为 Message Buffer{	//如果是，则每条消息都要先写一个长度字段xMessageLength = ( configMESSAGE_BUFFER_LENGTH_TYPE ) xDataLengthBytes;configASSERT( ( size_t ) xMessageLength == xDataLengthBytes );if( xSpace >= xRequiredSpace ){	//如果有足够空间，把消息长度写入缓冲区头部，更新 xNextHead 指针位置xNextHead = prvWriteBytesToBuffer( pxStreamBuffer, ( const uint8_t * ) &( xMessageLength ), sbBYTES_TO_STORE_MESSAGE_LENGTH, xNextHead );}else{	//直接返回 0，表示本次发送失败。xDataLengthBytes = 0;}}else	//如果不是 Message Buffer{	//不需要写入长度字段xDataLengthBytes = configMIN( xDataLengthBytes, xSpace );}if( xDataLengthBytes != ( size_t ) 0 ){	//实际写入数据，更新 xHead 指针pxStreamBuffer->xHead = prvWriteBytesToBuffer( pxStreamBuffer, ( const uint8_t * ) pvTxData, xDataLengthBytes, xNextHead );}return xDataLengthBytes;
}

prvBytesInBuffer

返回当前缓冲区中的有效数据量

static size_t prvBytesInBuffer( const StreamBuffer_t * const pxStreamBuffer )
{size_t xCount;xCount = pxStreamBuffer->xLength + pxStreamBuffer->xHead;xCount -= pxStreamBuffer->xTail;if( xCount >= pxStreamBuffer->xLength ){xCount -= pxStreamBuffer->xLength;}return xCount;
}

接收

xStreamBufferReceive

size_t xStreamBufferReceive( StreamBufferHandle_t xStreamBuffer,void * pvRxData,size_t xBufferLengthBytes,TickType_t xTicksToWait )
{StreamBuffer_t * const pxStreamBuffer = xStreamBuffer;size_t xReceivedLength = 0, xBytesAvailable, xBytesToStoreMessageLength;configASSERT( pvRxData );configASSERT( pxStreamBuffer );//判断缓冲区类型并设置消息头长度if( ( pxStreamBuffer->ucFlags & sbFLAGS_IS_MESSAGE_BUFFER ) != ( uint8_t ) 0 ){xBytesToStoreMessageLength = sbBYTES_TO_STORE_MESSAGE_LENGTH;}else if( ( pxStreamBuffer->ucFlags & sbFLAGS_IS_BATCHING_BUFFER ) != ( uint8_t ) 0 ){xBytesToStoreMessageLength = pxStreamBuffer->xTriggerLevelBytes;}else{xBytesToStoreMessageLength = 0;}if( xTicksToWait != ( TickType_t ) 0 ){	//进入临界区检查是否有数据可读taskENTER_CRITICAL();{xBytesAvailable = prvBytesInBuffer( pxStreamBuffer );if( xBytesAvailable <= xBytesToStoreMessageLength ){( void ) xTaskNotifyStateClearIndexed( NULL, pxStreamBuffer->uxNotificationIndex );configASSERT( pxStreamBuffer->xTaskWaitingToReceive == NULL );pxStreamBuffer->xTaskWaitingToReceive = xTaskGetCurrentTaskHandle();}}taskEXIT_CRITICAL();if( xBytesAvailable <= xBytesToStoreMessageLength ){( void ) xTaskNotifyWaitIndexed( pxStreamBuffer->uxNotificationIndex, ( uint32_t ) 0, ( uint32_t ) 0, NULL, xTicksToWait );pxStreamBuffer->xTaskWaitingToReceive = NULL;xBytesAvailable = prvBytesInBuffer( pxStreamBuffer );}}else{	//非阻塞模式直接检查数据量xBytesAvailable = prvBytesInBuffer( pxStreamBuffer );}if( xBytesAvailable > xBytesToStoreMessageLength ){	//实际读取数据xReceivedLength = prvReadMessageFromBuffer( pxStreamBuffer, pvRxData, xBufferLengthBytes, xBytesAvailable );if( xReceivedLength != ( size_t ) 0 ){	//如果成功读取到数据，调用 prvRECEIVE_COMPLETED() 通知等待发送的任务可以继续发送了prvRECEIVE_COMPLETED( xStreamBuffer );}}return xReceivedLength;
}
