Pytorch项目实战-2：花卉分类

一、前言

在深度学习项目中，数据集的处理和模型的训练、测试、预测是关键环节。本文将为小白详细介绍从数据集搜集、清洗、划分到模型训练、测试、预测以及模型结构查看的全流程，附带代码和操作说明，让你轻松上手！

二、数据集

二、数据集获取

2.1 自建数据集 vs 公开数据集

自建数据集：适合本科毕设、大作业等小规模场景，可通过自己拍摄或爬虫爬取（如百度图片）构建。
公开数据集：适合专业研究，例如医学图像分割可从ISIC Archive获取。

2.2 百度图片爬虫实战（附代码）

代码文件：data_get.py

# -*- coding: utf-8 -*-
import requests
import re
import osheaders = {'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) Chrome/84.0.4147.125 Safari/537.36'}
name = input('请输入要爬取的图片类别：')
num = 0
num_1 = 0
num_2 = 0
x = input('请输入要爬取的图片数量？（1=60张，2=120张）：')
list_1 = []for i in range(int(x)):name_1 = os.getcwd()name_2 = os.path.join(name_1, 'data/' + name)url = f'https://image.baidu.com/search/flip?tn=baiduimage&ie=utf-8&word={name}&pn={i*30}'res = requests.get(url, headers=headers)htlm_1 = res.content.decode()a = re.findall('"objURL":"(.*?)",', htlm_1)if not os.path.exists(name_2):os.makedirs(name_2)for b in a:try:b_2 = re.findall('https:(.*?)&', b)[0]  # 提取图片URLif b_2 not in list_1:num += 1img = requests.get(b)save_path = os.path.join(name_1, 'data/' + name, f'{name}{num}.jpg')with open(save_path, 'ab') as f:f.write(img.content)print(f'---------正在下载第{num}张图片----------')list_1.append(b_2)else:num_1 += 1  # 统计重复图片except:print(f'---------第{num}张图片无法下载----------')num_2 += 1  # 统计失败图片print(f'下载完成！总共下载{num+num_1+num_2}张，成功{num}张，重复{num_1}张，失败{num_2}张')

使用步骤：

保存代码为data_get.py
运行后输入图片类别（如 “向日葵”）和数量（1 或 2）
图片会自动保存到data/类别名目录下

三、数据集清洗（解决中文路径和坏图问题）

3.1 为什么需要清洗？

OpenCV 对中文路径支持差，会导致读取错误
爬取的图片可能包含损坏文件（无法读取的坏图）

3.2 清洗代码（data_clean.py）

import shutil
import cv2
import os
import numpy as np
from tqdm import tqdmdef cv_imread(file_path, type=-1):"""支持中文路径读取图片"""img = cv2.imdecode(np.fromfile(file_path, dtype=np.uint8), -1)return cv2.cvtColor(img, cv2.COLOR_BGR2GRAY) if type==0 else imgdef cv_imwrite(file_path, cv_img, is_gray=True):"""支持中文路径保存图片"""if len(cv_img.shape)==3 and is_gray:cv_img = cv_img[:, :, 0]cv2.imencode(os.path.splitext(file_path)[1], cv_img)[1].tofile(file_path)def data_clean(src_folder, english_name):clean_folder = f{src_folder}_cleanedif os.path.isdir(clean_folder):shutil.rmtree(clean_folder)  # 删除已存在目录os.mkdir(clean_folder)image_names = os.listdir(src_folder)with tqdm(total=len(image_names)) as pabr:for i, name in enumerate(image_names):path = os.path.join(src_folder, name)try:img = cv_imread(path)# 保存为英文名称的JPG图片save_name = f{english_name}_{i}.jpgsave_path = os.path.join(clean_folder, save_name)cv_imwrite(save_path, img, is_gray=False)except:print(f{name}是坏图)pabr.update(1)if __name__ == __main__:data_clean(src_folder=D:/数据集/向日葵, english_name=sunflowers)  # 替换为你的路径

运行结果：

生成原目录_cleaned文件夹，存放清洗后的图片
自动跳过坏图，重命名为英文（如sunflowers_0.jpg）

四、数据集划分（6:2:2 比例）

4.1 适用场景

当数据集未区分训练集、验证集、测试集时使用
要求：图片按类别存放在子目录下（如data/向日葵, data/玫瑰）

4.2 划分代码（data_split.py）

import os
import shutil
import random
from tqdm import tqdmdef split_data(src_dir, save_dir, ratios=[0.6, 0.2, 0.2]):os.makedirs(save_dir, exist_ok=True)categories = os.listdir(src_dir)for cate in categories:cate_path = os.path.join(src_dir, cate)imgs = os.listdir(cate_path)random.shuffle(imgs)total = len(imgs)# 计算划分索引train_idx = int(total * ratios[0])val_idx = train_idx + int(total * ratios[1])# 划分数据集for phase, start, end in zip(['train', 'val', 'test'], [0, train_idx, val_idx]):phase_dir = os.path.join(save_dir, phase, cate)os.makedirs(phase_dir, exist_ok=True)for img in tqdm(imgs[start:end], desc=fProcessing {phase} {cate}):src_img = os.path.join(cate_path, img)dest_img = os.path.join(phase_dir, img)shutil.copyfile(src_img, dest_img)if __name__ == __main__:src_dir = D:/数据集_cleaned  # 清洗后的数据集路径save_dir = D:/数据集_split  # 划分结果保存路径split_data(src_dir, save_dir)

关键操作：

修改src_dir为清洗后的数据集路径
运行后生成save_dir/split目录，包含train/val/test子目录
比例可在ratios参数中调整（总和需为 1）

五、模型训练（以 ResNet50 为例）

5.1 准备工作

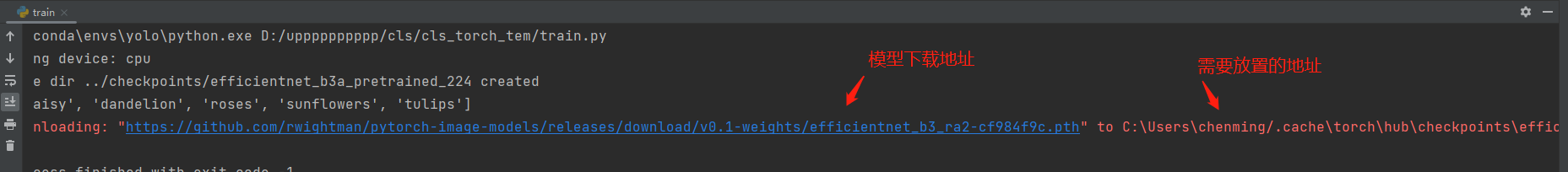

一开始执行之前会有一个会需要下载预训练模型到指定目录，由于众所周知的原因，大家需要提前先把模型下载下来放置到这个目录，这个大家自行探索。

右键直接运行train.py就可以开始训练模型，代码首先会输出模型的基本信息（模型有几个卷积层、池化层、全连接层构成）和运行的记录。

下载预训练模型（如 ResNet50），放入指定目录（代码中标记TODO）
确保数据集划分正确（训练集路径需对应）

5.2 开始训练

from torchutils import *
from torchvision import datasets, models, transforms
import os.path as osp
import os
if torch.cuda.is_available():device = torch.device('cuda:0')
else:device = torch.device('cpu')
print(f'Using device: {device}')
# 固定随机种子，保证实验结果是可以复现的
seed = 42
os.environ['PYTHONHASHSEED'] = str(seed)
np.random.seed(seed)
torch.manual_seed(seed)
torch.cuda.manual_seed(seed)
torch.backends.cudnn.deterministic = True
torch.backends.cudnn.benchmark = True
data_path = r"G:\code\2023_pytorch110_classification_42-master\flowers_5_split" # todo 数据集路径
# 注： 执行之前请先划分数据集
# 超参数设置
params = {# 'model': 'vit_tiny_patch16_224',  # 选择预训练模型# 'model': 'resnet50d',  # 选择预训练模型'model': 'efficientnet_b3a',  # 选择预训练模型"img_size": 224,  # 图片输入大小"train_dir": osp.join(data_path, "train"),  # todo 训练集路径"val_dir": osp.join(data_path, "val"),  # todo 验证集路径'device': device,  # 设备'lr': 1e-3,  # 学习率'batch_size': 4,  # 批次大小'num_workers': 0,  # 进程'epochs': 10,  # 轮数"save_dir": "../checkpoints/",  # todo 保存路径"pretrained": True,"num_classes": len(os.listdir(osp.join(data_path, "train"))),  # 类别数目, 自适应获取类别数目'weight_decay': 1e-5  # 学习率衰减
}# 定义模型
class SELFMODEL(nn.Module):def __init__(self, model_name=params['model'], out_features=params['num_classes'],pretrained=True):super().__init__()self.model = timm.create_model(model_name, pretrained=pretrained)  # 从预训练的库中加载模型# self.model = timm.create_model(model_name, pretrained=pretrained, checkpoint_path="pretrained/resnet50d_ra2-464e36ba.pth")  # 从预训练的库中加载模型# classifierif model_name[:3] == "res":n_features = self.model.fc.in_features  # 修改全连接层数目self.model.fc = nn.Linear(n_features, out_features)  # 修改为本任务对应的类别数目elif model_name[:3] == "vit":n_features = self.model.head.in_features  # 修改全连接层数目self.model.head = nn.Linear(n_features, out_features)  # 修改为本任务对应的类别数目else:n_features = self.model.classifier.in_featuresself.model.classifier = nn.Linear(n_features, out_features)# resnet修改最后的全链接层print(self.model)  # 返回模型def forward(self, x):  # 前向传播x = self.model(x)return x# 定义训练流程
def train(train_loader, model, criterion, optimizer, epoch, params):metric_monitor = MetricMonitor()  # 设置指标监视器model.train()  # 模型设置为训练模型nBatch = len(train_loader)stream = tqdm(train_loader)for i, (images, target) in enumerate(stream, start=1):  # 开始训练images = images.to(params['device'], non_blocking=True)  # 加载数据target = target.to(params['device'], non_blocking=True)  # 加载模型output = model(images)  # 数据送入模型进行前向传播loss = criterion(output, target.long())  # 计算损失f1_macro = calculate_f1_macro(output, target)  # 计算f1分数recall_macro = calculate_recall_macro(output, target)  # 计算recall分数acc = accuracy(output, target)  # 计算准确率分数metric_monitor.update('Loss', loss.item())  # 更新损失metric_monitor.update('F1', f1_macro)  # 更新f1metric_monitor.update('Recall', recall_macro)  # 更新recallmetric_monitor.update('Accuracy', acc)  # 更新准确率optimizer.zero_grad()  # 清空学习率loss.backward()  # 损失反向传播optimizer.step()  # 更新优化器lr = adjust_learning_rate(optimizer, epoch, params, i, nBatch)  # 调整学习率stream.set_description(  # 更新进度条"Epoch: {epoch}. Train.      {metric_monitor}".format(epoch=epoch,metric_monitor=metric_monitor))return metric_monitor.metrics['Accuracy']["avg"], metric_monitor.metrics['Loss']["avg"]  # 返回结果# 定义验证流程
def validate(val_loader, model, criterion, epoch, params):metric_monitor = MetricMonitor()  # 验证流程model.eval()  # 模型设置为验证格式stream = tqdm(val_loader)  # 设置进度条with torch.no_grad():  # 开始推理for i, (images, target) in enumerate(stream, start=1):images = images.to(params['device'], non_blocking=True)  # 读取图片target = target.to(params['device'], non_blocking=True)  # 读取标签output = model(images)  # 前向传播loss = criterion(output, target.long())  # 计算损失f1_macro = calculate_f1_macro(output, target)  # 计算f1分数recall_macro = calculate_recall_macro(output, target)  # 计算recall分数acc = accuracy(output, target)  # 计算accmetric_monitor.update('Loss', loss.item())  # 后面基本都是更新进度条的操作metric_monitor.update('F1', f1_macro)metric_monitor.update("Recall", recall_macro)metric_monitor.update('Accuracy', acc)stream.set_description("Epoch: {epoch}. Validation. {metric_monitor}".format(epoch=epoch,metric_monitor=metric_monitor))return metric_monitor.metrics['Accuracy']["avg"], metric_monitor.metrics['Loss']["avg"]# 展示训练过程的曲线
def show_loss_acc(acc, loss, val_acc, val_loss, sava_dir):# 从history中提取模型训练集和验证集准确率信息和误差信息# 按照上下结构将图画输出plt.figure(figsize=(8, 8))plt.subplot(2, 1, 1)plt.plot(acc, label='Training Accuracy')plt.plot(val_acc, label='Validation Accuracy')plt.legend(loc='lower right')plt.ylabel('Accuracy')plt.ylim([min(plt.ylim()), 1])plt.title('Training and Validation Accuracy')plt.subplot(2, 1, 2)plt.plot(loss, label='Training Loss')plt.plot(val_loss, label='Validation Loss')plt.legend(loc='upper right')plt.ylabel('Cross Entropy')plt.title('Training and Validation Loss')plt.xlabel('epoch')# 保存在savedir目录下。save_path = osp.join(save_dir, "results.png")plt.savefig(save_path, dpi=100)if __name__ == '__main__':accs = []losss = []val_accs = []val_losss = []data_transforms = get_torch_transforms(img_size=params["img_size"])  # 获取图像预处理方式train_transforms = data_transforms['train']  # 训练集数据处理方式valid_transforms = data_transforms['val']  # 验证集数据集处理方式train_dataset = datasets.ImageFolder(params["train_dir"], train_transforms)  # 加载训练集valid_dataset = datasets.ImageFolder(params["val_dir"], valid_transforms)  # 加载验证集if params['pretrained'] == True:save_dir = osp.join(params['save_dir'], params['model']+"_pretrained_" + str(params["img_size"]))  # 设置模型保存路径else:save_dir = osp.join(params['save_dir'], params['model'] + "_nopretrained_" + str(params["img_size"]))  # 设置模型保存路径if not osp.isdir(save_dir):  # 如果保存路径不存在的话就创建os.makedirs(save_dir)  #print("save dir {} created".format(save_dir))train_loader = DataLoader(  # 按照批次加载训练集train_dataset, batch_size=params['batch_size'], shuffle=True,num_workers=params['num_workers'], pin_memory=True,)val_loader = DataLoader(  # 按照批次加载验证集valid_dataset, batch_size=params['batch_size'], shuffle=False,num_workers=params['num_workers'], pin_memory=True,)print(train_dataset.classes)model = SELFMODEL(model_name=params['model'], out_features=params['num_classes'],pretrained=params['pretrained']) # 加载模型# model = nn.DataParallel(model)  # 模型并行化，提高模型的速度# resnet50d_1epochs_accuracy0.50424_weights.pthmodel = model.to(params['device'])  # 模型部署到设备上criterion = nn.CrossEntropyLoss().to(params['device'])  # 设置损失函数optimizer = torch.optim.AdamW(model.parameters(), lr=params['lr'], weight_decay=params['weight_decay'])  # 设置优化器# 损失函数和优化器可以自行设置修改。# criterion = nn.CrossEntropyLoss().to(params['device'])  # 设置损失函数# optimizer = torch.optim.AdamW(model.parameters(), lr=params['lr'], weight_decay=params['weight_decay'])  # 设置优化器best_acc = 0.0  # 记录最好的准确率# 只保存最好的那个模型。for epoch in range(1, params['epochs'] + 1):  # 开始训练acc, loss = train(train_loader, model, criterion, optimizer, epoch, params)val_acc, val_loss = validate(val_loader, model, criterion, epoch, params)accs.append(acc)losss.append(loss)val_accs.append(val_acc)val_losss.append(val_loss)if val_acc >= best_acc:# 保存的时候设置一个保存的间隔，或者就按照目前的情况，如果前面的比后面的效果好，就保存一下。# 按照间隔保存的话得不到最好的模型。save_path = osp.join(save_dir, f"{params['model']}_{epoch}epochs_accuracy{acc:.5f}_weights.pth")torch.save(model.state_dict(), save_path)best_acc = val_accshow_loss_acc(accs, losss, val_accs, val_losss, save_dir)print("训练已完成，模型和训练日志保存在: {}".format(save_dir))

运行结果：

输出模型结构（卷积层 / 池化层 / 全连接层）
保存训练曲线（acc.png和loss.png）
自动保存最优模型到指定目录

六、模型测试与预测

6.1 测试代码（test.py）

python

from torchutils import *
from torchvision import datasets, models, transforms
import os.path as osp
import os
from train import SELFMODELif torch.cuda.is_available():device = torch.device('cuda:0')
else:device = torch.device('cpu')
print(f'Using device: {device}')
# 固定随机种子，保证实验结果是可以复现的
seed = 42
os.environ['PYTHONHASHSEED'] = str(seed)
np.random.seed(seed)
torch.manual_seed(seed)
torch.cuda.manual_seed(seed)
torch.backends.cudnn.deterministic = True
torch.backends.cudnn.benchmark = Truedata_path = "../flowers_data_split"  # todo 修改为数据集根目录
model_path = "../checkpoints/resnet50d_pretrained_224/resnet50d_10epochs_accuracy0.99501_weights.pth"  # todo 模型地址
model_name = 'resnet50d'  # todo 模型名称
img_size = 224  # todo 数据集训练时输入模型的大小
# 注： 执行之前请先划分数据集
# 超参数设置
params = {# 'model': 'vit_tiny_patch16_224',  # 选择预训练模型# 'model': 'efficientnet_b3a',  # 选择预训练模型'model': model_name,  # 选择预训练模型"img_size": img_size,  # 图片输入大小"test_dir": osp.join(data_path, "test"),  # todo 测试集子目录'device': device,  # 设备'batch_size': 4,  # 批次大小'num_workers': 0,  # 进程"num_classes": len(os.listdir(osp.join(data_path, "train"))),  # 类别数目, 自适应获取类别数目
}def test(val_loader, model, params, class_names):metric_monitor = MetricMonitor()  # 验证流程model.eval()  # 模型设置为验证格式stream = tqdm(val_loader)  # 设置进度条# 对模型分开进行推理test_real_labels = []test_pre_labels = []with torch.no_grad():  # 开始推理for i, (images, target) in enumerate(stream, start=1):images = images.to(params['device'], non_blocking=True)  # 读取图片target = target.to(params['device'], non_blocking=True)  # 读取标签output = model(images)  # 前向传播# loss = criterion(output, target.long())  # 计算损失# print(output)target_numpy = target.cpu().numpy()y_pred = torch.softmax(output, dim=1)y_pred = torch.argmax(y_pred, dim=1).cpu().numpy()test_real_labels.extend(target_numpy)test_pre_labels.extend(y_pred)# print(target_numpy)# print(y_pred)f1_macro = calculate_f1_macro(output, target)  # 计算f1分数recall_macro = calculate_recall_macro(output, target)  # 计算recall分数acc = accuracy(output, target)  # 计算acc# metric_monitor.update('Loss', loss.item())  # 后面基本都是更新进度条的操作metric_monitor.update('F1', f1_macro)metric_monitor.update("Recall", recall_macro)metric_monitor.update('Accuracy', acc)stream.set_description("mode: {epoch}.  {metric_monitor}".format(epoch="test",metric_monitor=metric_monitor))class_names_length = len(class_names)heat_maps = np.zeros((class_names_length, class_names_length))for test_real_label, test_pre_label in zip(test_real_labels, test_pre_labels):heat_maps[test_real_label][test_pre_label] = heat_maps[test_real_label][test_pre_label] + 1# print(heat_maps)heat_maps_sum = np.sum(heat_maps, axis=1).reshape(-1, 1)# print(heat_maps_sum)# print()heat_maps_float = heat_maps / heat_maps_sum# print(heat_maps_float)# title, x_labels, y_labels, harvestshow_heatmaps(title="heatmap", x_labels=class_names, y_labels=class_names, harvest=heat_maps_float,save_name="record/heatmap_{}.png".format(model_name))# 加上模型名称return metric_monitor.metrics['Accuracy']["avg"], metric_monitor.metrics['F1']["avg"], \metric_monitor.metrics['Recall']["avg"]def show_heatmaps(title, x_labels, y_labels, harvest, save_name):# 这里是创建一个画布fig, ax = plt.subplots()# cmap https://blog.csdn.net/ztf312/article/details/102474190im = ax.imshow(harvest, cmap="OrRd")# 这里是修改标签# We want to show all ticks...ax.set_xticks(np.arange(len(y_labels)))ax.set_yticks(np.arange(len(x_labels)))# ... and label them with the respective list entriesax.set_xticklabels(y_labels)ax.set_yticklabels(x_labels)# 因为x轴的标签太长了，需要旋转一下，更加好看# Rotate the tick labels and set their alignment.plt.setp(ax.get_xticklabels(), rotation=45, ha="right",rotation_mode="anchor")# 添加每个热力块的具体数值# Loop over data dimensions and create text annotations.for i in range(len(x_labels)):for j in range(len(y_labels)):text = ax.text(j, i, round(harvest[i, j], 2),ha="center", va="center", color="black")ax.set_xlabel("Predict label")ax.set_ylabel("Actual label")ax.set_title(title)fig.tight_layout()plt.colorbar(im)plt.savefig(save_name, dpi=100)# plt.show()if __name__ == '__main__':data_transforms = get_torch_transforms(img_size=params["img_size"])  # 获取图像预处理方式# train_transforms = data_transforms['train']  # 训练集数据处理方式valid_transforms = data_transforms['val']  # 验证集数据集处理方式# valid_dataset = datasets.ImageFolder(params["val_dir"], valid_transforms)  # 加载验证集# print(valid_dataset)test_dataset = datasets.ImageFolder(params["test_dir"], valid_transforms)class_names = test_dataset.classesprint(class_names)# valid_dataset = datasets.ImageFolder(params["val_dir"], valid_transforms)  # 加载验证集test_loader = DataLoader(  # 按照批次加载训练集test_dataset, batch_size=params['batch_size'], shuffle=True,num_workers=params['num_workers'], pin_memory=True,)# 加载模型model = SELFMODEL(model_name=params['model'], out_features=params['num_classes'],pretrained=False)  # 加载模型结构，加载模型结构过程中pretrained设置为False即可。weights = torch.load(model_path)model.load_state_dict(weights)model.eval()model.to(device)# 指标上的测试结果包含三个方面，分别是acc f1 和 recall, 除此之外，应该还有相应的热力图输出，整体会比较好看一些。acc, f1, recall = test(test_loader, model, params, class_names)print("测试结果：")print(f"acc: {acc}, F1: {f1}, recall: {recall}")print("测试完成，heatmap保存在{}下".format("record"))

6.2 图片预测（predict.py）

import torch
# from train_resnet import SelfNet
from train import SELFMODEL
import os
import os.path as osp
import shutil
import torch.nn as nn
from PIL import Image
from torchutils import get_torch_transformsif torch.cuda.is_available():device = torch.device('cuda')
else:device = torch.device('cpu')model_path = "../checkpoints/resnet50d_pretrained_224/resnet50d_10epochs_accuracy0.99501_weights.pth"  # todo  模型路径
classes_names = ['daisy', 'dandelion', 'roses', 'sunflowers', 'tulips']  # todo 类名
img_size = 224  # todo 图片大小
model_name = "resnet50d"  # todo 模型名称
num_classes = len(classes_names)  # todo 类别数目def predict_batch(model_path, target_dir, save_dir):data_transforms = get_torch_transforms(img_size=img_size)valid_transforms = data_transforms['val']# 加载网络model = SELFMODEL(model_name=model_name, out_features=num_classes, pretrained=False)# model = nn.DataParallel(model)weights = torch.load(model_path)model.load_state_dict(weights)model.eval()model.to(device)# 读取图片image_names = os.listdir(target_dir)for i, image_name in enumerate(image_names):image_path = osp.join(target_dir, image_name)img = Image.open(image_path)img = valid_transforms(img)img = img.unsqueeze(0)img = img.to(device)output = model(img)label_id = torch.argmax(output).item()predict_name = classes_names[label_id]save_path = osp.join(save_dir, predict_name)if not osp.isdir(save_path):os.makedirs(save_path)shutil.copy(image_path, save_path)print(f"{i + 1}: {image_name} result {predict_name}")def predict_single(model_path, image_path):data_transforms = get_torch_transforms(img_size=img_size)# train_transforms = data_transforms['train']valid_transforms = data_transforms['val']# 加载网络model = SELFMODEL(model_name=model_name, out_features=num_classes, pretrained=False)# model = nn.DataParallel(model)weights = torch.load(model_path)model.load_state_dict(weights)model.eval()model.to(device)# 读取图片img = Image.open(image_path)img = valid_transforms(img)img = img.unsqueeze(0)img = img.to(device)output = model(img)label_id = torch.argmax(output).item()predict_name = classes_names[label_id]print(f"{image_path}'s result is {predict_name}")if __name__ == '__main__':# 批量预测函数predict_batch(model_path=model_path,target_dir="D:/upppppppppp/cls/cls_torch_tem/images/test_imgs/mini",save_dir="D:/upppppppppp/cls/cls_torch_tem/images/test_imgs/mini_result")# 单张图片预测函数# predict_single(model_path=model_path, image_path="images/test_imgs/506659320_6fac46551e.jpg")

七、模型结构与参数量查看

7.1 查看模型结构（Netron 工具）

将模型转换为 ONNX 格式（代码utils/export_onnx.py）：

import numpy as np
import onnxruntime
from PIL import Imageclass_names = {'0': '雏菊', '1': '蒲公英', '2': '玫瑰', '3': '向日葵', '4': '郁金香'}# transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])#均值，标准差
# 预测图片
session = onnxruntime.InferenceSession(r"C:\Users\nongc\Desktop\ImageClassifier.onnx")def process_image(image_path):# 读取测试数据img = Image.open(image_path)# Resize,thumbnail方法只能进行缩小，所以进行了判断if img.size[0] > img.size[1]:img.thumbnail((10000, 256))else:img.thumbnail((256, 10000))# Crop操作left_margin = (img.width - 224) / 2bottom_margin = (img.height - 224) / 2right_margin = left_margin + 224top_margin = bottom_margin + 224img = img.crop((left_margin, bottom_margin, right_margin,top_margin))# img.save('thumb.jpg')# 相同的预处理方法img = np.array(img) / 255mean = np.array([0.485, 0.456, 0.406])  # provided meanstd = np.array([0.229, 0.224, 0.225])  # provided stdimg = (img - mean) / std# 注意颜色通道应该放在第一个位置img = img.transpose((2, 0, 1))return imgimage_path = r"C:\Users\nongc\Desktop\百度云下载\2023_pytorch110_classification_42-master\2023_pytorch110_classification_42-master\flowers_5\roses\99383371_37a5ac12a3_n.jpg"  # '1':
img = process_image(image_path)
img = np.expand_dims(img, 0)outputs = session.run([], {"modelInput": img.astype('float32')})
result_index = int(np.argmax(np.squeeze(outputs)))
result = class_names['%d' % result_index]  # 获得对应的名称print(np.squeeze(outputs), '\n', img.shape)
print(f"预测种类为： {result} 对应索引为：{np.argmax(np.squeeze(outputs))}")
# print(np.min(outputs),np.argmin(np.squeeze(outputs)),np.max(outputs))

打开Netron 官网，拖入resnet50.onnx即可可视化模型结构。

7.2 计算参数量（get_flops.py）

import torch
from torchstat import stat
from train import SELFMODELif torch.cuda.is_available():device = torch.device('cuda')
else:device = torch.device('cpu')
model_name = "resnet50d" # todo 模型名称
num_classes = 5 # todo 类别数目
model_path = "../../checkpoints/resnet50d_pretrained_224/resnet50d_10epochs_accuracy0.99501_weights.pth" # todo 模型地址
model = SELFMODEL(model_name=model_name, out_features=num_classes, pretrained=False)
weights = torch.load(model_path)
model.load_state_dict(weights)
model.eval()
stat(model, (3, 224, 224)) # 后面的224表示模型的输入大小
