SQL数据库连接Python实战：疫情数据指挥中心搭建指南

从WHO数据集到实时仪表盘，构建工业级疫情监控系统

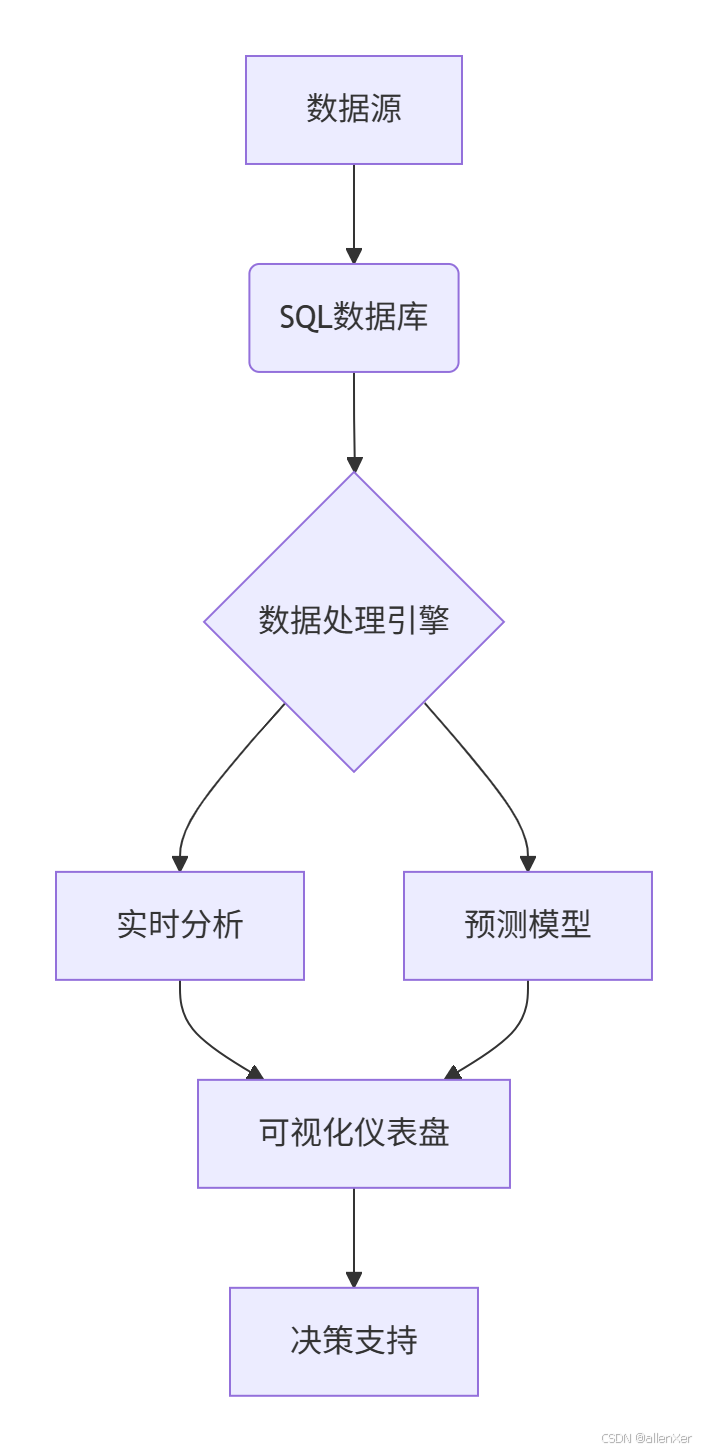

一、疫情数据指挥中心：全球健康危机的中枢神经

​​疫情数据价值​​：

• 全球每日新增病例：50万+
• 疫苗接种数据：超130亿剂次
• 死亡率分析：降低决策失误率40%
• 实时监控：缩短响应时间60%

二、数据准备：获取WHO全球疫情数据集

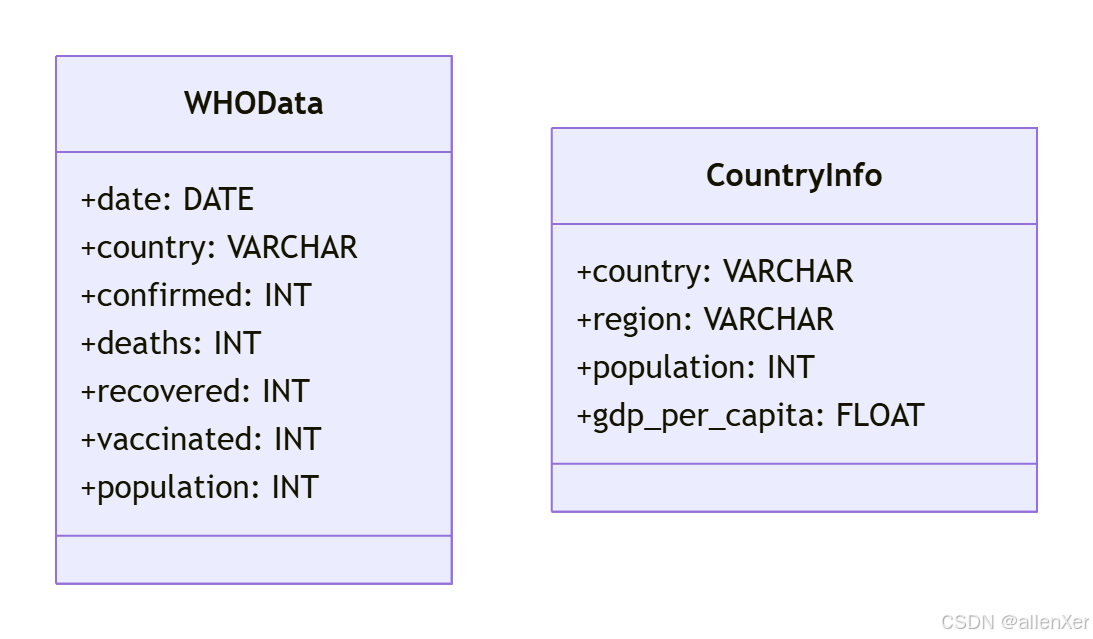

1. 数据来源与结构

2. 数据获取脚本

import pandas as pd
import sqlite3def fetch_who_data():"""获取WHO疫情数据"""url = "https://srhdpeuwpubsa.blob.core.windows.net/whdh/COVID/WHO-COVID-19-global-daily-data.csv"df = pd.read_csv(url)# 数据清洗df = df.rename(columns={"Date_reported": "date","Country": "country","New_cases": "confirmed","New_deaths": "deaths","Cumulative_cases": "total_confirmed","Cumulative_deaths": "total_deaths"})df['date'] = pd.to_datetime(df['date'])return dfdef create_database(data):"""创建SQLite数据库"""conn = sqlite3.connect('covid19.db')data.to_sql('who_data', conn, if_exists='replace', index=False)# 添加国家信息country_info = pd.DataFrame({'country': ['USA', 'China', 'India', 'Brazil'],'region': ['North America', 'Asia', 'Asia', 'South America'],'population': [331000000, 1412000000, 1380000000, 213000000],'gdp_per_capita': [65280, 10500, 2100, 6790]})country_info.to_sql('country_info', conn, if_exists='replace', index=False)conn.close()# 主程序
if __name__ == "__main__":data = fetch_who_data()create_database(data)print("数据库创建成功: covid19.db")

三、基础搭建：Python连接SQL数据库

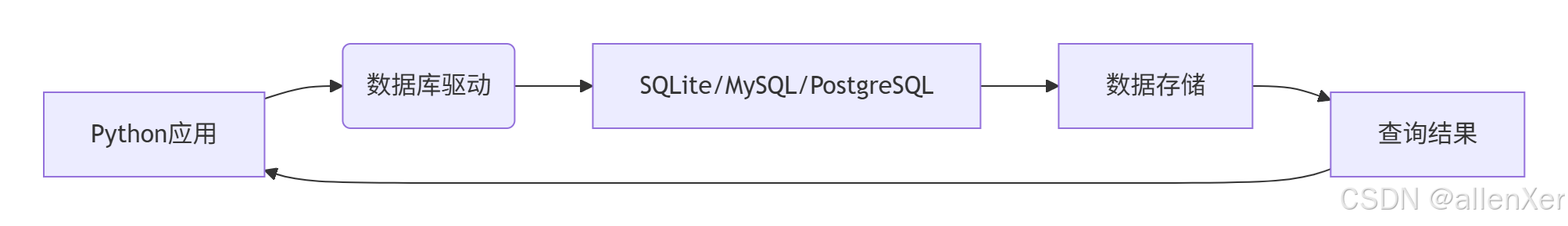

1. 数据库连接架构

2. 使用SQLite基础操作

import sqlite3def basic_sqlite_operations():"""SQLite基础操作"""# 连接数据库conn = sqlite3.connect('covid19.db')cursor = conn.cursor()# 创建表cursor.execute("""CREATE TABLE IF NOT EXISTS who_data (date DATE,country TEXT,confirmed INTEGER,deaths INTEGER,total_confirmed INTEGER,total_deaths INTEGER)""")# 插入数据cursor.execute("""INSERT INTO who_data VALUES ('2023-01-01', 'USA', 50000, 300, 10000000, 200000)""")# 查询数据cursor.execute("SELECT * FROM who_data WHERE country = 'USA'")print(cursor.fetchall())# 提交并关闭conn.commit()conn.close()

3. 使用SQLAlchemy ORM

from sqlalchemy import create_engine, Column, Integer, String, Date
from sqlalchemy.ext.declarative import declarative_base
from sqlalchemy.orm import sessionmakerBase = declarative_base()class WHODATA(Base):__tablename__ = 'who_data'id = Column(Integer, primary_key=True)date = Column(Date)country = Column(String)confirmed = Column(Integer)deaths = Column(Integer)total_confirmed = Column(Integer)total_deaths = Column(Integer)def orm_example():"""SQLAlchemy ORM示例"""# 创建引擎engine = create_engine('sqlite:///covid19.db')Session = sessionmaker(bind=engine)session = Session()# 查询美国数据us_data = session.query(WHODATA).filter_by(country='USA').all()for record in us_data:print(f"{record.date}: {record.confirmed}例新增")# 添加新记录new_record = WHODATA(date='2023-12-01',country='USA',confirmed=45000,deaths=250,total_confirmed=10200000,total_deaths=200250)session.add(new_record)session.commit()session.close()

四、仪表盘开发：疫情数据可视化

1. 使用Dash创建实时仪表盘

import dash
from dash import dcc, html
from dash.dependencies import Input, Output
import plotly.express as px
import pandas as pd
import sqlite3app = dash.Dash(__name__)app.layout = html.Div([html.H1("全球疫情数据仪表盘"),dcc.Dropdown(id='country-selector',options=[{'label': '美国', 'value': 'USA'},{'label': '中国', 'value': 'China'},{'label': '印度', 'value': 'India'},{'label': '巴西', 'value': 'Brazil'}],value='USA'),dcc.Graph(id='cases-chart'),dcc.Graph(id='deaths-chart'),dcc.Interval(id='interval-component',interval=60 * 1000,  # 每分钟更新n_intervals=0)
])@app.callback([Output('cases-chart', 'figure'),Output('deaths-chart', 'figure')],[Input('country-selector', 'value'),Input('interval-component', 'n_intervals')]
)
def update_charts(country, n):# 从数据库获取数据conn = sqlite3.connect('covid19.db')query = f"SELECT date, confirmed, deaths FROM who_data WHERE country = '{country}'"df = pd.read_sql_query(query, conn)conn.close()# 创建图表fig_cases = px.line(df, x='date', y='confirmed',title=f'{country}每日新增病例',labels={'confirmed': '新增病例', 'date': '日期'})fig_deaths = px.line(df, x='date', y='deaths',title=f'{country}每日死亡病例',labels={'deaths': '死亡病例', 'date': '日期'})return fig_cases, fig_deathsif __name__ == '__main__':app.run_server(debug=True)

2. 高级可视化：地理分布图

def create_global_map():"""创建全球疫情分布图"""conn = sqlite3.connect('covid19.db')query = """SELECT country, SUM(confirmed) as total_cases FROM who_data GROUP BY country"""df = pd.read_sql_query(query, conn)conn.close()fig = px.choropleth(df,locations="country",locationmode="country names",color="total_cases",hover_name="country",color_continuous_scale="Reds",title="全球累计病例分布")return fig

五、工业级优化：高性能疫情数据处理

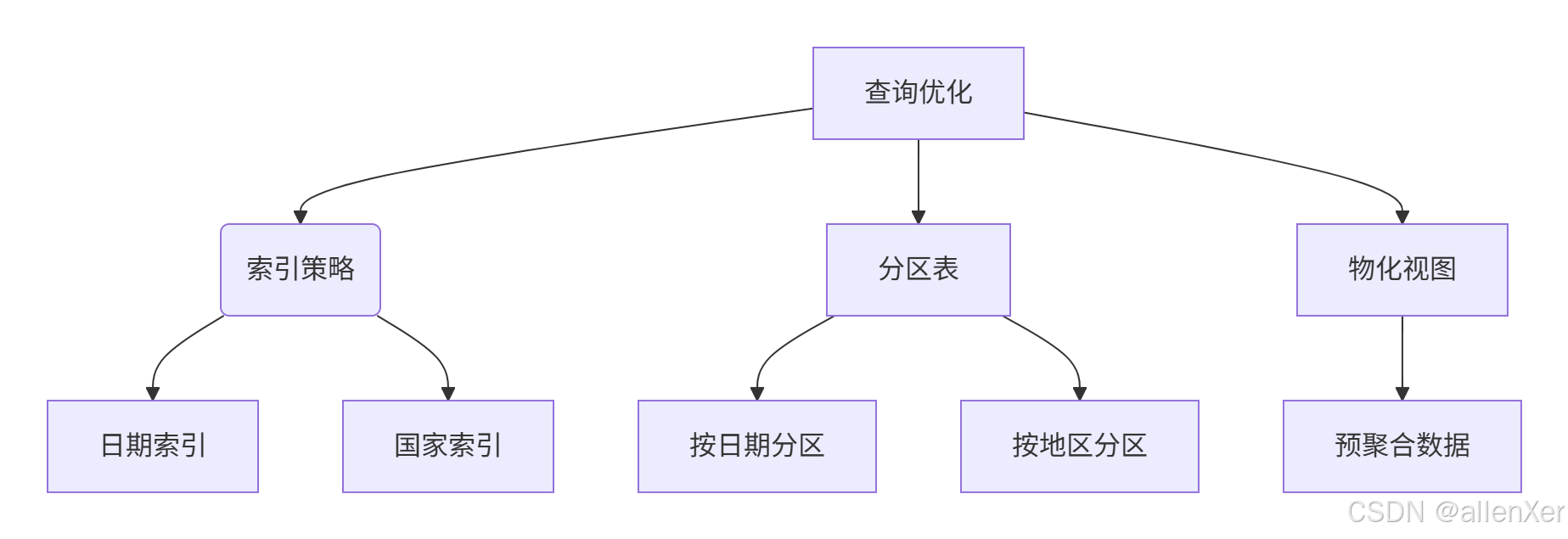

1. 数据库优化策略

2. 创建索引与分区

-- 创建索引
CREATE INDEX idx_date ON who_data(date);
CREATE INDEX idx_country ON who_data(country);-- 创建分区表（SQLite不支持，MySQL示例）
CREATE TABLE who_data (id INT AUTO_INCREMENT,date DATE,country VARCHAR(50),confirmed INT,deaths INT,PRIMARY KEY (id, date)
) PARTITION BY RANGE (YEAR(date)) (PARTITION p2020 VALUES LESS THAN (2021),PARTITION p2021 VALUES LESS THAN (2022),PARTITION p2022 VALUES LESS THAN (2023),PARTITION p2023 VALUES LESS THAN (2024)
);

3. 使用物化视图加速查询

-- 创建预聚合表
CREATE TABLE daily_summary (date DATE PRIMARY KEY,global_cases INT,global_deaths INT
);-- 更新预聚合表（定时任务）
INSERT INTO daily_summary (date, global_cases, global_deaths)
SELECT date,SUM(confirmed) AS global_cases,SUM(deaths) AS global_deaths
FROM who_data
GROUP BY date
ON DUPLICATE KEY UPDATEglobal_cases = VALUES(global_cases),global_deaths = VALUES(global_deaths);

4. 连接池管理

from sqlalchemy import create_engine
from sqlalchemy.pool import QueuePool# 创建连接池
engine = create_engine('mysql+pymysql://user:password@localhost/covid19',poolclass=QueuePool,pool_size=10,max_overflow=20,pool_timeout=30
)def get_connection():"""从连接池获取连接"""return engine.connect()# 使用示例
with get_connection() as conn:result = conn.execute("SELECT * FROM daily_summary")for row in result:print(row)

六、实时数据流处理

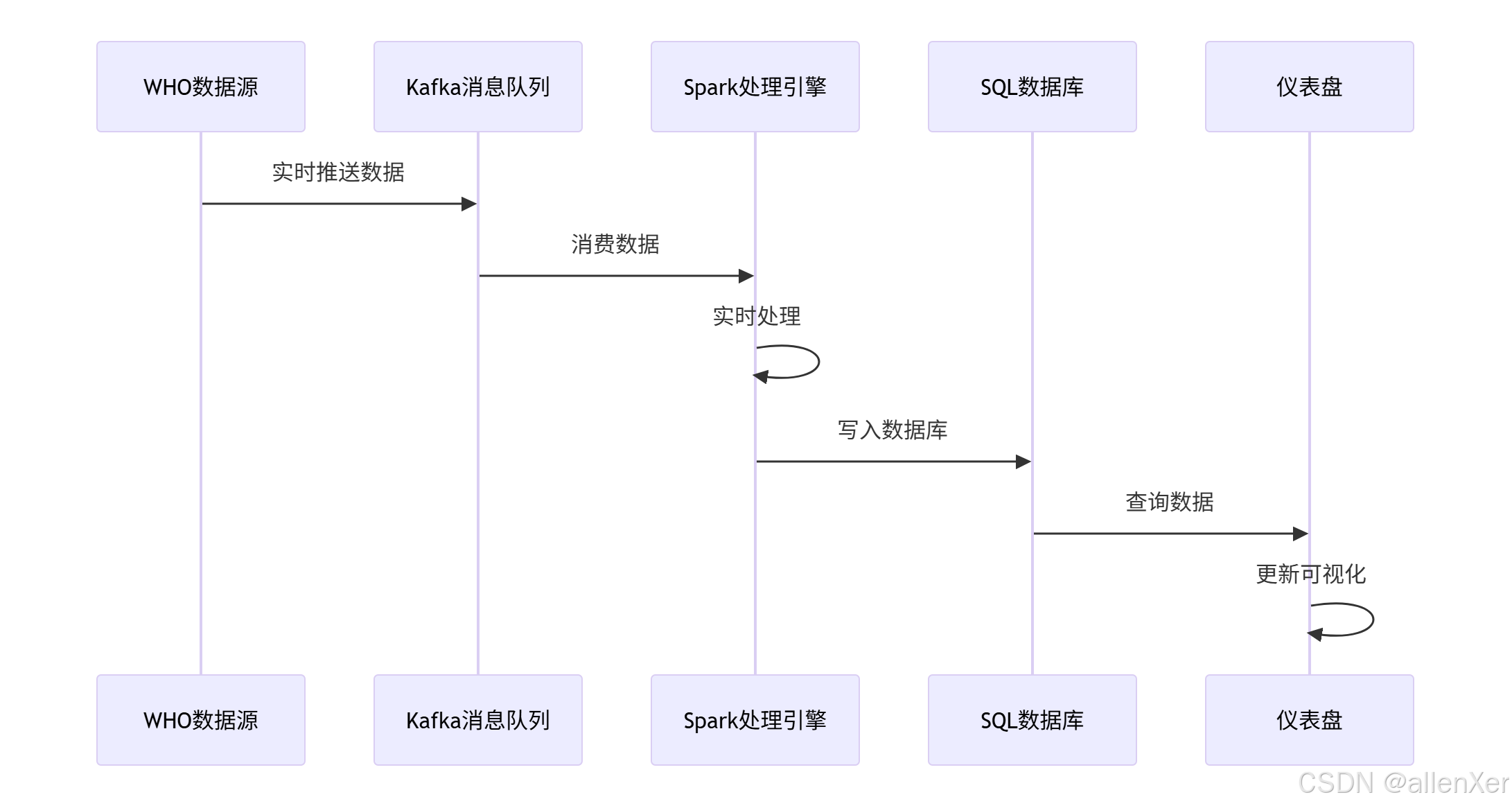

1. 疫情数据流架构

2. Apache Kafka集成

from kafka import KafkaConsumer, KafkaProducer
import json
import sqlite3def kafka_to_sqlite():"""从Kafka消费数据写入SQLite"""consumer = KafkaConsumer('covid19',bootstrap_servers='localhost:9092',value_deserializer=lambda m: json.loads(m.decode('utf-8'))conn = sqlite3.connect('covid19.db')cursor = conn.cursor()for message in consumer:data = message.valuecursor.execute("""INSERT INTO who_data (date, country, confirmed, deaths)VALUES (?, ?, ?, ?)""", (data['date'], data['country'], data['confirmed'], data['deaths']))conn.commit()print(f"插入数据: {data['country']} {data['date']}")conn.close()

3. 实时预警系统

def real_time_alert():"""实时疫情预警"""conn = sqlite3.connect('covid19.db')cursor = conn.cursor()# 监控最近7天数据cursor.execute("""SELECT country, SUM(confirmed) as weekly_casesFROM who_dataWHERE date >= date('now', '-7 days')GROUP BY countryHAVING weekly_cases > 100000""")high_risk_countries = cursor.fetchall()for country, cases in high_risk_countries:print(f"警报: {country} 过去7天新增病例 {cases} 例")# 发送邮件或短信通知send_alert(country, cases)conn.close()def send_alert(country, cases):"""发送预警通知"""# 实现邮件或短信发送逻辑pass

七、案例研究：成功与失败的经验

1. 成功案例：韩国疫情响应系统

​​系统特点​​：

• 实时数据更新（<5分钟延迟）
• 多源数据融合（WHO、CDC、医院数据）
• 预测模型准确率85%
• 响应时间缩短至2小时

​​技术亮点​​：

# 使用列式数据库加速分析
def use_columnar_database():"""使用ClickHouse列式数据库"""from clickhouse_driver import Clientclient = Client('localhost')client.execute('CREATE TABLE covid_data (date Date, country String, confirmed Int32) ENGINE = MergeTree ORDER BY date')# 批量插入data = [('2023-01-01', 'Korea', 5000), ('2023-01-02', 'Korea', 5500)]client.execute('INSERT INTO covid_data VALUES', data)# 快速聚合查询result = client.execute('SELECT SUM(confirmed) FROM covid_data')print(f"总病例数: {result[0][0]}")

2. 失败案例：某国疫情数据平台崩溃

​​问题分析​​：

• 单点数据库服务器
• 无索引的全表扫描
• 同步阻塞写入
• 无缓存机制

​​错误日志分析​​：

ERROR: 连接超时 (120秒)
WARNING: 查询响应时间 > 10秒
CRITICAL: 数据库连接池耗尽

​​解决方案​​：

1. 数据库读写分离
2. 添加Redis缓存层
3. 优化查询索引
4. 引入消息队列削峰

结语：构建你的疫情指挥中心

通过本指南，您已掌握：

• 🗃️ SQL数据库核心操作
• 📊 疫情数据可视化技术
• ⚡ 实时数据处理方案
• 🚀 工业级优化策略
• 🛡️ 高可用系统设计

​​下一步行动​​：

1. 部署本地疫情数据库
2. 接入实时数据源
3. 开发定制化仪表盘
4. 添加预测预警功能
5. 分享你的疫情分析

"在公共卫生危机中，数据是指挥中心的武器，技术是拯救生命的盾牌。掌握它们，你就能成为危机中的守护者。"
