Vue整合

依赖环境

• nodejs 版本 >= 18
• 安装 element plus

npm install element-plus

• 安装 mqtt

npm install mqtt

初始化Vue项目

• 使用 vite 创建项目

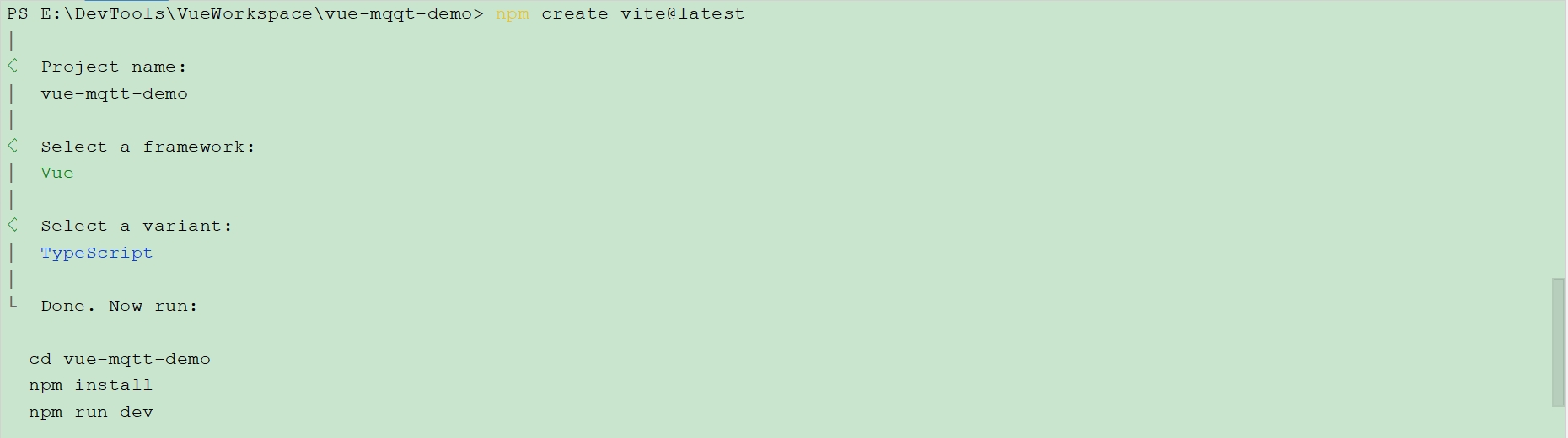

1. 执行命令 npm create vite@latest
2. 输入项目名称 vue-mqtt-demo

MQTT连接

连接组件代码

components/MqttDemo.vue

<script setup>
import { ref } from "vue";
import mqtt from "mqtt";// 消息质量取值数组
const qosList = [0, 1, 2];/* -------建立和关闭连接-------*/
// 定义链接信息对象
const connectionInfo = ref({protocol: 'ws',host: "192.168.40.128",port: 8083,clientId: "mqtt_vue_" + Math.random().toString(16).substring(2, 8),username: "admin",password: "admin123456",clean: true,connectTimeout: 10 * 1000, // 单位：msreconnectPeriod: 4000, // 单位：ms
})// 创建链接对象
const client = ref({})
// 链接初始化相关数据
const clientInitData = ref({      connnected: false
})// 建立连接事件处理函数
const createConnection = () => {const { protocol, host, port , ...options } = connectionInfo.value;const connectUrl = `${protocol}://${host}:${port}/mqtt`;console.log(connectUrl)// 建立连接client.value = mqtt.connect(connectUrl , options);   clientInitData.value.connnected = true ;console.info("create connection successful...")}// 关闭连接
const closeConnection = () => {// 如果设置为true：立即关闭套接字，不发送MQTT DISCONNECT包。// 如果设置为false（默认值）：先发送MQTT DISCONNECT包给代理，然后关闭套接字client.value.end(false , () => {clientInitData.value.connnected = false;console.info("close connection successful...")})
}
</script><template><div class="mqtt-demo"><el-card><h1>配置信息</h1><el-form label-position="top"><el-row :gutter="20"><el-col :span="8"><el-form-item prop="protocol" label="选择协议"><el-select v-model="connectionInfo.protocol"><el-option label="ws://" value="ws"></el-option><el-option label="wss://" value="wss"></el-option></el-select></el-form-item></el-col><el-col :span="8"><el-form-item prop="host" label="主机地址"><el-input v-model="connectionInfo.host"></el-input></el-form-item></el-col><el-col :span="8"><el-form-item prop="port" label="端口号"><el-input type="number" placeholder="8083/8084" v-model="connectionInfo.port"></el-input></el-form-item></el-col><el-col :span="8"><el-form-item prop="clientId" label="客户端ID"><el-input v-model="connectionInfo.clientId"> </el-input></el-form-item></el-col><el-col :span="8"><el-form-item prop="username" label="用户名"><el-input v-model="connectionInfo.username"></el-input></el-form-item></el-col><el-col :span="8"><el-form-item prop="password" label="密码"><el-input v-model="connectionInfo.password"></el-input></el-form-item></el-col><el-col :span="24"><el-button type="primary" @click="createConnection" v-bind:disabled="clientInitData.connnected">建立连接</el-button><el-button type="danger" @click="closeConnection" v-bind:disabled="!clientInitData.connnected">断开连接</el-button></el-col></el-row></el-form></el-card></div>
</template><style>
.mqtt-demo {max-width: 1200px;margin: 32px auto 0 auto;
}h1 {font-size: 16px;margin-top: 0;
}.el-card {margin-bottom: 32px;
}
.el-card__body {padding: 24px;
}.el-select {width: 100%;
}.text-right {text-align: right;
}.sub-btn {margin-top: 30px;
}
</style>

首页引入连接组件

App.vue

<template><MqttDemo />
</template><script setup>
import MqttDemo from "./components/MqttDemo.vue";</script><style></style>

运行项目

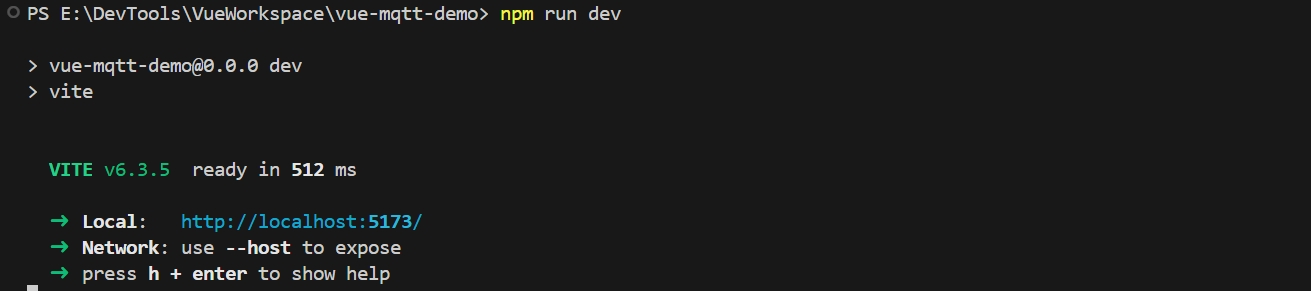

npm run dev

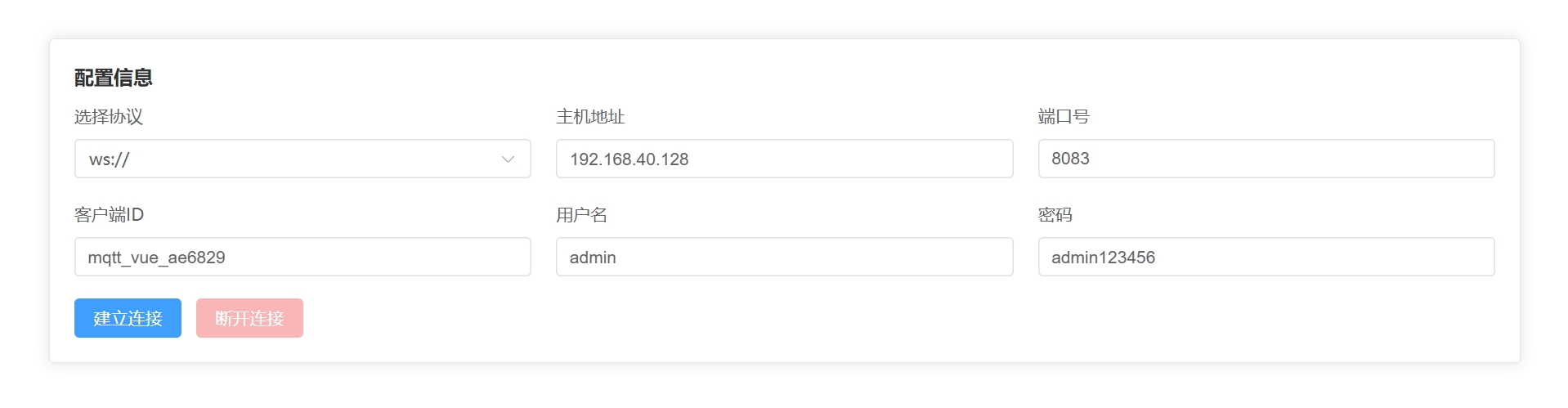

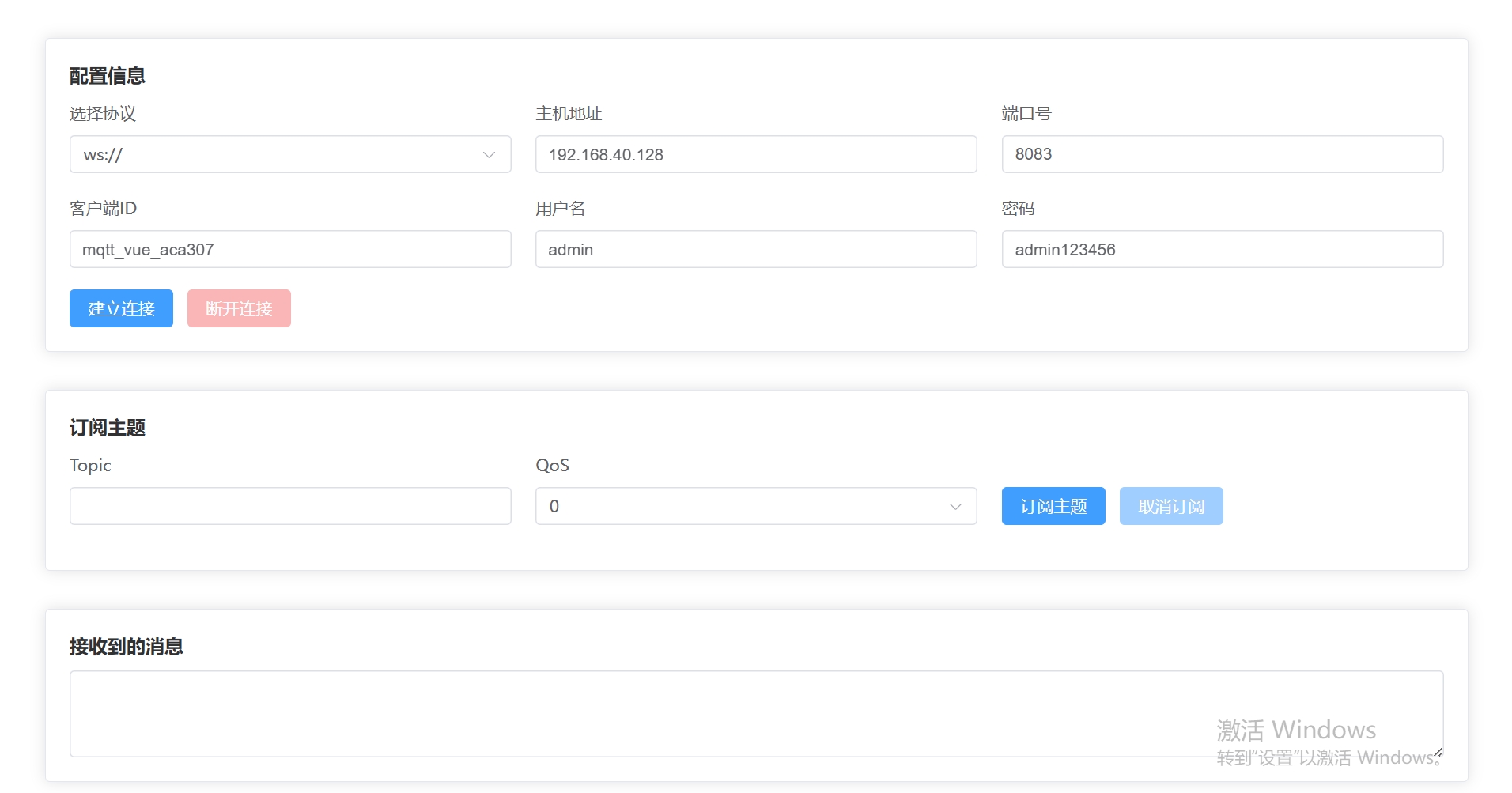

访问页面

http://localhost:5173/

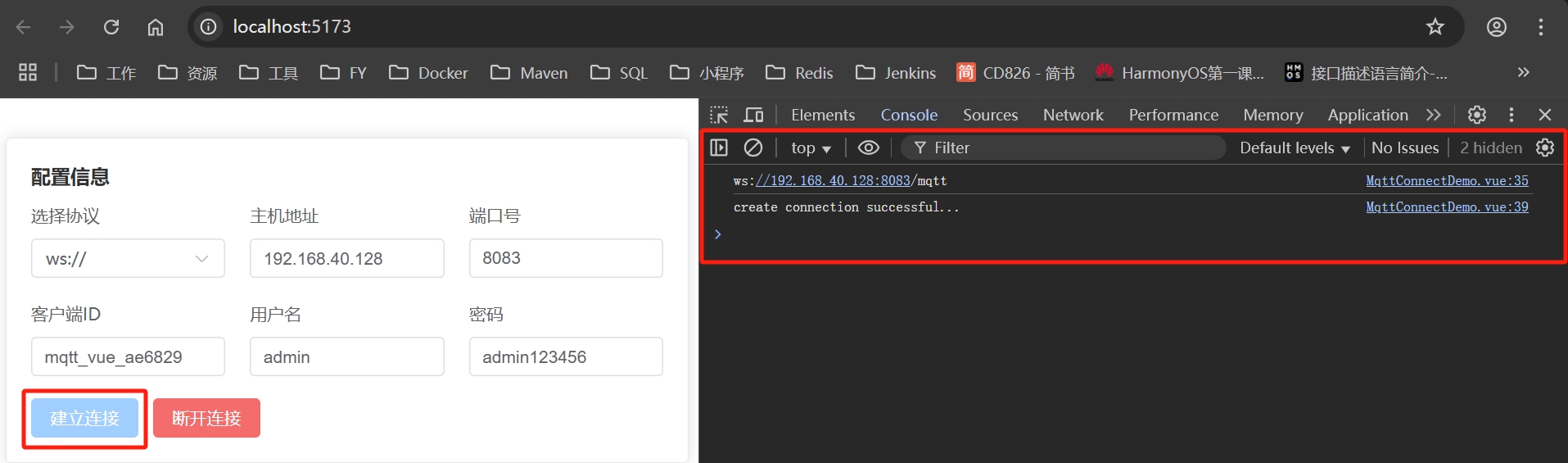

建立连接

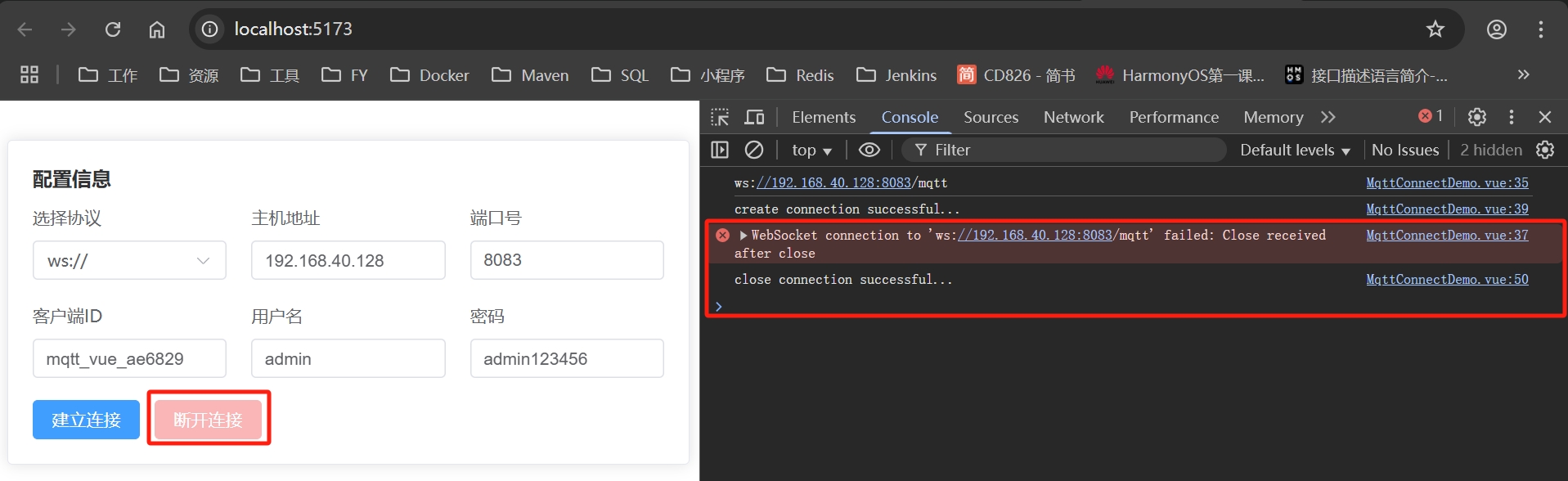

断开连接

MQTT订阅

订阅相关代码

components/MqttDemo.vue

• JS 代码

// 消息质量取值数组
const qosList = [0, 1, 2];/* -----订阅和取消订阅------ */const receivedMessages = ref(null);
const subscriptionInfo = ref({// 订阅参数数据模型topic: "",qos: 0,
});
const subscriptionInitData = ref({// 订阅初始化数据subscription: false,
});// 订阅主题的事件处理函数
const subscriptionTopicHandler = () => {const { topic, qos } = subscriptionInfo.value;console.info(qos);client.value.subscribe(topic, { qos }, (error, res) => {if (error) {console.info("subscribe topic error:", error);return;}subscriptionInitData.value.subscription = true;console.info("subscribe topic successful.... ");// 订阅成功以后，监听发送消息事件client.value.on("message", (topic, message) => {console.info("topic -----> " + topic + ", message -----> " + message);receivedMessages.value ="topic -----> " + topic + ", message -----> " + message;});});
};// 取消订阅的事件处理函数
const unSubscriptionTopicHandler = () => {const { topic, qos } = subscriptionInfo.value;client.value.unsubscribe(topic, { qos }, (error, res) => {if (error) {console.info("unSubscriptionTopic Error:", error);return;}subscriptionInitData.value.subscription = false;console.info("unSubscriptionTopic successful.... ");});
};

• HTML 页面

 <el-card><h1>订阅主题</h1><el-form label-position="top"><el-row :gutter="20"><el-col :span="8"><el-form-item prop="topic" label="Topic"><el-input v-model="subscriptionInfo.topic"></el-input></el-form-item></el-col><el-col :span="8"><el-form-item prop="qos" label="QoS"><el-select v-model="subscriptionInfo.qos"><el-optionv-for="qos in qosList":key="qos":label="qos":value="qos"></el-option></el-select></el-form-item></el-col><el-col :span="8"><el-button type="primary" class="sub-btn" @click="subscriptionTopicHandler"v-bind:disabled="subscriptionInitData.subscription">订阅主题</el-button><el-button type="primary" class="sub-btn" @click="unSubscriptionTopicHandler"v-bind:disabled="!subscriptionInitData.subscription">取消订阅</el-button></el-col></el-row></el-form></el-card><el-card><h1>接收到的消息</h1><el-col :span="24"><el-input type="textarea" :rows="3" readonly v-model="receivedMessages"></el-input></el-col></el-card>

运行访问

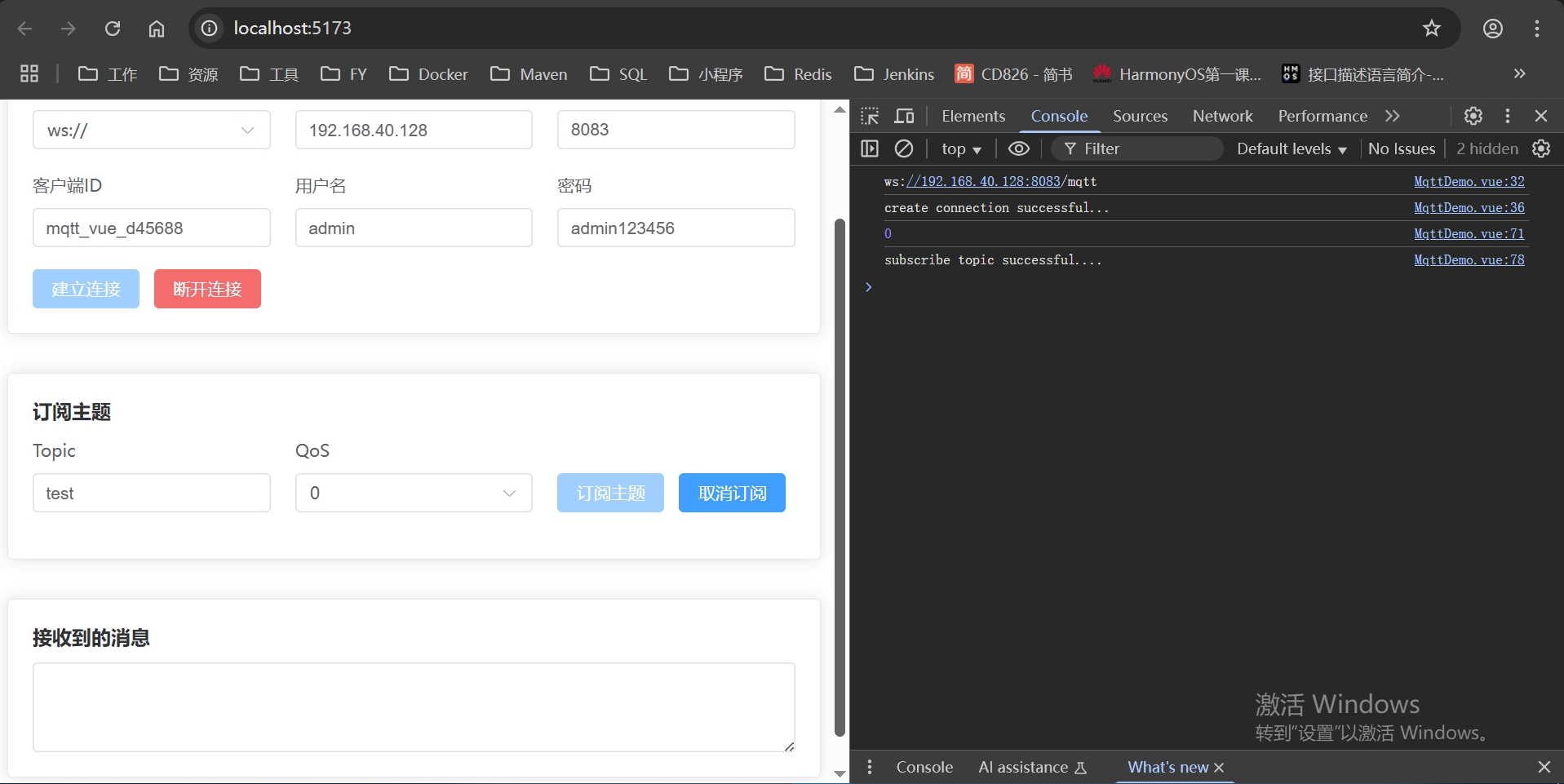

订阅主题

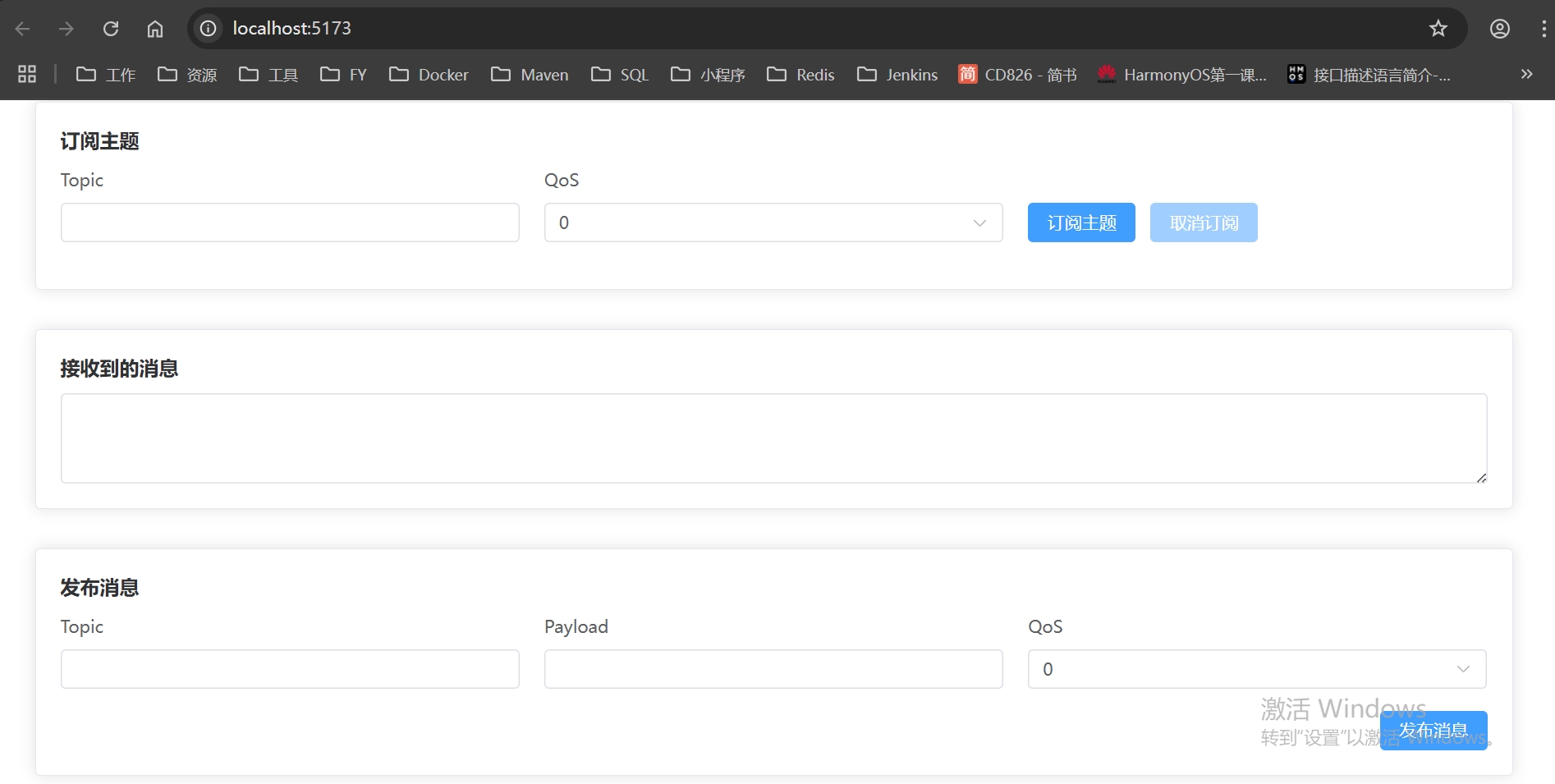

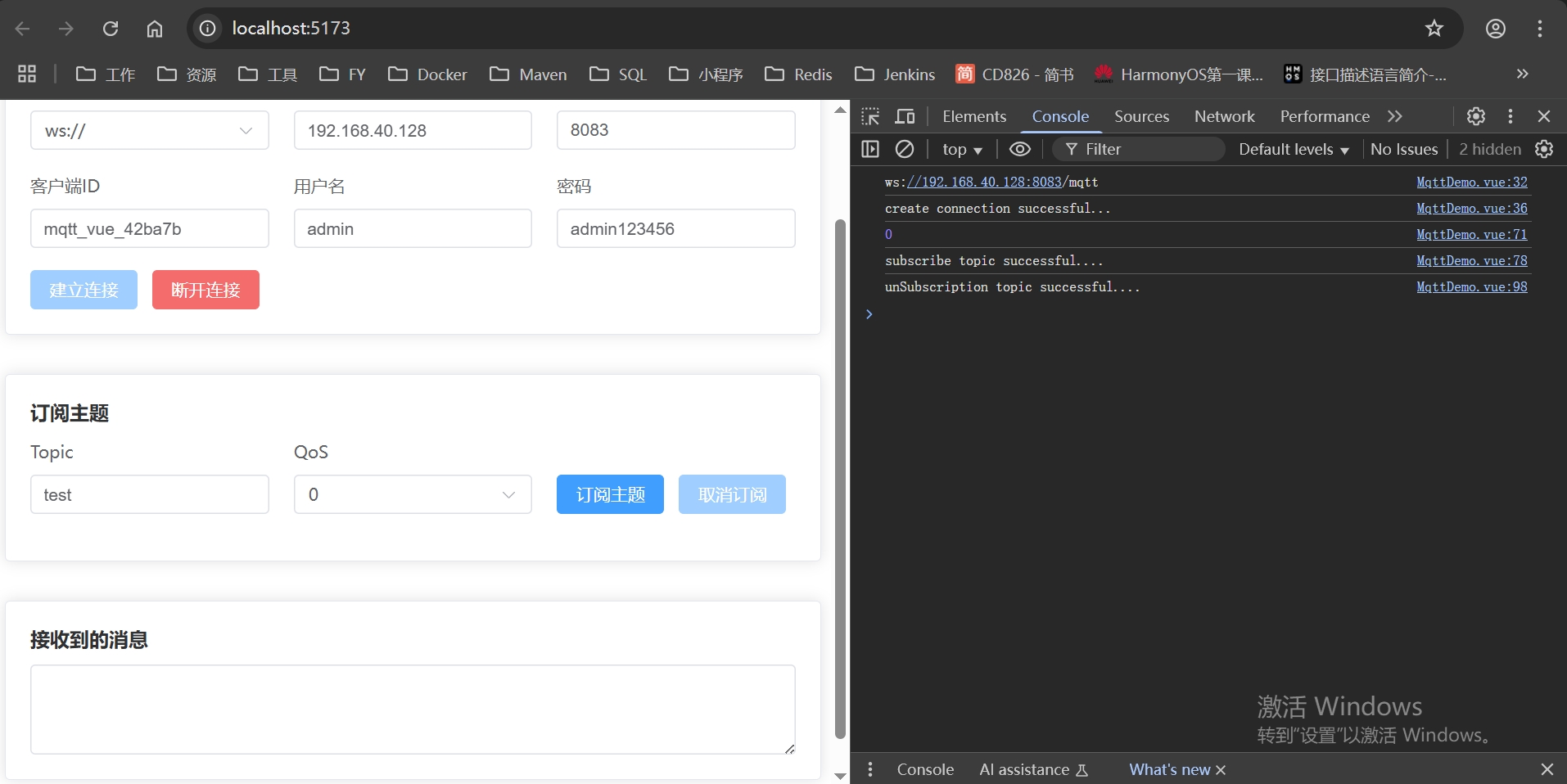

取消订阅

MQTT 发布

发布相关代码

• JS 代码

/* ----- 发布消息 ----- */
// 定义发布消息对象
const publishInfo = ref({topic: '' ,qos: 0,payLoad: ''
})// 发布消息的事件处理函数
const publishMsg = () => {const {topic , payLoad , qos } = publishInfo.value ;client.value.publish(topic , payLoad , { qos } , (error , res) => {if(error) {console.info("publish msg info error...." , error)return ;}console.info("publish msg info successful....")}) ;}

• HTML 代码

 <el-card><h1>发布消息</h1><el-form label-position="top"><el-row :gutter="20"><el-col :span="8"><el-form-item prop="topic" label="Topic"><el-input v-model="publishInfo.topic"></el-input></el-form-item></el-col><el-col :span="8"><el-form-item prop="payload" label="Payload"><el-input v-model="publishInfo.payLoad"></el-input></el-form-item></el-col><el-col :span="8"><el-form-item prop="qos" label="QoS"><el-select v-model="publishInfo.qos"><el-optionv-for="qos in qosList":key="qos":label="qos":value="qos"></el-option></el-select></el-form-item></el-col></el-row></el-form><el-col :span="24" class="text-right"><el-button type="primary" @click="publishMsg">发布消息</el-button></el-col></el-card>

运行访问

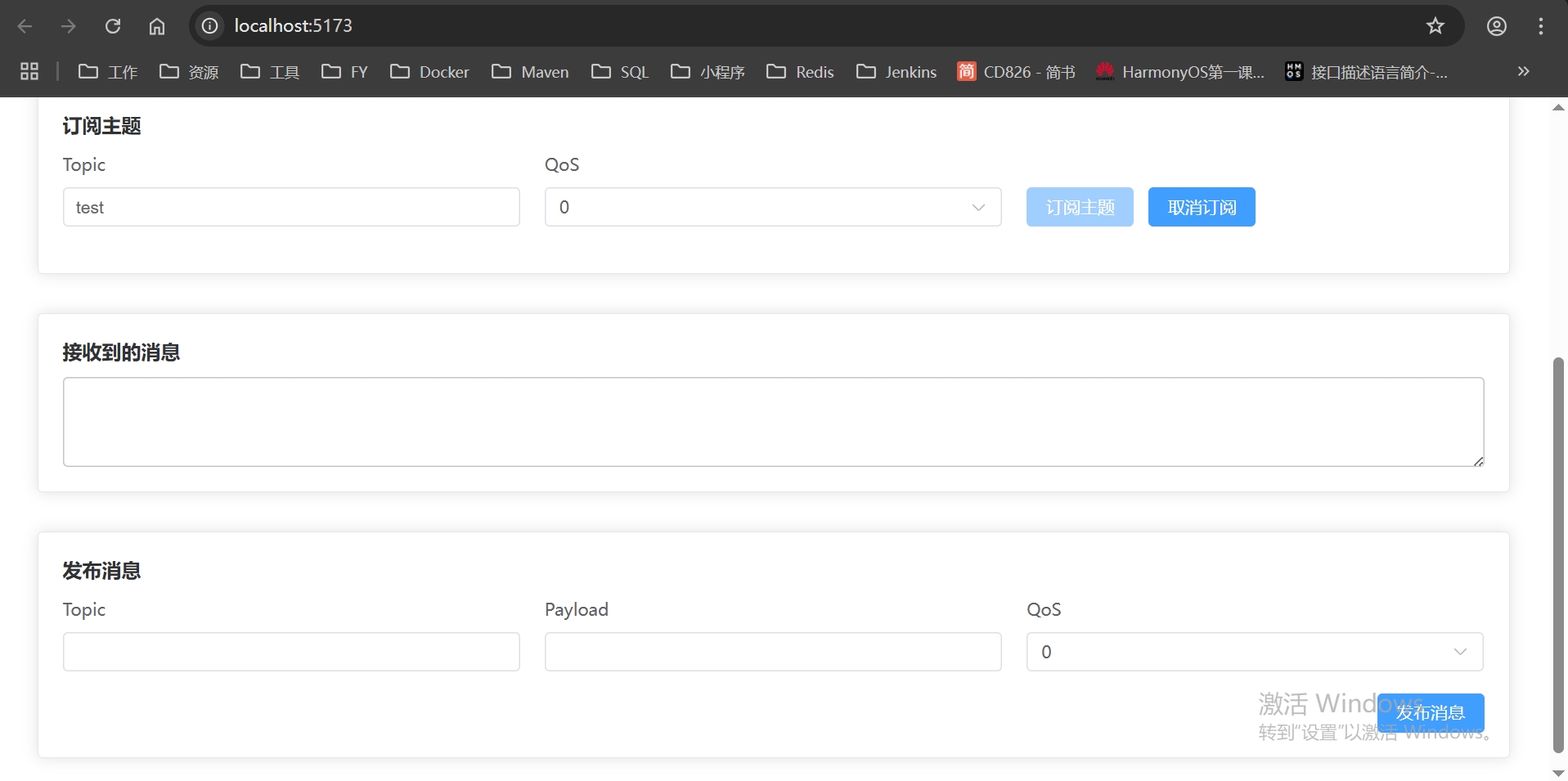

订阅主题 test

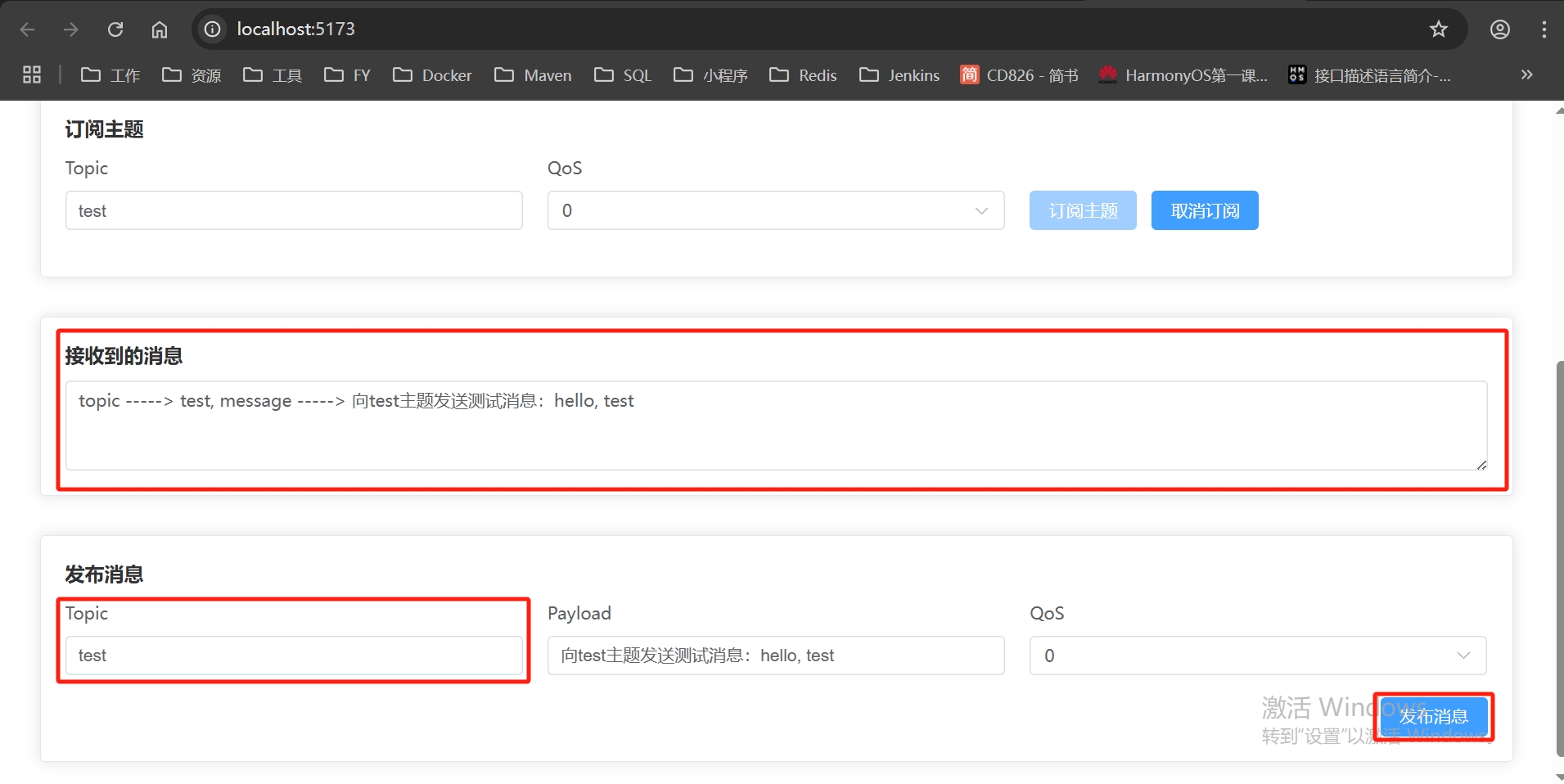

发送接收消息

点击发送后，接收消息框立马收到发布的消息
