Llama-Factory微调Qwen2.5-VL从数据集制作到部署记录

电脑环境配置：
1.ubuntu24
2.3090(24G)
3.Cuda==12.9

一、数据集制作

我的数据集主要是对图像内容进行描述
1.Label-studio制作数据集
这是最原始的从零开始制作数据集的方法，不建议这样做！
安装完label-studio后，输入指令启动

label-studio start

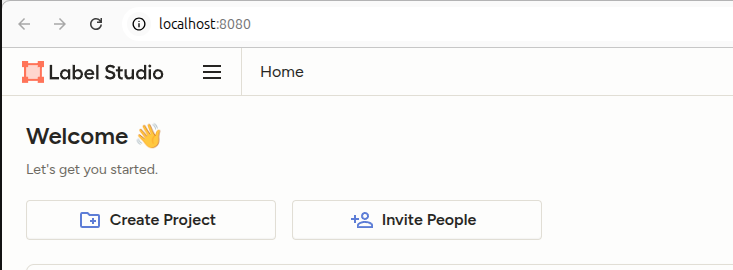

进入浏览器界面
在这里插入图片描述
创建项目：Create Project，引入图片后，选择图像描述数据集制作（Image Captioning）

2.利用Qwen2.5-VL半自动制作数据集
既然qwen本身具有较好的图像描述能力，那我们可以先使用qwen进行图像描述，在此基础上进行复核修改，这样做可以减少人力成本。
我这编写的脚本如下：

import torch
from modelscope import Qwen2_5_VLForConditionalGeneration, AutoTokenizer, AutoProcessor
from qwen_vl_utils import process_vision_info
import time
import os
from pathlib import Path
import jsondef process_single_image(model, processor, image_path, prompt):messages = [{"role": "user","content": [{"type": "image","image": image_path,},{"type": "text", "text": prompt},],}]# Preparation for inferencetext = processor.apply_chat_template(messages, tokenize=False, add_generation_prompt=True)image_inputs, video_inputs = process_vision_info(messages)inputs = processor(text=[text],images=image_inputs,videos=video_inputs,padding=True,return_tensors="pt",)inputs = inputs.to("cuda")time_start = time.time()# Inference: Generation of the outputgenerated_ids = model.generate(**inputs, max_new_tokens=256, do_sample=False)time_end = time.time()print(f"Inference time for {Path(image_path).name}: {time_end - time_start:.2f}s")generated_ids_trimmed = [out_ids[len(in_ids) :] for in_ids, out_ids in zip(inputs.input_ids, generated_ids)]output_text = processor.batch_decode(generated_ids_trimmed, skip_special_tokens=True, clean_up_tokenization_spaces=False)return output_text[0]def process_images_in_folder(model, processor, image_folder, prompt, output_file=None):# 支持的图像格式image_extensions = {'.jpg', '.jpeg', '.png', '.bmp', '.tiff', '.tif'}# 获取文件夹中所有图像文件image_files = []for file in Path(image_folder).iterdir():if file.suffix.lower() in image_extensions:image_files.append(file)image_files.sort()if not image_files:print(f"No image files found in {image_folder}")returnprint(f"Found {len(image_files)} image files")# 存储结果results = []# 遍历处理每张图像for image_file in image_files:print(f"\nProcessing: {image_file.name}")try:result = process_single_image(model, processor, str(image_file), prompt)print(f"Result: {result}")# 保存结果results.append({'image': image_file.name,'path': str(image_file),'result': result})except Exception as e:print(f"Error processing {image_file.name}: {e}")results.append({'image': image_file.name,'path': str(image_file),'result': f"Error: {e}",'error': True})# 如果指定了输出文件，则保存为JSONL格式if output_file:with open(output_file, 'w', encoding='utf-8') as f:for item in results:# 构造JSONL格式的字典json_line = {"image": item['path'],"text": item['result']}# 写入一行JSONf.write(json.dumps(json_line, ensure_ascii=False) + '\n')print(f"\nResults saved to {output_file}")return resultsif __name__ == '__main__':# default: Load the model on the available device(s)model = Qwen2_5_VLForConditionalGeneration.from_pretrained("/home/ct/work/BigModel/Qwen2.5-VL/models/Qwen2.5-VL-7B-Instruct", torch_dtype="auto", device_map="auto")# The default range for the number of visual tokens per image in the model is 4-16384.# You can set min_pixels and max_pixels according to your needs, such as a token range of 256-1280, to balance performance and cost.min_pixels = 256*28*28max_pixels = 1280*28*28processor = AutoProcessor.from_pretrained("/home/ct/work/BigModel/Qwen2.5-VL/models/Qwen2.5-VL-7B-Instruct", min_pixels=min_pixels, max_pixels=max_pixels)# 设置图像文件夹路径和提示词image_folder = "/home/ct/work/Label_tools/PICS/Flame/"  prompt = "查看图像中红色矩形框中是否存在烟火，判定存在烟火需要看到明显的烟雾和火焰，注意区分灯光、太阳光和一些其他的影响。"output_file = "inference_results.jsonl"  # 结果输出文件# 处理文件夹中的所有图像results = process_images_in_folder(model, processor, image_folder, prompt, output_file)# 打印汇总信息print(f"\nProcessing completed. Total images processed: {len(results)}")

配置运行后，将会生成推理结果的JSONL文件。主要包含图像路径和对应描述。其他任务主要修改以下提示词就可以。
接下来就是对这图像查看与qwen2.5-vl描述的是否一致就行。

二、LLama-Factory微调

1.配置LLama-Factory环境
因为我是一边测试一边记录，为了安全起见，建议使用anaconda建立LLama-Factory虚拟环境。
（1）克隆LLama-Factory项目

git clone https://github.com/hiyouga/LLaMA-Factory.git
cd LLaMA-Factory

（2）创建虚拟环境

# 使用 conda（推荐）
conda create -n llama-factory python=3.10
conda activate llama-factory# 或使用 venv
python -m venv venv
source venv/bin/activate

（3）安装依赖

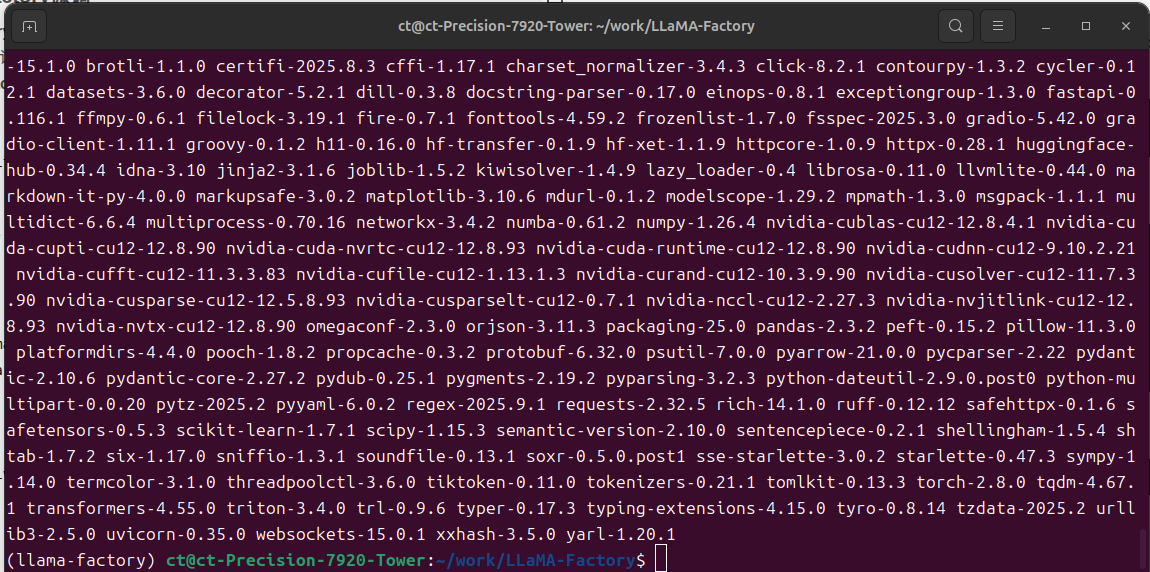

pip install -r requirements.txt

在这里插入图片描述
2.转化标签数据格式
目前我们的数据格式大概是：

{"image": "/path/to/image.jpg", "text": "图像描述语句"}

而LLama-Factory对于多模态大模型的建议数据格式为：

{"images": ["/home/ct/work/Label_tools/PICS/Smoke/Smoke001.png"], "conversations": [{"content": "<image>\n请分析图像中红色矩形框内是否存在吸烟行为，并说明理由。", "from": "user"}, {"content": "红色矩形框中的人在吸烟。", "from": "assistant"}]}

转换脚本如下：

import json# 读取原始文件
input_file = "/home/ct/work/LLaMA-Factory/inference_results_Smoke.jsonl"
output_file = "/home/ct/work/LLaMA-Factory/smoke_dataset.jsonl"with open(input_file, 'r', encoding='utf-8') as infile:lines = infile.readlines()# 转换格式
converted_lines = []
for line in lines:data = json.loads(line.strip())# 构建新的数据结构new_data = {"images": [data["image"]],"conversations": [{"content": "<image>\n请分析图像中红色矩形框内是否存在吸烟行为，并说明理由。","from": "user"},{"content": data["text"],"from": "assistant"}]}converted_lines.append(json.dumps(new_data, ensure_ascii=False) + '\n')# 写入新文件
with open(output_file, 'w', encoding='utf-8') as outfile:outfile.writelines(converted_lines)print(f"转换完成！已保存到 {output_file}")

3.启动微调
（1）下载模型

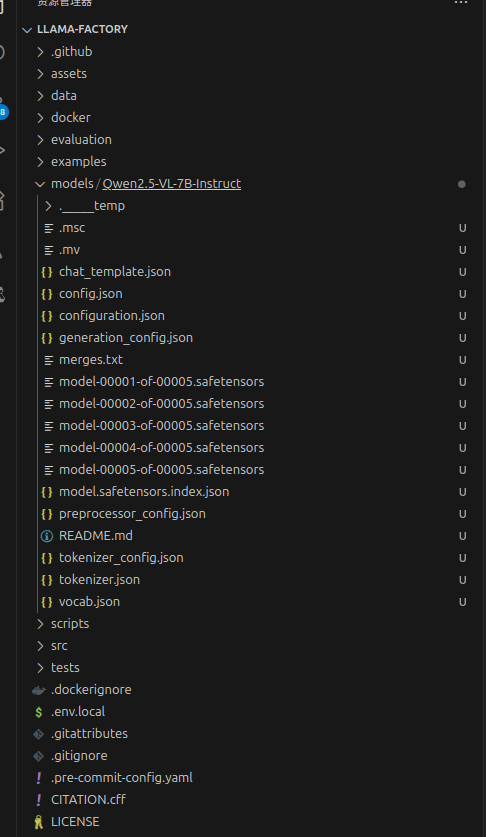

huggingface由于是外网，下载困难，建议去魔塔社区下载，下载后置于LLama-factory根目录下，新建models文件夹。
在这里插入图片描述
（2）构建dataset_info.json
在LLama-factory的根目录下新建该文件，并写入：

{"smoke_dataset": {"file_name": "smoke_dataset.jsonl","formatting": "sharegpt","columns": {"messages": "conversations","images": "images"},"tags": {"role_tag": "from","content_tag": "content","user_tag": "user","assistant_tag": "assistant"}}
}

注意smoke_dataset和smoke_dataset.jsonl两者需要对应。
（3）启动微调

cd /home/ct/work/LLaMA-Factory
python src/train.py \--stage sft \--do_train \--model_name_or_path /home/ct/work/LLaMA-Factory/models/Qwen2.5-VL-7B-Instruct \--dataset smoke_dataset \--dataset_dir . \--template qwen2_vl \--finetuning_type lora \--lora_target all \--output_dir saves/Qwen2.5-VL-7B-Instruct-lora \--per_device_train_batch_size 1 \--gradient_accumulation_steps 8 \--lr_scheduler_type cosine \--logging_steps 10 \--save_steps 100 \--learning_rate 5e-5 \--num_train_epochs 3.0 \--plot_loss \--fp16

在这里插入图片描述

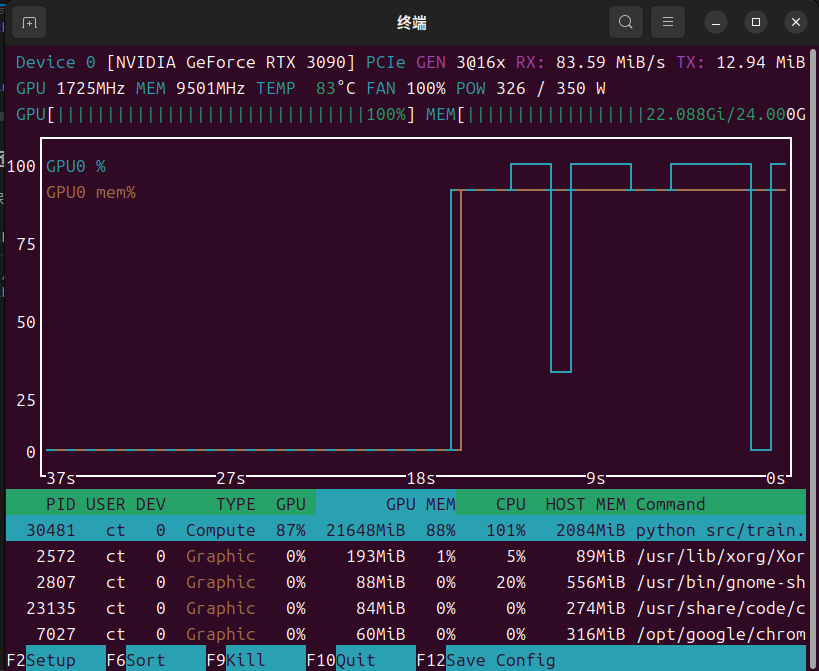

生成的权重文件在LLama-Factory根目录下的Saves文件夹下。
内存占用大概22G.

三、模型合并

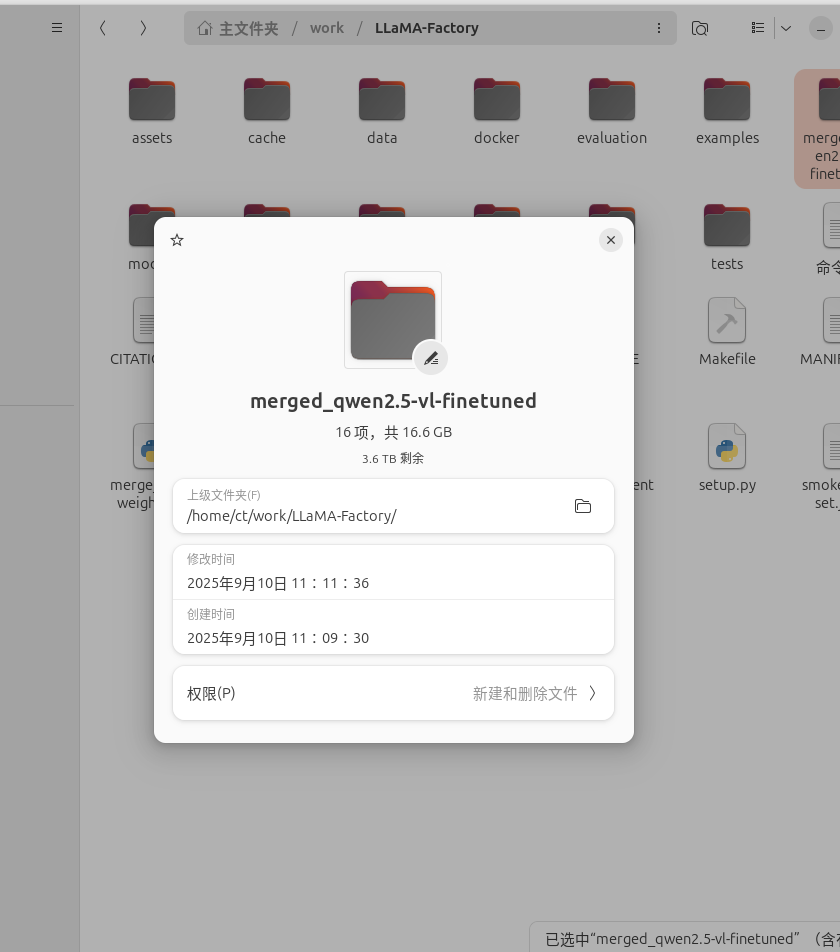

在模型微调训练后，会在saves文件夹下生成一系列的微调权重文件，我使用的lora微调。大小在100～300m之间。需要与原始权重文件合并。
在这里插入图片描述

可以采用llama-factory和pytorch+transform等多种方法进行合并，我这的脚本如下：

# merge_lora_weights.py
import os
import torch
from transformers import AutoModelForVision2Seq, AutoTokenizer, AutoProcessor
from peft import PeftModeldef merge_lora_weights():# 配置路径base_model_path = "models/Qwen2.5-VL-7B-Instruct"  # 原始模型路径lora_weights_path = "saves/Qwen2.5-VL-7B-Instruct-lora/checkpoint-3520"  # LoRA权重路径output_path = "./merged_qwen2.5-vl-finetuned"  # 合并后模型保存路径print("Loading base model...")base_model = AutoModelForVision2Seq.from_pretrained(base_model_path,torch_dtype=torch.float16,low_cpu_mem_usage=True,trust_remote_code=True)print("Loading LoRA adapter...")lora_model = PeftModel.from_pretrained(base_model, lora_weights_path)print("Merging weights...")merged_model = lora_model.merge_and_unload()print("Saving merged model...")# 创建输出目录os.makedirs(output_path, exist_ok=True)# 保存模型merged_model.save_pretrained(output_path, safe_serialization=True, max_shard_size="5GB")# 保存tokenizer和processortokenizer = AutoTokenizer.from_pretrained(base_model_path, trust_remote_code=True)tokenizer.save_pretrained(output_path)# 保存processor（对VL模型很重要）processor = AutoProcessor.from_pretrained(base_model_path, trust_remote_code=True)processor.save_pretrained(output_path)print(f"Merged model saved to {output_path}")if __name__ == "__main__":merge_lora_weights()
