一、OpenTelemetry

1.1 配置OpenTelemetry

1. 服务添加

namespace Evently.Common.Infrastructure; 配置

        services.AddOpenTelemetry().ConfigureResource(resource => resource.AddService(serviceName)).WithTracing(tracing =>{tracing.AddAspNetCoreInstrumentation().AddHttpClientInstrumentation().AddEntityFrameworkCoreInstrumentation().AddRedisInstrumentation().AddNpgsql().AddSource(MassTransit.Logging.DiagnosticHeaders.DefaultListenerName);tracing.AddOtlpExporter();});

2. 添加服务标识

在这里插入图片描述

创建服务标识

namespace Evently.Api.OpenTelemetry;public static class DiagnosticsConfig
{public const string ServiceName = "Evently.Api";
}

program里注册

3. 添加请求的标识

在RequestLoggingPipelineBehavior添加的请求和服务的标识

在这里插入图片描述

4. 添加中间价

在这里插入图片描述

LogContextTraceLoggingMiddleware

namespace Evently.Api.Middleware;
internal sealed class LogContextTraceLoggingMiddleware(RequestDelegate next)
{public Task Invoke(HttpContext context){string traceId = Activity.Current?.TraceId.ToString();using (LogContext.PushProperty("TraceId", traceId)){return next.Invoke(context);}}
}

MiddlewareExtensions 用于将自定义日志追踪中间件 LogContextTraceLoggingMiddleware 添加到 ASP.NET Core 的中间件管道中。

namespace Evently.Api.Middleware;
internal static class MiddlewareExtensions
{internal static IApplicationBuilder UseLogContextTraceLogging(this IApplicationBuilder app){app.UseMiddleware<LogContextTraceLoggingMiddleware>();return app;}
}

中间件添加

二、Rabbit MQ

2.1 配置Rabbit MQ

1. docker-compose

docker-compose.yml

evently.queue:image: rabbitmq:management-alpinecontainer_name: Evently.Queuehostname: evently-queuevolumes:- ./.containers/queue/data/:/var/lib/rabbitmq- ./.containers/queue/log/:/var/log/rabbitmqenvironment:RABBITMQ_DEFAULT_USER: guestRABBITMQ_DEFAULT_PASS: guestports:- 5672:5672- 15672:15672

2. 添加Rabbit MQ的Connect String

  "ConnectionStrings": {"Database": "Host=evently.database;Port=5432;Database=evently;Username=postgres;Password=postgres;Include Error Detail=true","Cache": "evently.redis:6379","Queue": "amqp://evently-queue:5672"},

2.2 替换成Rabbit MQ

1. 安装所需要的包

替换之前内存为Rabbit MQ
安装所需要的包

    <PackageReference Include="AspNetCore.HealthChecks.Rabbitmq" Version="8.0.1" /><PackageReference Include="MassTransit.RabbitMQ" Version="8.2.1" />

创建MQ配置文件

namespace Evently.Common.Infrastructure.EventBus;
public sealed record RabbitMqSettings(string Host, string Username = "guest", string Password = "guest");

2. 使用

修改MassTransit，将内存改为MQ
注册Ticketing的消费者
注册Event的消费者
Program里注册

三、API Gateways

在这里插入图片描述

3.1 创建Gateway

在这里插入图片描述

1. 配置docker-compose

在这里插入图片描述

2. 添加各种服务

在Gateway的program.cs里添加服务

WebApplicationBuilder builder = WebApplication.CreateBuilder(args);
builder.Host.UseSerilog((context, loggerConfig) => loggerConfig.ReadFrom.Configuration(context.Configuration));
builder.Services.AddReverseProxy().LoadFromConfig(builder.Configuration.GetSection("ReverseProxy"));builder.Services.AddOpenTelemetry().ConfigureResource(resource => resource.AddService(DiagnosticsConfig.ServiceName)).WithTracing(tracing =>{tracing.AddAspNetCoreInstrumentation().AddHttpClientInstrumentation().AddSource("Yarp.ReverseProxy");tracing.AddOtlpExporter();});builder.Services.AddAuthorization();
builder.Services.AddAuthentication().AddJwtBearer();
builder.Services.ConfigureOptions<JwtBearerConfigureOptions>();
WebApplication app = builder.Build();
app.UseLogContextTraceLogging();
app.UseSerilogRequestLogging();
app.UseAuthentication();
app.UseAuthorization();
app.MapReverseProxy();
app.Run();

3. 添加jwt配置

namespace Evently.Gateway.Authentication;
internal sealed class JwtBearerConfigureOptions(IConfiguration configuration): IConfigureNamedOptions<JwtBearerOptions>
{private const string ConfigurationSectionName = "Authentication";public void Configure(JwtBearerOptions options){configuration.GetSection(ConfigurationSectionName).Bind(options);}public void Configure(string? name, JwtBearerOptions options){Configure(options);}
}

4. 添加日志追踪

添加日志追踪

using System.Diagnostics;
using Serilog.Context;
namespace Evently.Gateway.Middleware;
internal sealed class LogContextTraceLoggingMiddleware(RequestDelegate next)
{public Task Invoke(HttpContext context){string traceId = Activity.Current?.TraceId.ToString();using (LogContext.PushProperty("TraceId", traceId)){return next.Invoke(context);}}
}

namespace Evently.Gateway.Middleware;
internal static class MiddlewareExtensions
{internal static IApplicationBuilder UseLogContextTraceLogging(this IApplicationBuilder app){app.UseMiddleware<LogContextTraceLoggingMiddleware>();return app;}
}

5. 配置appsettings

基础设置

{"Authentication": {"Audience": "account","TokenValidationParameters": {"ValidIssuers": [ "http://evently.identity:8080/realms/evently", "http://localhost:18080/realms/evently" ]},"MetadataAddress": "http://evently.identity:8080/realms/evently/.well-known/openid-configuration","RequireHttpsMetadata": false},"Serilog": {"Using": ["Serilog.Sinks.Console","Serilog.Sinks.Seq"],"MinimumLevel": {"Default": "Information","Override": {"Microsoft": "Information"}},"WriteTo": [{ "Name": "Console" },{"Name": "Seq","Args": { "serverUrl": "http://evently.seq:5341" }}],"Enrich": [ "FromLogContext", "WithMachineName", "WithThreadId" ],"Properties": {"Application": "Evently.Gateway"}},"OTEL_EXPORTER_OTLP_ENDPOINT": "http://evently.jaeger:4317",
}

6. Yarp反向代理设置

在这里插入图片描述

四、微服务拆分

我现在有个单体架构的票务系统，但是当业务高峰期的时候，突然订票剧增，我想单独把票务拆出来做微服务可以吗，其次由于我想控制成本，平时只想一个实例运行这个微服务，当业务高峰期，需要自动扩充到4个

4.1 创建新的Ticketing api

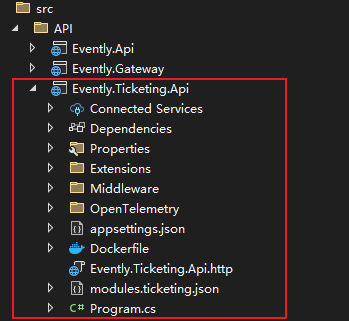

1. 创建.net webapi 项目

在这里插入图片描述

2. 安装包和引用

<Project Sdk="Microsoft.NET.Sdk.Web"><PropertyGroup><UserSecretsId>ab603965-9d79-46f7-b0fd-56e950ec7073</UserSecretsId><DockerDefaultTargetOS>Linux</DockerDefaultTargetOS><DockerfileContext>..\..\..</DockerfileContext><DockerComposeProjectPath>..\..\..\docker-compose.dcproj</DockerComposeProjectPath></PropertyGroup><ItemGroup><PackageReference Include="AspNetCore.HealthChecks.UI.Client" Version="8.0.1" /><PackageReference Include="Microsoft.AspNetCore.OpenApi" Version="8.0.4" /><PackageReference Include="Microsoft.EntityFrameworkCore.Tools" Version="8.0.4"><PrivateAssets>all</PrivateAssets><IncludeAssets>runtime; build; native; contentfiles; analyzers; buildtransitive</IncludeAssets></PackageReference><PackageReference Include="Microsoft.VisualStudio.Azure.Containers.Tools.Targets" Version="1.20.1" /><PackageReference Include="Serilog.AspNetCore" Version="8.0.1" /><PackageReference Include="Serilog.Sinks.Seq" Version="7.0.0" /><PackageReference Include="Swashbuckle.AspNetCore" Version="6.5.0" /></ItemGroup><ItemGroup><ProjectReference Include="..\..\Modules\Ticketing\Evently.Modules.Ticketing.Infrastructure\Evently.Modules.Ticketing.Infrastructure.csproj" /></ItemGroup>
</Project>

3. 将公共api复制到该模块

在这里插入图片描述

4. appsettings

appsettings.json

{"ConnectionStrings": {"Database": "","Cache": "","Queue": ""},"AllowedHosts": "*","Authentication": {"Audience": "","TokenValidationParameters": {"ValidIssuers": []},"MetadataAddress": "","RequireHttpsMetadata": false},"KeyCloak": {"HealthUrl": ""},"Serilog": {"Using": ["Serilog.Sinks.Console"],"MinimumLevel": {"Default": "Information","Override": {"Microsoft": "Information"}},"WriteTo": [{ "Name": "Console" }],"Enrich": [ "FromLogContext", "WithMachineName", "WithThreadId" ],"Properties": {"Application": "Evently.Ticketing.Api"}},"OTEL_EXPORTER_OTLP_ENDPOINT": ""
}

appsettings.Development.json

{"ConnectionStrings": {"Database": "Host=evently.database;Port=5432;Database=evently;Username=postgres;Password=postgres;Include Error Detail=true","Cache": "evently.redis:6379","Queue": "amqp://evently-queue:5672"},"Authentication": {"Audience": "account","TokenValidationParameters": {"ValidIssuers": [ "http://evently.identity:8080/realms/evently", "http://localhost:18080/realms/evently" ]},"MetadataAddress": "http://evently.identity:8080/realms/evently/.well-known/openid-configuration","RequireHttpsMetadata": false},"KeyCloak": {"HealthUrl": "http://evently.identity:8080/health/"},"Serilog": {"Using": ["Serilog.Sinks.Console","Serilog.Sinks.Seq"],"MinimumLevel": {"Default": "Information","Override": {"Microsoft": "Information","Evently.Modules.Ticketing.Infrastructure.Outbox": "Warning","Evently.Modules.Ticketing.Infrastructure.Inbox": "Warning"}},"WriteTo": [{ "Name": "Console" },{"Name": "Seq","Args": { "serverUrl": "http://evently.seq:5341" }}],"Enrich": [ "FromLogContext", "WithMachineName", "WithThreadId" ],"Properties": {"Application": "Evently.Ticketing.Api"}},"OTEL_EXPORTER_OTLP_ENDPOINT": "http://evently.jaeger:4317"
}
