在 httpUtil.c 中修改 predefined_set_cgi_processor 函数，这个是处理浏览器提交过来的数据的函数，代码如下：

uint8_t predefined_set_cgi_processor(uint8_t *uri_name, uint8_t *uri, uint8_t *buf, uint16_t *len)
{if (strcmp((const char *)uri_name, "config.cgi") == 0)
    {uint8_t *param;param = get_http_param_value((char *)uri, "text");set_data(param);param = get_http_param_value((char *)uri, "is_Rolling");if (!strcmp(param, "Rolling"))
        {set_rolling_flag(1);
        }else
        {set_rolling_flag(0);
        }set_dispaly_flag(1);*len = sprintf((char *)buf, (char *)CONFIG_SUCCESS_PAGE);return 1;
    }return 0;
}

添加 oled.c 函数，用于控制 oled。通过向oled相应寄存器赋值，即可实现oled滚动。代码如下

#include "oled.h"
#include "delay.h"
#include "flash.h"
#include "oledfont.h"
#include "stdint.h"
#include "string.h"
#include "w55mh32.h"unsigned char data[64] = "";
unsigned char is_rolling_flag = 0;
unsigned char display_flag = 0;
unsigned char startup_flag = 1;void IIC_Start()
{OLED_SCLK_Set();OLED_SDIN_Set();OLED_SDIN_Clr();OLED_SCLK_Clr();
}/**********************************************
//IIC Stop
**********************************************/
void IIC_Stop()
{OLED_SCLK_Set();//	OLED_SCLK_Clr();OLED_SDIN_Clr();OLED_SDIN_Set();
}void IIC_Wait_Ack()
{// GPIOB->CRH &= 0XFFF0FFFF;// GPIOB->CRH |= 0x00080000;//	OLED_SDA = 1;//	delay_us(1);// OLED_SCL = 1;// delay_us(50000);/*	while(1)
        {if(!OLED_SDA)
            {//GPIOB->CRH &= 0XFFF0FFFF;//GPIOB->CRH |= 0x00030000;return;
            }
        }*/OLED_SCLK_Set();OLED_SCLK_Clr();
}
/**********************************************
// IIC Write byte
**********************************************/void Write_IIC_Byte(unsigned char IIC_Byte)
{unsigned char i;unsigned char m, da;da = IIC_Byte;OLED_SCLK_Clr();for (i = 0; i < 8; i++)
    {m = da;//	OLED_SCLK_Clr();m = m & 0x80;if (m == 0x80)
        {OLED_SDIN_Set();
        }elseOLED_SDIN_Clr();da = da << 1;OLED_SCLK_Set();OLED_SCLK_Clr();
    }
}
/**********************************************
// IIC Write Command
**********************************************/
void Write_IIC_Command(unsigned char IIC_Command)
{IIC_Start();Write_IIC_Byte(0x78); // Slave address,SA0=0IIC_Wait_Ack();Write_IIC_Byte(0x00); // write commandIIC_Wait_Ack();Write_IIC_Byte(IIC_Command);IIC_Wait_Ack();IIC_Stop();
}
/**********************************************
// IIC Write Data
**********************************************/
void Write_IIC_Data(unsigned char IIC_Data)
{IIC_Start();Write_IIC_Byte(0x78); // D/C#=0; R/W#=0IIC_Wait_Ack();Write_IIC_Byte(0x40); // write dataIIC_Wait_Ack();Write_IIC_Byte(IIC_Data);IIC_Wait_Ack();IIC_Stop();
}
void OLED_WR_Byte(unsigned dat, unsigned cmd)
{if (cmd)Write_IIC_Data(dat);elseWrite_IIC_Command(dat);
}void OLED_Set_Pos(unsigned char x, unsigned char y)
{OLED_WR_Byte(0xb0 + y, OLED_CMD);OLED_WR_Byte(((x & 0xf0) >> 4) | 0x10, OLED_CMD);OLED_WR_Byte((x & 0x0f), OLED_CMD);
}void OLED_Display_On(void)
{OLED_WR_Byte(0X8D, OLED_CMD);OLED_WR_Byte(0X14, OLED_CMD); // DCDC ONOLED_WR_Byte(0XAF, OLED_CMD); // DISPLAY ON
}void OLED_Display_Off(void)
{OLED_WR_Byte(0X8D, OLED_CMD);OLED_WR_Byte(0X10, OLED_CMD); // DCDC OFFOLED_WR_Byte(0XAE, OLED_CMD); // DISPLAY OFF
}void OLED_Clear(void)
{unsigned char i, n;for (i = 0; i < 8; i++)
    {OLED_WR_Byte(0xb0 + i, OLED_CMD);OLED_WR_Byte(0x00, OLED_CMD);OLED_WR_Byte(0x10, OLED_CMD);for (n = 0; n < 128; n++)OLED_WR_Byte(0, OLED_DATA);
    }
}
void OLED_On(void)
{unsigned char i, n;for (i = 0; i < 8; i++)
    {OLED_WR_Byte(0xb0 + i, OLED_CMD);OLED_WR_Byte(0x00, OLED_CMD);OLED_WR_Byte(0x10, OLED_CMD);for (n = 0; n < 128; n++)OLED_WR_Byte(1, OLED_DATA);
    }
}void OLED_ShowChar(unsigned char x, unsigned char y, unsigned char chr, unsigned char Char_Size)
{unsigned char c = 0, i = 0;c = chr - ' ';if (x > Max_Column - 1)
    {x = 0;y = y + 2;
    }if (Char_Size == 16)
    {OLED_Set_Pos(x, y);for (i = 0; i < 8; i++)OLED_WR_Byte(F8X16[c * 16 + i], OLED_DATA);OLED_Set_Pos(x, y + 1);for (i = 0; i < 8; i++)OLED_WR_Byte(F8X16[c * 16 + i + 8], OLED_DATA);
    }else
    {OLED_Set_Pos(x, y);for (i = 0; i < 6; i++)OLED_WR_Byte(F6x8[c][i], OLED_DATA);
    }
}unsigned int oled_pow(unsigned char m, unsigned char n)
{unsigned int result = 1;while (n--)result *= m;return result;
}void OLED_ShowString(unsigned char x, unsigned char y, char *chr, unsigned char Char_Size)
{unsigned char j = 0;while (chr[j] != '\0')
    {OLED_ShowChar(x, y, chr[j], Char_Size);x += 8;if (x > 120)
        {x = 0;y += 2;
        }j++;
    }
}void OLED_Init(void)
{GPIO_InitTypeDef GPIO_InitStructure;RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB, ENABLE);GPIO_InitStructure.GPIO_Pin = GPIO_Pin_5 | GPIO_Pin_6;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;GPIO_Init(GPIOB, &GPIO_InitStructure);GPIO_SetBits(GPIOB, GPIO_Pin_5 | GPIO_Pin_6);delay_ms(800);OLED_WR_Byte(0xAE, OLED_CMD);OLED_WR_Byte(0x00, OLED_CMD);OLED_WR_Byte(0x10, OLED_CMD);OLED_WR_Byte(0xB0, OLED_CMD);OLED_WR_Byte(0x40, OLED_CMD);OLED_WR_Byte(0x81, OLED_CMD);OLED_WR_Byte(0xFF, OLED_CMD);OLED_WR_Byte(0xA1, OLED_CMD);OLED_WR_Byte(0xA6, OLED_CMD);OLED_WR_Byte(0xA8, OLED_CMD);OLED_WR_Byte(0x3F, OLED_CMD);OLED_WR_Byte(0xC8, OLED_CMD);OLED_WR_Byte(0xD3, OLED_CMD);OLED_WR_Byte(0x00, OLED_CMD);OLED_WR_Byte(0xD5, OLED_CMD);OLED_WR_Byte(0x80, OLED_CMD);OLED_WR_Byte(0xD9, OLED_CMD);OLED_WR_Byte(0xF1, OLED_CMD);OLED_WR_Byte(0xDA, OLED_CMD);OLED_WR_Byte(0x12, OLED_CMD);OLED_WR_Byte(0xDB, OLED_CMD);OLED_WR_Byte(0x30, OLED_CMD);OLED_WR_Byte(0x8D, OLED_CMD);OLED_WR_Byte(0x14, OLED_CMD);OLED_WR_Byte(0xAF, OLED_CMD);OLED_Clear();
}void set_data(unsigned char *dat)
{memset(data, 0, sizeof(data));strcpy(data, dat);
}void set_rolling_flag(unsigned char flag)
{is_rolling_flag = flag;
}void set_dispaly_flag(unsigned char flag)
{display_flag = flag;
}unsigned char get_dispaly_flag()
{return display_flag;
}// 添加滚动控制函数
void OLED_StartHorizontalScroll(unsigned char direction, unsigned char start_page,unsigned char end_page, unsigned char interval)
{OLED_WR_Byte(0x2E, OLED_CMD); // 关闭滚动// 设置滚动方向OLED_WR_Byte(direction, OLED_CMD);  // 0x26=右滚, 0x27=左滚OLED_WR_Byte(0x00, OLED_CMD);       // 虚拟字节OLED_WR_Byte(start_page, OLED_CMD); // 起始页 (0-7)OLED_WR_Byte(interval, OLED_CMD);   // 滚动间隔 (0-7, 数值越大越慢)OLED_WR_Byte(end_page, OLED_CMD);   // 终止页 (0-7)OLED_WR_Byte(0x00, OLED_CMD);       // 虚拟字节OLED_WR_Byte(0xFF, OLED_CMD);       // 虚拟字节OLED_WR_Byte(0x2F, OLED_CMD); // 启动滚动
}// 停止滚动
void OLED_StopScroll(void)
{OLED_WR_Byte(0x2E, OLED_CMD);
}void oled_display()
{unsigned char len = strlen(data);unsigned char *point = data;char buff[17] = {0};OLED_StopScroll();OLED_Clear();// clear bufffor (unsigned char i = 0; i < 4; i++)
    {memset(buff, 0, 16);if (len > 16)
        {strncpy(buff, (char *)point, 16);OLED_ShowString(0, i * 2, buff, 16);point += 16;len -= 16;
        }else
        {strcpy(buff, (char *)point);OLED_ShowString(0, i * 2, buff, 16);break;
        }
    }if (startup_flag)
    {startup_flag = 0;
    }else
    {Flash_Write(data, is_rolling_flag);
    }// 启动滚动 (从第0页到第7页，向左滚动，速度中等)if (is_rolling_flag)OLED_StartHorizontalScroll(0x27, 0, 7, 7);
}

添加 oled.h 头文件，代码如下,可以修改对应的宏定义为自己的引脚

#ifndef __OLED_H
#define __OLED_H
#include "delay.h"
#include "stdlib.h"#define OLED_MODE 0
#define SIZE 8
#define XLevelL 0x00
#define XLevelH 0x10
#define Max_Column 128
#define Max_Row 64
#define Brightness 0xFF
#define X_WIDTH 128
#define Y_WIDTH 64#define OLED_SCLK_Clr() GPIO_ResetBits(GPIOB, GPIO_Pin_5) // SCL
#define OLED_SCLK_Set() GPIO_SetBits(GPIOB, GPIO_Pin_5)#define OLED_SDIN_Clr() GPIO_ResetBits(GPIOB, GPIO_Pin_6) // SDA
#define OLED_SDIN_Set() GPIO_SetBits(GPIOB, GPIO_Pin_6)#define OLED_CMD 0
#define OLED_DATA 1void OLED_WR_Byte(unsigned dat, unsigned cmd);
void OLED_Display_On(void);
void OLED_Display_Off(void);
void OLED_Init(void);
void OLED_Clear(void);
void OLED_DrawPoint(unsigned char x, unsigned char y, unsigned char t);
void OLED_Fill(unsigned char x1, unsigned char y1, unsigned char x2, unsigned char y2, unsigned char dot);
void OLED_ShowChar(unsigned char x, unsigned char y, unsigned char chr, unsigned char Char_Size);
void OLED_ShowNum(unsigned char x, unsigned char y, unsigned int num, unsigned char len, unsigned char size);
void OLED_ShowString(unsigned char x, unsigned char y, char *p, unsigned char Char_Size);
void OLED_Set_Pos(unsigned char x, unsigned char y);
void OLED_ShowCHinese(unsigned char x, unsigned char y, unsigned char no);
void OLED_DrawBMP(unsigned char x0, unsigned char y0, unsigned char x1, unsigned char y1, unsigned char BMP[]);
void Delay_50ms(unsigned int Del_50ms);
void Delay_1ms(unsigned int Del_1ms);
void fill_picture(unsigned char fill_Data);
void Picture(void);
void IIC_Start(void);
void IIC_Stop(void);
void Write_IIC_Command(unsigned char IIC_Command);
void Write_IIC_Data(unsigned char IIC_Data);
void Write_IIC_Byte(unsigned char IIC_Byte);
void OLED_ShowDecimal(unsigned char x, unsigned char y, float num);void IIC_Wait_Ack(void);
void OLED_ShowNumber(unsigned char x, unsigned char y, short num);void set_data(unsigned char *dat);
void set_rolling_flag(unsigned char flag);
void set_dispaly_flag(unsigned char flag);
unsigned char get_dispaly_flag(void);
void oled_display(void);
#endif

添加 flash.c 文件，用于保存显示内容到 flash，这样即使电源断开后，再次通电也能显示之前保存的显示内容。代码如下

#include "Flash.h"
#include "w55mh32_flash.h"unsigned char Flash_Write(char *data1, unsigned char data2)
{unsigned char status = 0;unsigned int address = startAddress;unsigned int rolling = data2;char str[100] = "";strcpy(str, data1);FLASH_Unlock();status = FLASH_ErasePage(startAddress);if (FLASH_COMPLETE != status)return status;status = FLASH_ProgramWord(address, rolling);address += 4;if (FLASH_COMPLETE != status)return status;unsigned char i;for (i = 0; i < strlen(str) && (status == FLASH_COMPLETE); i++)
    {status = FLASH_ProgramWord(address, str[i]);address += 4;
    }FLASH_ProgramWord(address, '\0');FLASH_Lock();return 0;
}void Flash_Read(char *str, unsigned char *rolling)
{unsigned int address = startAddress;char temp = ' ';*rolling = (unsigned char)*(__IO uint32_t *)address;address += 4;for (unsigned char i = 0; i < 64; i++)
    {temp = (char)*(__IO uint32_t *)address;if (temp == 0)
        {str[i] = '\0';return;
        }str[i] = temp;address += 4;
    }
}

添加 flash.h 头文件，代码如下

#ifndef _FLASH_H
#define _FLASH_H#include "string.h"#define startAddress ((uint32_t)0x08020000)unsigned char Flash_Write(char *data1, unsigned char data2);
void Flash_Read(char *str, unsigned char *rolling);#endif

修改主函数 main.c，代码如下：

#include "bsp_rcc.h"
#include "bsp_tim.h"
#include "bsp_uart.h"
#include "delay.h"
#include "flash.h"
#include "httpServer.h"
#include "oled.h"
#include "webpage.h"
#include "wiz_interface.h"
#include "wizchip_conf.h"
#include <stdio.h>
#include <stdlib.h>
#include <string.h>#define SOCKET_ID 0
#define ETHERNET_BUF_MAX_SIZE (1024 * 2)/* network information */
wiz_NetInfo default_net_info = {
    .mac = {0x00, 0x10, 0xdc, 0x12, 0x22, 0x12},
    .ip = {192, 168, 1, 30},
    .gw = {192, 168, 1, 1},
    .sn = {255, 255, 255, 0},
    .dns = {8, 8, 8, 8},
    .dhcp = NETINFO_DHCP};static uint8_t ethernet_buf[ETHERNET_BUF_MAX_SIZE] = {0};
static uint8_t http_tx_ethernet_buf[ETHERNET_BUF_MAX_SIZE] = {0};
static uint8_t http_rx_ethernet_buf[ETHERNET_BUF_MAX_SIZE] = {0};
static uint8_t socknumlist[1] = {SOCKET_ID};
int main(void)
{
    char page[2048];
    char str[64] = "asdasdasd";
    unsigned char flag = 0;    wiz_NetInfo net_info;
    /* hardware initialization */
    rcc_clk_config();
    delay_init();
    console_usart_init(115200);    tim3_init();    OLED_Init();    printf("%s HTTP Server example\r\n", _WIZCHIP_ID_);    /* wiztoe init */
    wiz_toe_init();    wiz_phy_link_check();    network_init(ethernet_buf, &default_net_info);    wizchip_getnetinfo(&net_info);
    printf("Please enter% d.% d.% d.% d in your browser to access the %s HTTP server\r\n", net_info.ip[0], net_info.ip[1], net_info.ip[2], net_info.ip[3], _WIZCHIP_ID_);    // 查询flash
    Flash_Read(str, &flag);
    if (str != NULL)
    {
        set_data(str);
        set_rolling_flag(flag);
        set_dispaly_flag(1);
    }    sprintf(page, (char *)index_page, "");    reg_httpServer_webContent((uint8_t *)"index.html", (uint8_t *)page);         // Build HTTP server web pages
    httpServer_init(http_tx_ethernet_buf, http_rx_ethernet_buf, 1, socknumlist); // Initializing the HTTP server
    while (1)
    {
        httpServer_run(SOCKET_ID);        if (get_dispaly_flag())
        {
            oled_display();            set_dispaly_flag(0);
        }
    }
}

5.运行结果

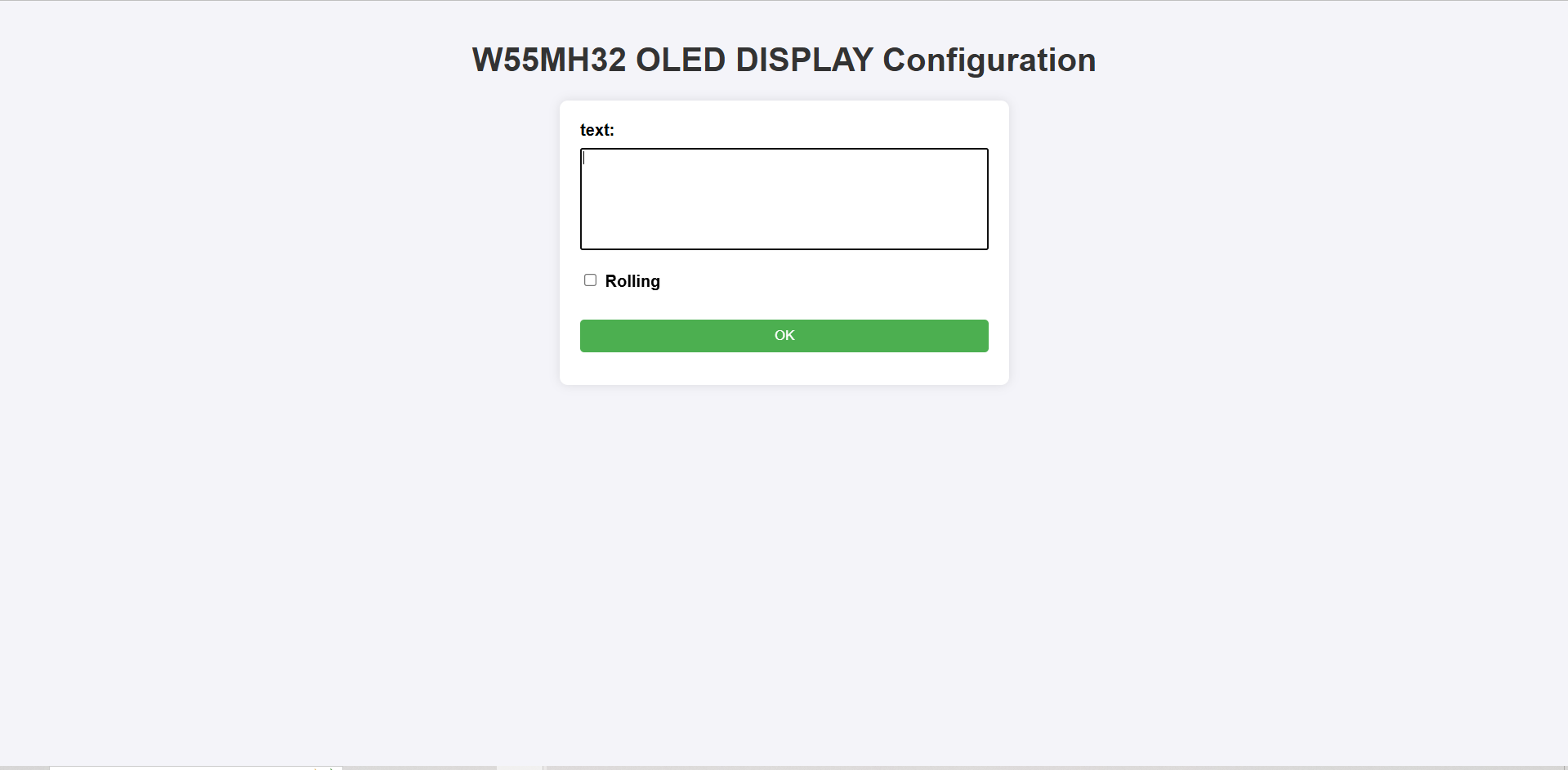

如图为 http 网页,用户可以输入内容，并且可以选择是否滚动显示

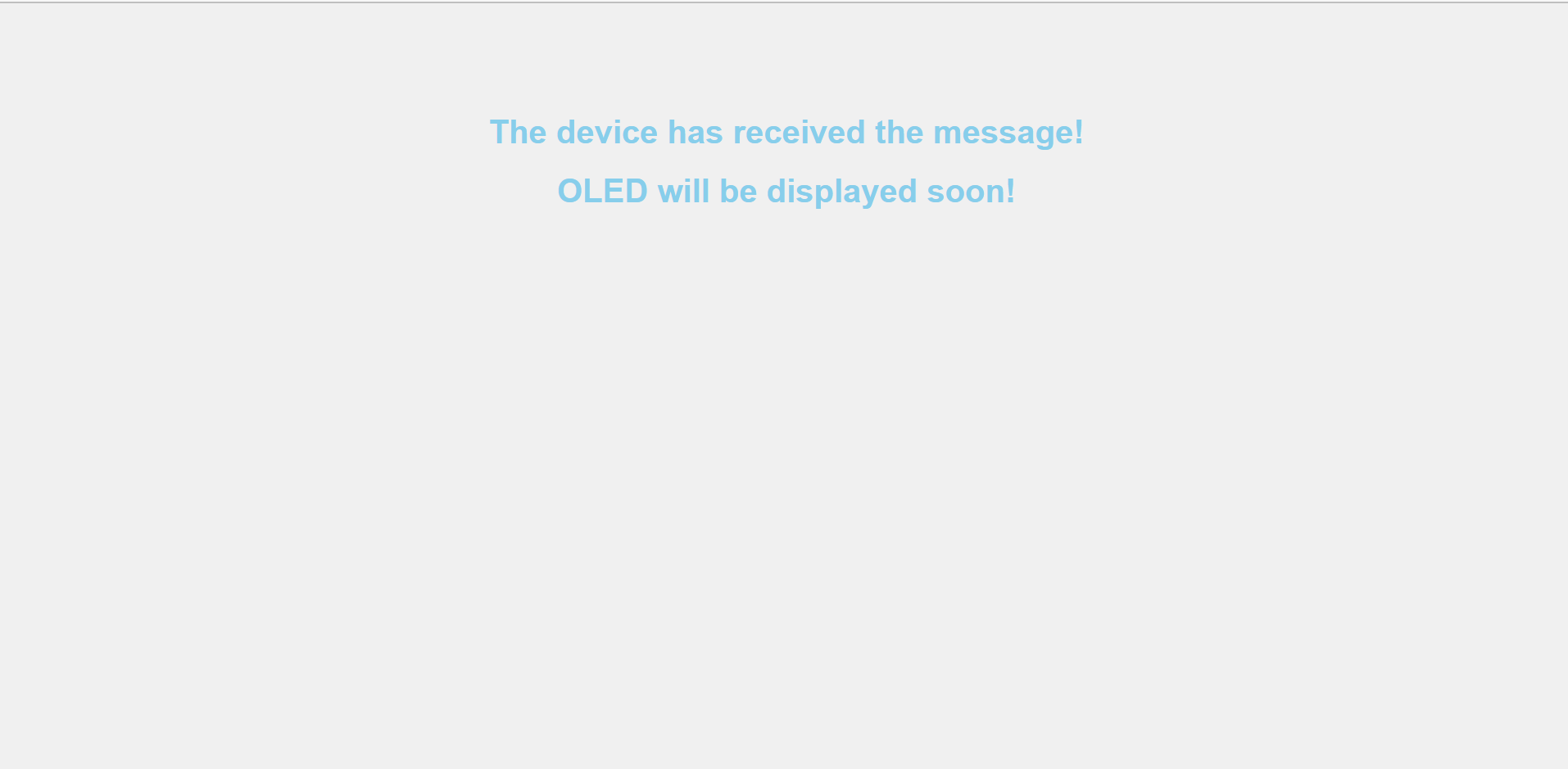

如图为提交后的页面

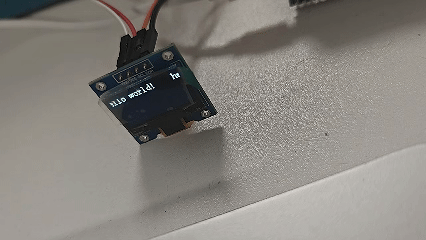

如图为 OLED 显示结果

6.总结

本文详细介绍了如何利用 W55MH32Q-EVB 的 HTTP 功能，通过使用 HTTP 服务器来获取 oled 显示内容，然后将内容显示在 oled 上。感谢大家的耐心阅读！如果您在阅读过程中有任何疑问，或者希望进一步了解这款产品及其应用，欢迎随时通过私信或评论区留言。我们会尽快回复您的消息，为您提供更详细的解答和帮助！
